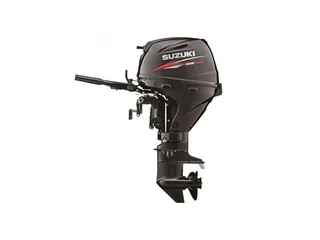

Suzuki 25 HP DF25ATHL Outboard Motor

Clean, Green Technology is built into the Suzuki 25 HP outboard motor. This 4 stroke, battery-less engine delivers a clean fuel efficient powerful performance in the water. You will start fast and accelerate fast. The Suzuki outboard is first in class in both weight and quietness. Suzuki Outboard Motor, model: DF25ATHL is equipped with a 20 inch long shaft and has the push button electric start for convenience. Standard features include a 6 gallon external fuel tank and fuel line, a propeller, a took kit and the Suzuki famous 3 year factory warranty.

Suzuki 25 HP DF25ATHL Outboard Motor

- • Battery-Less Electronic Fuel Injection
- • Easy Start – Recoil Starter
- • Lean Burn Control
- • Over-Rev. Limiter
- • Low Oil Pressure Caution
- • Digital CDI
- • Fresh Water Flushing System
- • Shallow Water Drive
- • Suzuki Anti-Corrosion System

Suzuki 25 HP DF25ATHL Outboard Motor

Model DF25ATHL

Model Year No

SKU DF25ATHL-17

Weight 163.0000

Manufacturer Suzuki

Country of Manufacture Thailand

Horsepower 25hp

Shaft Length 20″ (Long)

Steering Tiller

Starting Electric

Trim & Tilt Power Trim & Tilt

Fuel Delivery EFI

Fuel Tank External

Cylinder(s) 3

Displacement 29.8 (489)

Bore and Stroke 2.80 x 2.68 ()

Full Throttle RPM Range 5000 – 6000

Ignition System Digital CDI

Induction Scavenging SOHC

Valves per Cylinder 4

Fuel Type Unleaded Gasoline (87 octane)

Fuel Tank / Fuel Line No

Oil Type SAE 10W-30 or SAE 10W-40

Oil Capacity 1.6 (1.5)L

Lubrication Wet Sump; Trochoid Type Cam-Driven Oil Pump

Alternator Manual 12V 14A / Electric 12V 14A

Cooling System Water-Cooled

Saltwater Rated YES

Gear Ratio 2.09:1

Gear Shift Forward-Neutral-Reverse (front-mounted lever)

Propeller 3 x 11.25 x 10

Internal Battery No

Suzuki 25 HP DF25ATHL Outboard Motor

What’s in the box?

- 6 gal Fuel Tank
- Fuel Line
- Owner’s Manual
- Aluminum Propeller
- Tool Kit
