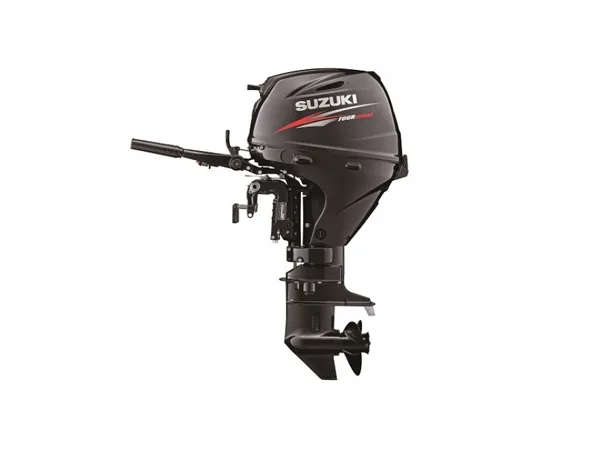

Suzuki 25 HP DF25AES Outboard Motor

The Suzuki 25 HP outboard motor is the most environmentally friendly gas outboard motor on today’s market. This motor is designed to run clean with optimum fuel efficiency. Suzuki 25 HP outboard model DF25AES comes equipped with the short 15 inch shaft, a push button electric start or manual start. This 4 stroke outboard is known for quick starts, fast acceleration and superior gas economy. Standard with this engine is a 6 gallon fuel tank, fuel line, propeller and tool kit and the Suzuki 3 year factory warranty.

Suzuki 25 HP DF25AES Outboard Motor

- Battery-Less Electronic Fuel Injection
- Easy Start – Recoil Starter
- Lean Burn Control
- Over-Rev. Limiter
- Low Oil Pressure Caution
- Digital CDI
- Fresh Water Flushing System
- Shallow Water Drive
- Suzuki Anti-Corrosion System

Suzuki 25 HP DF25AES Outboard Motor

Model DF25AES

Model Year No

SKU DF25AES-17

Weight 143.0000

Manufacturer Suzuki

Country of Manufacture Thailand

Horsepower 25hp

Shaft Length 15″ (Short)

Steering Tiller

Starting Electric

Trim & Tilt Manual

Fuel Delivery EFI

Fuel Tank External

Cylinder(s) 3

Displacement 29.8 (489)

Bore and Stroke 2.80 x 2.68 ()

Full Throttle RPM Range 5000 – 6000

Ignition System Digital CDI

Induction Scavenging SOHC

Valves per Cylinder 4

Fuel Type Unleaded Gasoline (87 octane)

Fuel Tank / Fuel Line No

Oil Type SAE 10W-30 or SAE 10W-40

Oil Capacity 1.6 (1.5)

Lubrication Wet Sump; Trochoid Type Cam-Driven Oil Pump

Alternator Manual 12V 14A / Electric 12V 14A

Cooling System Water-Cooled

Saltwater Rated YES

Gear Ratio 2.09:1

Gear Shift Forward-Neutral-Reverse (front-mounted lever)

Propeller 3 x 10.25 x 11

Internal Battery No

Suzuki 25 HP DF25AES Outboard Motor

What’s in the box?

- 6 gal. Fuel Tank
- Fuel Line
- Owner’s Manual
- Aluminum Propeller
- Tool Kit
