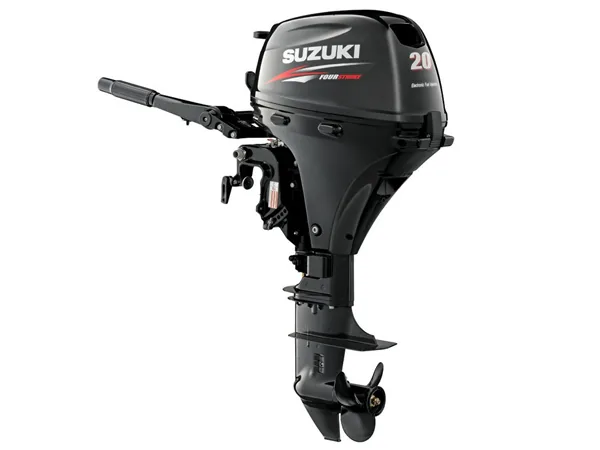

Suzuki 20 HP DF20ATHL2 Outboard Motor

The 20 HP Suzuki outboard model # 20 HP DF20ATHL2 comes with every feature you could want. Equipped with a 20 inch shaft this outboard has electric push button start and with tiller steering and throttle control. Perfect for large or heavy jon boats and skiffs requiring a long shaft as well as auxiliary power for sailboats and trolling/kicker applications. As the lightest outboard in its class and one of the quietest 4-strokes ever built, the Suzuki 20hp outboard engine is a great example of Suzuki’s excellence in engineering.

Suzuki 20 HP DF20ATHL2 Outboard Motor

- Electronic Fuel Injection (EFI)
- Sleek, Compact, Lightweight Design
- Lightest Outboard in 20hp 4-stroke Class
- Saltwater Rated
- Fresh Water Flushing Port
- Multi-Layer Corrosion Protection
- Electric Start + 12V Alternator System
- Thru-Cowling Manual Back-Up Starting
- Forward-Mounted Gear Shift Lever
- Twist-Grip Throttle with Tension Control
- Quiet Through-the-Prop Exhaust
- Start-in-Gear Lockout Protection
- Proven Automotive Style Oil Pump
- Shallow Water Drive
- 5 Trim Positions w/Tilt Lock Pin
- Low Oil Pressure Warning System
- Over Heat Warning System
- Over-Rev Limiter Protection
- Steering Friction Tension Control
- Integrated Carrying Handle
- Emergency Lanyard Stop Switch
- 3.1 US Gallon Fuel Tank / Fuel Line
- 3-Blade Aluminum Propeller
- 3-Star Ultra-Low Emission Rating
- Suzuki’s Lean Burn Control System
- Up to 17% more fuel efficient over
some competitor’s 4-strokes
- Suzuki 3-Year Warranty

Suzuki 20 HP DF20ATHL2 Outboard Motor

Model DF20ATHL2

Model Year No

SKU DF20ATHL2-17

Weight 123.0000

Manufacturer Suzuki

Country of Manufacture Thailand

Horsepower 20hp

Shaft Length 20″ (Long)

Steering Tiller

Starting Electric

Trim & Tilt Power Tilt

Fuel Delivery EFI

Fuel Tank External

Cylinder(s) 2

Displacement 327 cc (20.0 cubic inches)

Bore and Stroke 60.4 x 57 mm (2.38 x 2.24 inches)

Full Throttle RPM Range 5000-6000 RPM

Ignition System Digital CDI

Induction Scavenging SOHC

Valves per Cylinder 2

Fuel Type Unleaded Gasoline (87 octane)

Fuel Tank / Fuel Line INCLUDED: 3.1 Gallon Fuel Tank and Fuel Line

Oil Type SAE 10W-30 or SAE 10W-40

Oil Capacity 33.8 fl oz. (1000 mL)

Lubrication Wet Sump; Trochoid Type Cam-Driven Oil Pump

Alternator 12V 145W 10A

Cooling System Water-Cooled

Saltwater Rated YES

Gear Ratio 2.08:1

Gear Shift Forward-Neutral-Reverse (front-mounted lever)

Propeller 3-Blade Aluminum 10.25″ Dia x 9.0″ Pitch

Internal Battery No

Suzuki 20 HP DF20ATHL2 Outboard Motor

What’s in the box?

- 3.1 gal. Fuel Tank
- Fuel Line
- Owner’s Manual
- Aluminum Propeller
- Tool Kit
- Suzuki 3-Yr Warranty
