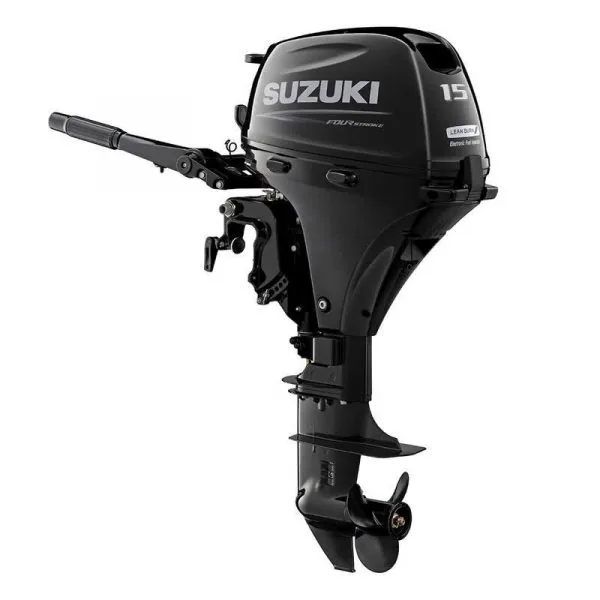

Suzuki 15 HP DF15AES5 Outboard Motor

SPECS

MODEL DF15AES5

WEIGHT 106.0 lb

MANUFACTURER Suzuki

COUNTRY OF MANUFACTURE Thailand

HORSEPOWER 15hp

SHAFT LENGTH 15″ (Short)

STEERING Tiller

STARTING Electric

TRIM & TILT Manual

FUEL DELIVERY EFI

FUEL TANK External

CYLINDER(S) 2

DISPLACEMENT 327 cc (20.0 cubic inches)

BORE AND STROKE 60.4 x 57 mm (2.38 x 2.24 inches)

FULL THROTTLE RPM RANGE 5000-6000 RPM

IGNITION SYSTEM Digital CDI

INDUCTION SCAVENGING SOHC

VALVES PER CYLINDER 2

FUEL TYPE Unleaded Gasoline (87 octane)

FUEL TANK / FUEL LINE INCLUDED: 3.1 Gallon Fuel Tank and Fuel Line

OIL TYPE SAE 10W-30 or SAE 10W-40

OIL CAPACITY Digital CDI

LUBRICATION Wet Sump; Trochoid Type Cam-Driven Oil Pump

ALTERNATOR 12V 145W 12A

COOLING SYSTEM Water-Cooled

SALTWATER RATED Yes

GEAR RATIO 2.08:1

GEAR SHIFT Forward-Neutral-Reverse (front-mounted lever)

PROPELLER 3-Blade Aluminum 9.25″ Dia x 9″ Pitch

IN THE BOX

- 3.1 gal. Fuel Tank
- Fuel Line
- Owner’s Manual
- Aluminum Propeller
- Tool Kit
- Suzuki 5-Yr Warranty
