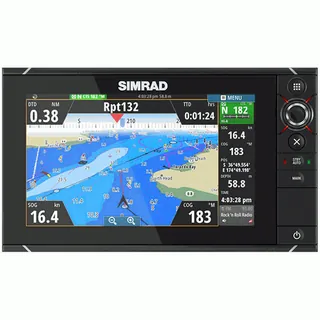

SIMRAD NSS7M EVO2 CHARTPLOTTER/MULTIFUNCTION DISPLAY W/ INSIGHT USA

Simrad NSS7m evo2 Chartplotter/Multifunction Display w/ Insight USA

The Simrad NSS7m evo2 Chartplotter/Multifunction Display combines fit, function, and form in an easy-to-use multifunction device. The integrated NSS evo2 MFD features a sleek display with TouchSensible multi-touch interaction. TouchSensible, provides precision interaction in any sea condition with its logical keypad input and rotary, push-to-enter knob. With its widescreen 16:9 display and expandability the NSS evo2 is well suited for center consoles, sportfishing and power cruising boats.

Mapping Options: Navionics, Insight & Insight Genesis

Simrad NSS7m evo2 Features:

- 16:9 display with pre-set and customizable navigation panels
- TouchSensible interface with multi-touch control and rotary dial with keypad
- Embedded, hi-gain 10Hz GPS/GLONASS antenna
- Simrad performance module integration
- Flush-mount installation and classic black and brushed silver trim panels
- Complete vessel integration
- Intelligent Engineering
- Best in Class Performance
- Full autopilot integration capability
- Networking capability
- Simrad GoFree WiFi integration capability

Tech Specs

- Screen Size: 7”
- Screen Resolution: 800 x 480
- Touchscreen: Yes
- Built-In Sounder: No
- Radar: No

Simrad NSS7m Additional Specifications:

Overview

- Display Size: 7″ (178mm) Widescreen 16:9
- GPS Antenna: 10Hz High Gain built-in GPS

Display

- Backlighting Levels: LED / 1200 nits
- Display Resolution [pixels x pixels]: 800 x 480
- Display Type: WVGA Color TFT LCD

Technical/Environmental

- Operating Temperature:-15°C to 55°C (5°F to 131°F)
- Waterproof Standard/rating: IPx7
- Product Width: 9.09″ / 231mm
- Product Depth: 4.13″ / 105mm
- Product Height: 5.79″ / 147mm

Power

- Power Supply (Supply Voltage): 9-32V DC

Other

- Languages: 31
- Other Features: Waypoint Storage: 10,000 points total combined waypoints / route points
