Drivers battle worn lift bolts, rocker arm galling, and scored cylinder sleeves before installing this high-revving Toyota Celica 2ZZGE Remanufactured Engine. Each 1.8L 4-Cylinder 16-Valve DOHC long block features diamond-surfaced aluminum decks and upgraded high-RPM valvetrain components. Technicians must perform pressurized oil priming prior to initial cranking and execute an exact 500-mile break-in oil change to protect the VVTL-i lift mechanism.

Manufactured with aluminum block casting 2ZZ marked on the right rear deck above the bellhousing, this engine block features metal matrix composite cylinder liners align-honed for bore concentricity. The rotating foundation features a micro-polished forged steel crankshaft, forged connecting rods, and high-compression hypereutectic pistons. The Yamaha-designed DOHC 16-Valve cylinder head receives CNC valve seat cutting. Dry weight measures 250 lbs inside crated dimensions of 36in length by 36in width by 36in height. Sump capacity totals 4.6 quarts.

Key Features of Toyota 2ZZGE

Performance enthusiasts and automotive technicians buy Toyota 2ZZGE remanufactured engine long blocks to restore high-RPM variable valve lift and eliminate oil burning. This long block replacement provides factory-matched machine tolerances for front-wheel-drive sports liftbacks and hot hatches.

- Yamaha-designed DOHC cylinder head features variable valve timing and lift with new hardened lift rocker bolts.
- Right-side engine block casting features factory threaded bosses to mount the intermediate driveshaft center bearing.

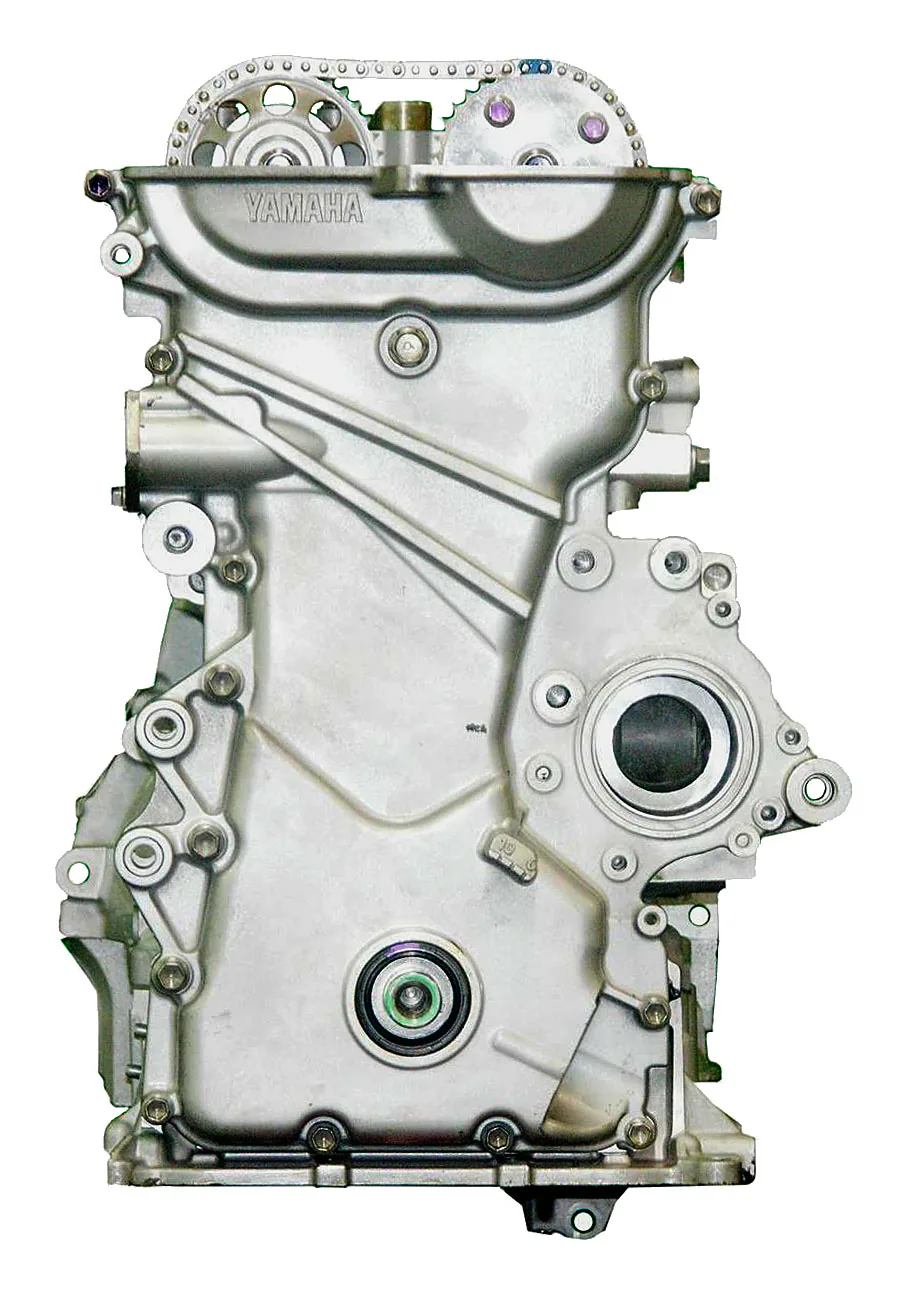

- Pre-installed front timing cover and chain drive ensure accurate camshaft timing synchronization.
- Metal matrix composite cylinder sleeves undergo specialized diamond plateau honing to establish an Ra 12 finish.
- Micro-polished crankshaft journals eliminate runout to protect high-RPM bi-metal rod bearings under load.
- Multi-layer steel head gaskets ensure combustion chamber seal integrity past 8,000 RPM redline operation.
- Align-honed main bearing saddles preserve circularity to support uniform hydrodynamic bearing oil films.

Dyno Load Operational Tolerances Specifications

Dyno cell spin testing verifies mechanical oil gallery pressurization and power output prior to crate packaging. The 1.8L 1795cc DOHC VVTL-i engine produces 180 HP at 7,600 RPM and 130 ft-lbs of shaft torque at 6,800 RPM. Crankshaft main journal oil clearance holds between 0.0010in and 0.0014in, while connecting rod clearance measures 0.0011in to 0.0014in. Individual cylinder compression gauges verify 195 PSI across all 4 cylinders. Hot engine oil pressure maintains 60 PSI at 3,000 RPM with regulated coolant operating temperatures steady at 190°F.

Vehicle Fitment Drivetrain Guide

This long block fits 2000 to 2003 Toyota Celica GTS, 2003 Toyota Matrix XRS, and 2003 Pontiac Vibe GT models carrying VIN Code L with block casting 2ZZ and right-side driveshaft bearing bosses. Compatible drivetrains include front-wheel drive paired with a C60 6-Speed manual transaxle or 4-Speed automatic. This unit does not fit standard 1ZZ-FE Matrix or Celica GT models, Corolla 1.8L non-lift platforms, or MR2 Spyder chassis lacking right-side driveshaft center bearing provisions.

Installation Protocol Service Requirements

Technicians must clean the lift oil control valve filter screen, inspect oil pump gear clearances, and torque intermediate axle bracket bolts during installation. Operational warnings restrict deployment in custom turbo conversions exceeding 6 PSI boost on stock 11.5:1 compression pistons or road racing vehicles lacking baffled oil pans.

- Pre-fill the spin-on oil filter and prime the lubrication circuit with 5W-30 synthetic motor oil.
- Drain initial break-in oil and install a replacement oil filter at the 500-mile service point.
- Inspect variable valve lift oil pressure switches and check timing cover seals at 1,500 miles.

Warranty Terms Core Return Policy

This long block carries our standard 3-Year Unlimited-Mile warranty for reliable high-RPM road service. We provide free prepaid return freight shipping for your depleted rebuildable core engine within a standard 30-day window. The crated assembly contains the remanufactured long block, complete timing drive, oil pan, and valve cover.
