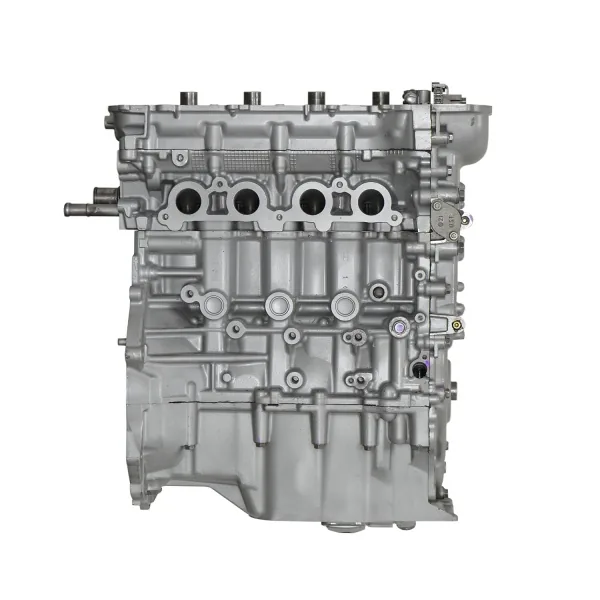

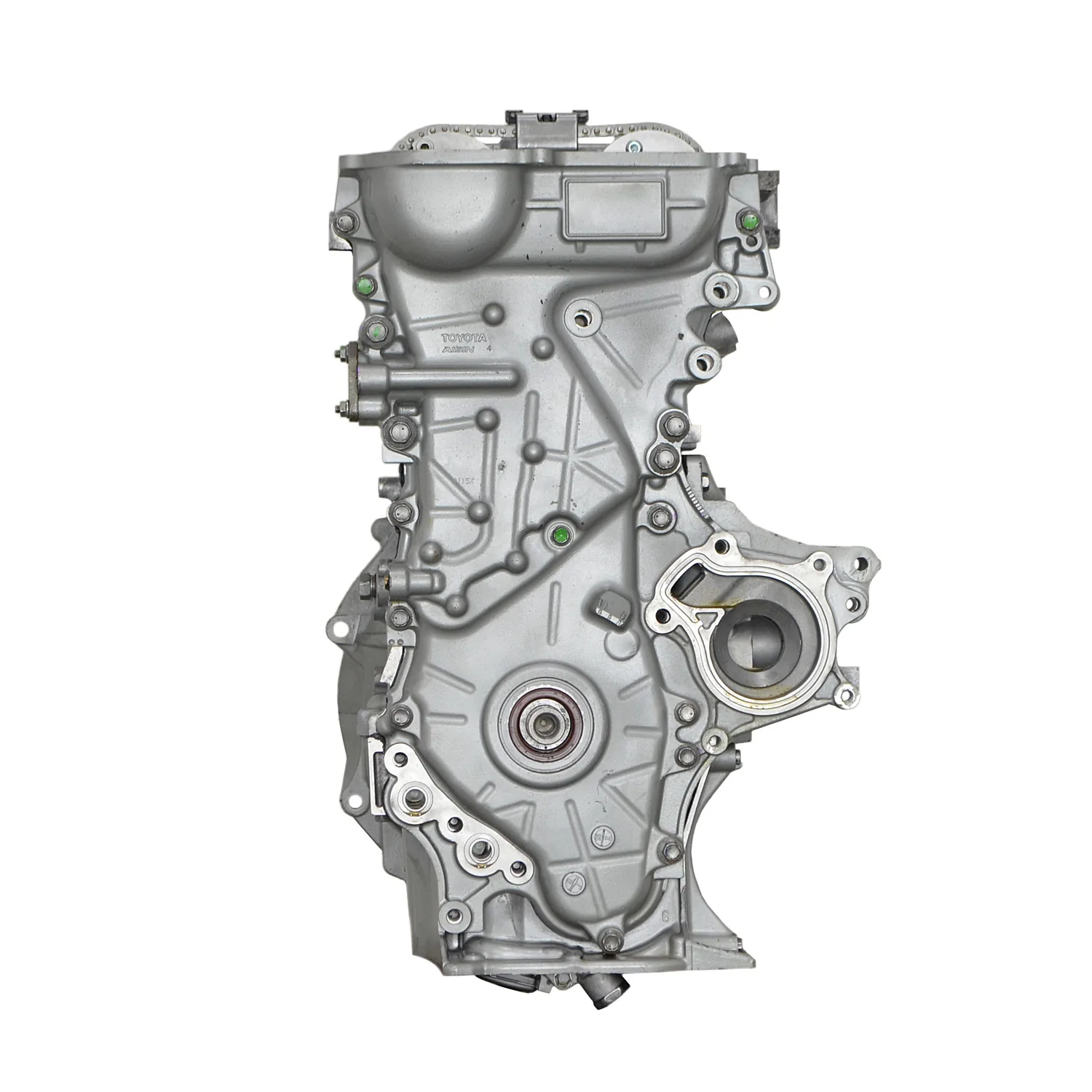

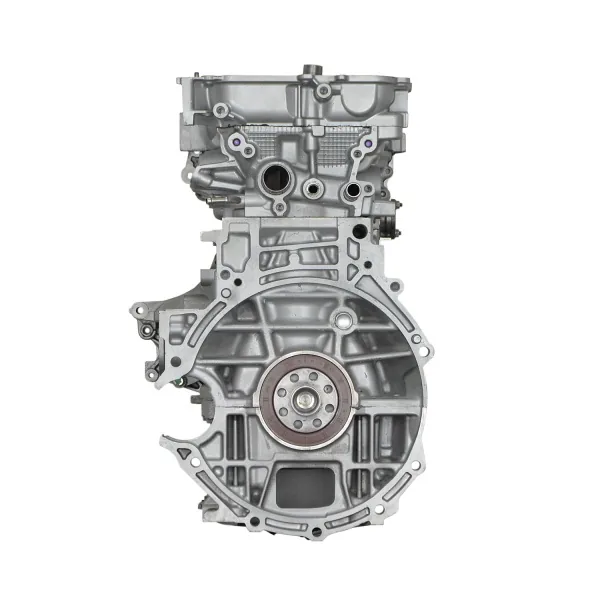

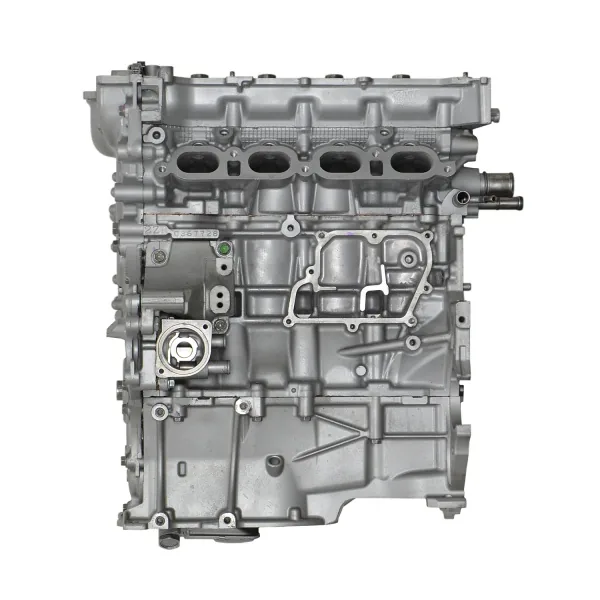

Water pump mechanical seal seepage and timing chain tensioner gasket weeping cause progressive coolant loss on compact fleet vehicles. The Pontiac Toyota 2ZR-FE Engine eliminates these cooling and oil loss failure points during commercial long block repower procedures. Generating 132HP, this 1.8L 4-Cylinder engine requires verified intake manifold flange torque to prevent cold vacuum leaks.

Structural ASTM A356-T6 cast aluminum forms both the open-deck cylinder block and 16-valve cylinder head. This Pontiac Toyota engine core integrates an induction-hardened forged steel crankshaft supported by tri-metal bearings and stellite faced exhaust valves. Starter draw pulls 135A at 12V across repeated cold crank bench verification. The dry long block weighs 210 lbs with external proportions of 36in length, 36in width, 36in height, operating with a 4.4 quarts oil capacity.

Key Features of Pontiac Toyota 2ZR-FE

Fleet mechanics buy Pontiac Toyota 2ZR-FE commercial long block engines to resolve oil consumption issues during industrial engine rebuild cycles. High speed CNC honing plates true each cylinder bore to eliminate piston ring blowby under continuous commercial service.

- Dual variable valve timing gears optimize intake and exhaust camshaft phasing for maximum fuel economy.
- Block casting marked 2ZR above the front water pump confirms authentic factory casting dimensions.
- Aluminum DOHC 16-Valve cylinder head utilizes revised valve stem seals to prevent manifold oil drawdown.
- Upgraded oil control piston rings eliminate carbon packing and oil burning under extended route service.
- The 2ZR-FE commercial core features a high volume internal gerotor oil pump for instant cam phaser pressure.
- Precision ground crankshaft journals reduce friction loss across high load operational thresholds.
- Multi layer steel head gaskets maintain combustion seal across aluminum deck mating surfaces.
- Roller rocker arms with hydraulic lash adjusters provide maintenance free valvetrain clearance.

Dynamometer Output Tolerance Standards

Dynamometer bench runs document 132HP at 6000 RPM and 128 ft-lbs torque at 4400 RPM under continuous testing schedules. Lubrication gallery pressure measures 50 PSI across an oil sump temp operating window of 190°F to 205°F. Cylinder compression maintains 185 PSI across all four cylinders with total variance restricted below 4%. Crankshaft main journal runout checks confirm less than 0.0003in TIR. This 2ZR-FE long block engine maintains exhaust gas temp readouts below 1280°F during continuous high load bench evaluations.

Chassis Application Platform Matrix

Direct replacement fitment covers 2009 to 2010 Pontiac Vibe, 2009 to 2014 Toyota Matrix, and 2009 to 2019 Toyota Corolla models. This assembly interfaces direct with factory front wheel drive 5-speed manual transaxles or 4-speed automatic gearboxes, retaining all factory engine mount brackets, accessory brackets, and radiator hose connections without chassis modifications.

Field Installation Maintenance Protocols

Electronic drive by wire throttle controls require proper recalibration procedures following battery connection. Technicians must note this engine is NOT engineered for 2.4L 2AZ-FE Vibe and Matrix models, Valvematic 2ZR-FAE Corolla Eco platforms, or hybrid applications due to significant electronic sensor, intake manifold, and camshaft actuator differences.

- Drain initial break-in petroleum motor oil after the first 500 miles or 20 hours.
- Inspect hydraulic chain tensioner release latch engagement before initial manual engine rotation.
- Fill the oil filter housing with clean motor oil prior to first shop startup.

Warranty Protection Crate Manifest

Backed by a comprehensive 3-Year 100,000-mile parts warranty, this rebuild fulfills every rigorous Pontiac Toyota assembly standard specification. The heavy duty wooden shipping crate contains the long block core, aluminum oil pan, front timing cover, valve cover, oil pickup tube, and signed dynamometer test documentation.
