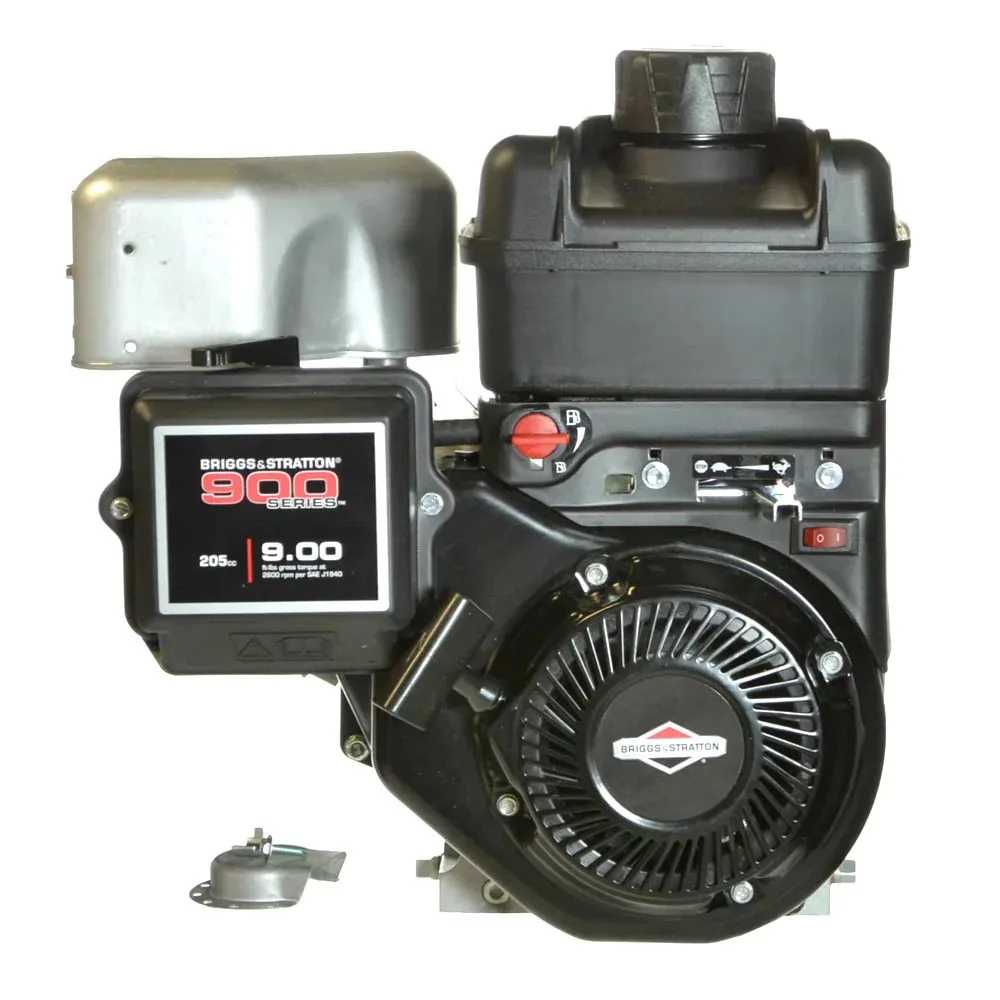

NEW Briggs & Stratton Horizontal Engine – 12S402-0028-F8 SALE !!

NEW Briggs & Stratton Horizontal Engine – 12S402-0028-F8 SALE !! is 205cc and puts out 9.0 gross torque. The single-cylinder OHV engine has a tapered 2-23/32″-length crankshaft. This engine model has a recoil starter and is equipped with a muffler. Briggs & Stratton 900 Series engines are designed to deliver maximum power and feature durable components for an extended life. Common applications for this engine include tillers, compressors, pressure washers and more. Buyer protection package provides a two-year limited consumer warranty. 50-State CARB Compliant. All engines purchased from us ship for free and are foam packed for added protection during transit.

Key Specifications

BRAND Briggs & Stratton

MODEL NUMBER 12S402-0028-F8

REPLACES MODELS 110402-0218-E1, 110412-0158-E1, 110412-0217-E1, 120212-0129-B8, 120212-0354-B1, 120212-0354-B8, 120212-0354-E1, 120212-0360-B1, 120212-0360-B8, 120212-0360-E1, 120212-0528-B8, 120312-0158-B1, 120312-0158-B8, 120312-0158-E1, 120312-0321-B1, 120312-0321-B8, 120312-0321-E1, 121212-0110-B1, 121212-0110-B8, 121212-0110-E1, 121312-0028-B1, 121312-0028-B8, 121312-0028-E1, 121312-0114-B1, 121312-0114-B8, 121312-0114-E1, 121312-0125-B1, 121312-0125-B8, 121312-0125-E1, 121312-0145-B1, 121312-0145-B2, 121312-0145-B8, 121312-0145-E1, 121312-0145-E2, 121312-0280-B1, 121312-0280-B8, 121312-0280-E1, 121312-0322-B1, 121312-0322-B2, 121312-0322-B8, 121312-0322-E1, 121312-0322-E2, 121312-0355-B1, 121312-0355-B8, 121312-0528-B8, 121412-0145-E1, 121412-0145-E2, 121432-0123-E1, 122012-0116-B1, 122012-0116-B8, 122012-0116-E1, 122012-0136-B8, 122012-0140-B8, 122012-0416-B1, 122012-0416-B8, 122012-0416-E1, 122012-0528-B8, 121A12-0028, 12S402-0028, 12S402-0028-F8, 122012-0528, 122012-0528-B1

WARRANTY 2 Year Consumer / 1 Year Commercial

SHIPPING WEIGHT 41

DISPLACEMENT 205cc

STARTER TYPE Recoil

CRANKSHAFT ORIENTATION Horizontal

CRANKSHAFT TYPE Tapered

FUEL SYSTEM Gasoline

GEAR REDUCTION No

CRANKSHAFT DIMENSIONS 7/8″ x 2-23/32″

CRANKSHAFT LENGTH 2-23/32″

CRANKSHAFT END TAPPED SIZE 3/8 – 24

CRANKSHAFT ROTATION DIRECTION (FROM PTO SIDE) Counterclockwise

BEARING TYPE Flange Mount Plain with Oil Seal & Pilot

CYLINDERS 1

CYLINDER BORE TYPE Cast Iron Sleeve

AIR CLEANER TYPE Ultra Low Mount Panel, Dual Element

FUEL TANK Yes

FUEL PUMP No

OIL COOLER No

OIL CAPACITY 20

LOW OIL ALERT No

LOW OIL SHUTDOWN No

IGNITION SYSTEM Electronic

CARBURETOR TYPE Float

CHOKE CONTROL Manual

MAX RPM 3600

CHARGING SYSTEM None

BOLT CIRCLE 3-5/8″

FLYWHEEL Heavy

NOTES Engine Notes:

PTO HEIGHT 4 – 11/64
