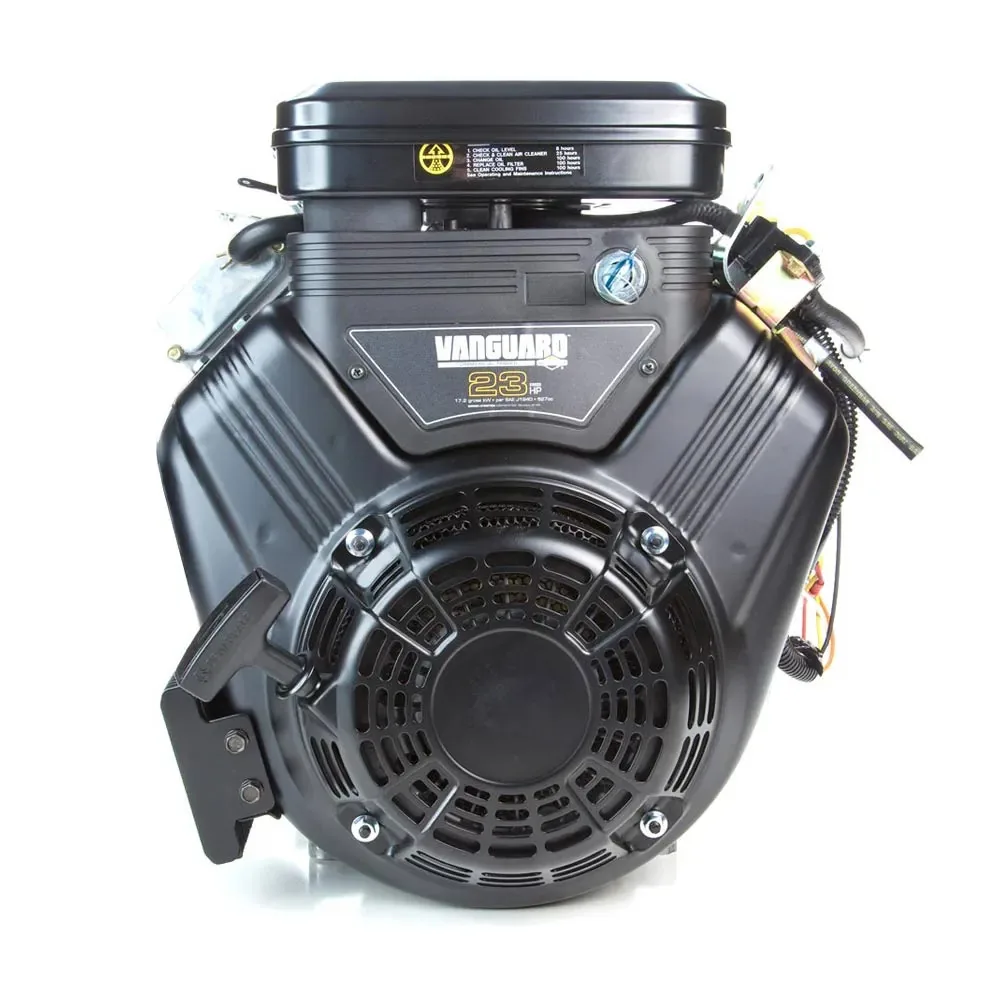

NEW Briggs & Stratton 386447-3077-G1 Horizontal Engine SALE !!

NEW Briggs & Stratton 386447-3077-G1 Horizontal Engine SALE !! is 627cc and puts out 23.0 HP (maximum horsepower). This V-Twin Vanguard has a 1″ x 3-1/4″ threaded 1-14 crankshaft. Briggs & Stratton Vanguard engines feature durable components such as full pressure lubrication for extended life, OHV design for cooler operation and a float carburetor for easy starting. Common applications include golf/turf equipment, commercial mowers, power packs/generators and more. Buyer protection package provides three-year limited consumer engine warranty. 50-State CARB Compliant. All engines purchased from us ship for free and are foam packed for added protection during transit.

Key Specifications

BRAND Briggs & Stratton

MODEL NUMBER 386447-3077-G1

REPLACES MODELS 386447-0140-E1, 386447-0077-E1, 381447-0274-E1, 381447-0271-E1, 381447-0077-E1, 380447-0134-E1, 380447-0077-E1, 380447-0076-E1, 386447-0077-01, 386447-0077-E1, 386447-0077-E2, 386447-0077-E3, 386447-0077-E4, 386447-0077-E9, 386447-0077-B1, 386447-0077-B2, 386447-0077-B3, 386447-0077-B9, 386447-0077-02, 386447-0077-E7, 386447-0140-E1, 386447-0077-E1, 381447-0274-E1, 381447-0271-E1, 381447-0077-E1, 380447-0134-E1, 380447-0077-E1, 380447-0076-E1

WARRANTY 3 Year Consumer & Commercial

SHIPPING WEIGHT 98

DISPLACEMENT 627cc

STARTER TYPE Electric with Recoil Backup

CRANKSHAFT ORIENTATION Horizontal

CRANKSHAFT TYPE Threaded

FUEL SYSTEM Gasoline

GEAR REDUCTION No

CRANKSHAFT DIMENSIONS 1″ x 3-21/32″

CRANKSHAFT LENGTH 3-21/32″

CRANKSHAFT END TAPPED SIZE N/A

CRANKSHAFT ROTATION DIRECTION (FROM PTO SIDE) Counterclockwise

BEARING TYPE Ball

CYLINDERS 2

CYLINDER BORE TYPE Cast Iron Sleeve

AIR CLEANER TYPE Dual Element

FUEL TANK No

FUEL PUMP Yes

OIL COOLER Yes

OIL CAPACITY 48

LOW OIL ALERT Yes

LOW OIL SHUTDOWN No

IGNITION SYSTEM Electronic

CARBURETOR TYPE Float

CHOKE CONTROL Manual and Remote

MAX RPM 3600

CHARGING SYSTEM 16

BOLT CIRCLE 5, 6-1/2, 7-3/4

FLYWHEEL Heavy

NOTES Engine Notes:

PTO HEIGHT 5 – 1/4
