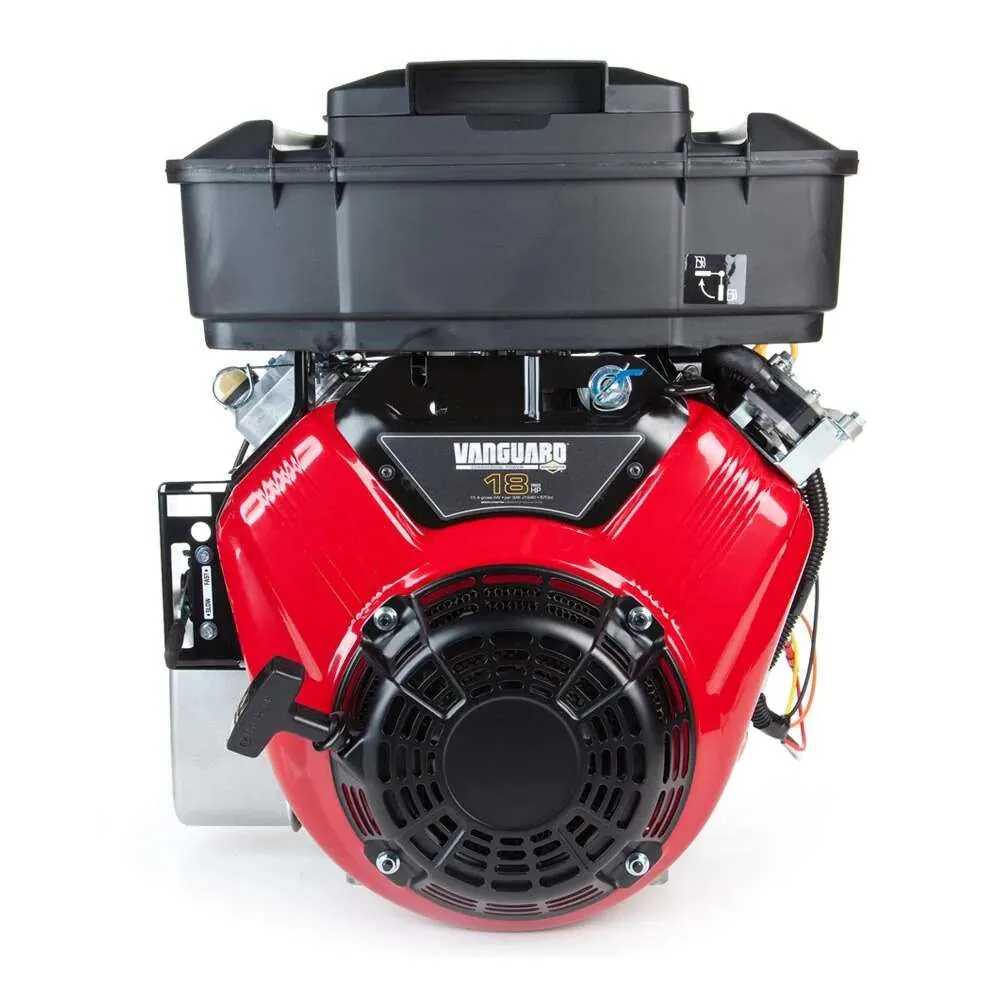

NEW Briggs & Stratton 356447-0596-F1 Horizontal Engine SALE !!

NEW Briggs & Stratton 356447-0596-F1 Horizontal Engine SALE !! is 570cc and puts out 18.0 HP (maximum horsepower). This V-Twin Vanguard has a 1″ x 3″ crankshaft with a 1/4″ keyway. Briggs & Stratton Vanguard engines feature durable components such as float carburetors, full pressure lubrication and OHV design to provide reliable power in tough conditions while remaining compact and lightweight. Common applications include golf/turf equipment, power packs/generators, commercial mowers and more. Buyer protection package provides three-year limited consumer engine warranty. 50-State CARB Compliant. All engines purchased from us ship for free and are foam packed for added protection during transit.

Key Specifications

BRAND Briggs & Stratton

MODEL NUMBER 356447-0596-F1

REPLACES MODELS 356447-0180-E9, 356447-0180-E1, 356447-0180-B1, 356447-0096-E9, 356447-0096-E1, 356447-0096-B1, 350447-1400-E9, 350447-1400-E1, 350447-1396-E9, 350447-1396-E1, 350447-1300-E9, 350447-1300-E1, 350447-1296-E1, 350447-1292-E9, 350447-1292-E1, 350447-1289-E9, 350447-1289-E1, 350447-1288-E9, 350447-1288-E1, 350447-1269-E9, 350447-1269-E1, 350447-1255-E1, 350447-1254-E1, 350447-1250-E9, 350447-1250-E2, 350447-1250-E1, 350447-1237-E1, 350447-1234-E1, 350447-1234-A1, 350447-1233-E1, 350447-1233-A1, 350447-1220-E1, 350447-1220-A1, 350447-1203-A1, 350447-1201-E1, 350447-1196-A1, 350447-1190-E1, 350447-1190-A1, 350447-1188-A1, 350447-1185-E9, 350447-1185-E1, 350447-1185-A1, 350447-1183-E2, 350447-1183-A2, 350447-1175-A1, 350447-1155-A1, 350447-1147-A1, 350447-1146-A1, 350447-1127-A1, 350447-1126-A1, 350447-1125-E9, 350447-1125-E1, 350447-1125-A1, 350447-1096-E9, 350447-1096-E2, 350447-1096-E1, 350447-1096-A1, 350447-1085-E9, 350447-1085-E1, 350447-1085-A1, 350447-1076-E1, 350447-1076-A1, 350447-1066-E9, 350447-1066-E2, 350447-1066-E1, 350447-1066-A2, 350447-1066-A1, 350447-1058-A1, 350447-1027-A1, 350447-1006-A1, 350447-0155-01, 350447-0147-01, 350447-0146-01, 350447-0125-01, 350447-0123-02, 350447-0123-01, 350447-0076-01, 350447-0068-02, 350447-0068-01, 350447-0058-01, 350447-0055-01, 350447-0027-01, 350447-0008-01, 350447-0006-01, 356447-0096-B1, 356447-0096-E1, 356447-0096-E9

WARRANTY 3 Year Consumer & Commercial

SHIPPING WEIGHT 105

DISPLACEMENT 570cc

STARTER TYPE Electric with Recoil Backup

CRANKSHAFT ORIENTATION Horizontal

CRANKSHAFT TYPE Straight

FUEL SYSTEM Gasoline

GEAR REDUCTION No

CRANKSHAFT DIMENSIONS 1″ x 2-29/32″

CRANKSHAFT DIAMETER 1″

CRANKSHAFT LENGTH 2-29/32″

CRANKSHAFT END TAPPED SIZE 3/8 – 24

CRANKSHAFT ROTATION DIRECTION (FROM PTO SIDE) Counterclockwise

BEARING TYPE Ball

CYLINDERS 2

CYLINDER BORE TYPE Cast Iron Sleeve

AIR CLEANER TYPE Dual Element

FUEL TANK Yes

FUEL PUMP Yes

OIL COOLER No

OIL CAPACITY 48

LOW OIL ALERT Yes

LOW OIL SHUTDOWN No

IGNITION SYSTEM Electronic

CARBURETOR TYPE Float

CHOKE CONTROL Manual and Remote

MAX RPM 3600

CHARGING SYSTEM 16

MUFFLER INCLUDED Yes

BOLT CIRCLE 5, 6-1/2, 7-3/4

FLYWHEEL Heavy

NOTES Engine Notes:

PTO HEIGHT 5 – 1/4
