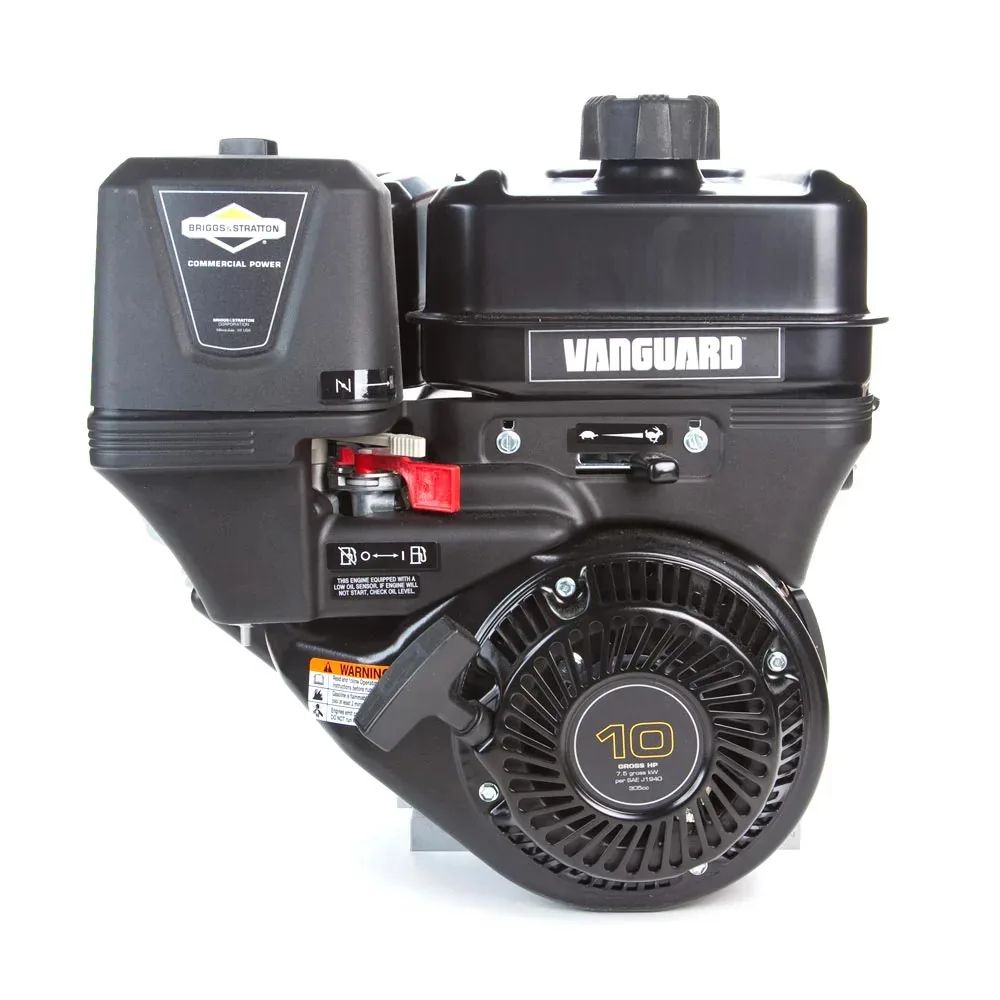

NEW Briggs & Stratton 19L232-0037-F1 Horizontal Engine SALE !!

NEW Briggs & Stratton 19L232-0037-F1 Horizontal Engine SALE !! is 305cc and puts out 10.0 HP (maximum horsepower). This single-cylinder Vanguard has a 1″ x 3-21/32″ crankshaft with a 1/4″ keyway. Briggs & Stratton Vanguard engines are made to operate under the most challenging conditions – the TransportGuard fuel/ignition shut-off system provides added protection, a commercial-style carburetor supports reliable starting and a metal fuel tank helps reduce emissions. Common applications include concrete equipment, blowers, generators, tillers, pumps, pressure washers and more. Buyer protection package provides three-year limited consumer engine warranty. 50-State CARB Compliant. All engines purchased from us ship for free and are foam packed for added protection during transit.

Key Specifications

BRAND Briggs & Stratton

MODEL NUMBER 19L232-0037-F1

WARRANTY 3 Year Consumer & Commercial

SHIPPING WEIGHT 66

DISPLACEMENT 305cc

STARTER TYPE Recoil

CRANKSHAFT ORIENTATION Horizontal

CRANKSHAFT TYPE Straight

FUEL SYSTEM Gasoline

GEAR REDUCTION No

CRANKSHAFT DIMENSIONS 1″ x 3-21/32″

CRANKSHAFT LENGTH 3-21/32″

CRANKSHAFT END TAPPED SIZE 7/16 – 20

CRANKSHAFT ROTATION DIRECTION (FROM PTO SIDE) Counterclockwise

BEARING TYPE Dual Ball

CYLINDERS 1

CYLINDER BORE TYPE Cast Iron Sleeve

AIR CLEANER TYPE Cartridge with Pre Filter

FUEL TANK Yes

FUEL PUMP No

OIL COOLER No

OIL CAPACITY 28

LOW OIL ALERT Yes

LOW OIL SHUTDOWN No

IGNITION SYSTEM Electronic

CARBURETOR TYPE Float

CHOKE CONTROL Manual

MAX RPM 3600

CHARGING SYSTEM None

BOLT CIRCLE 3-5/8″, 5, 6-1/2

FLYWHEEL Heavy

NOTES Engine Notes:

PTO HEIGHT 4 – 11/64
