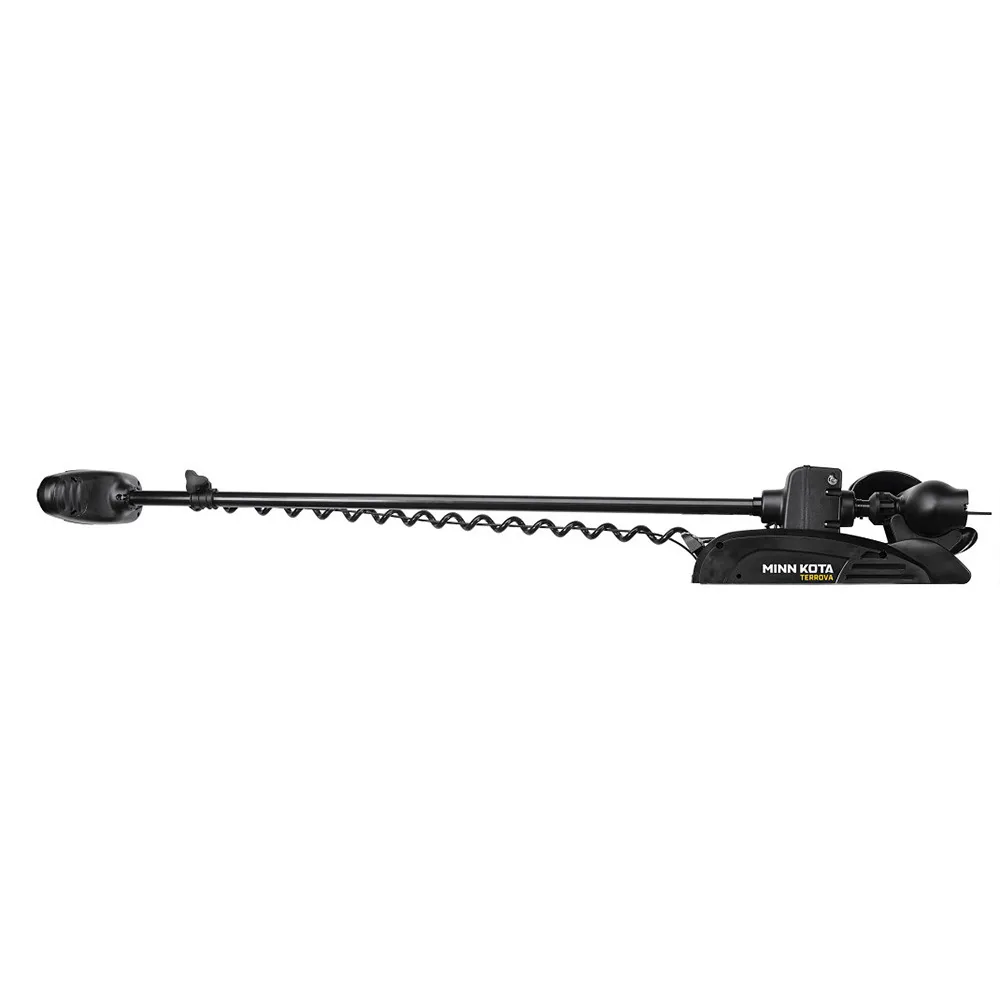

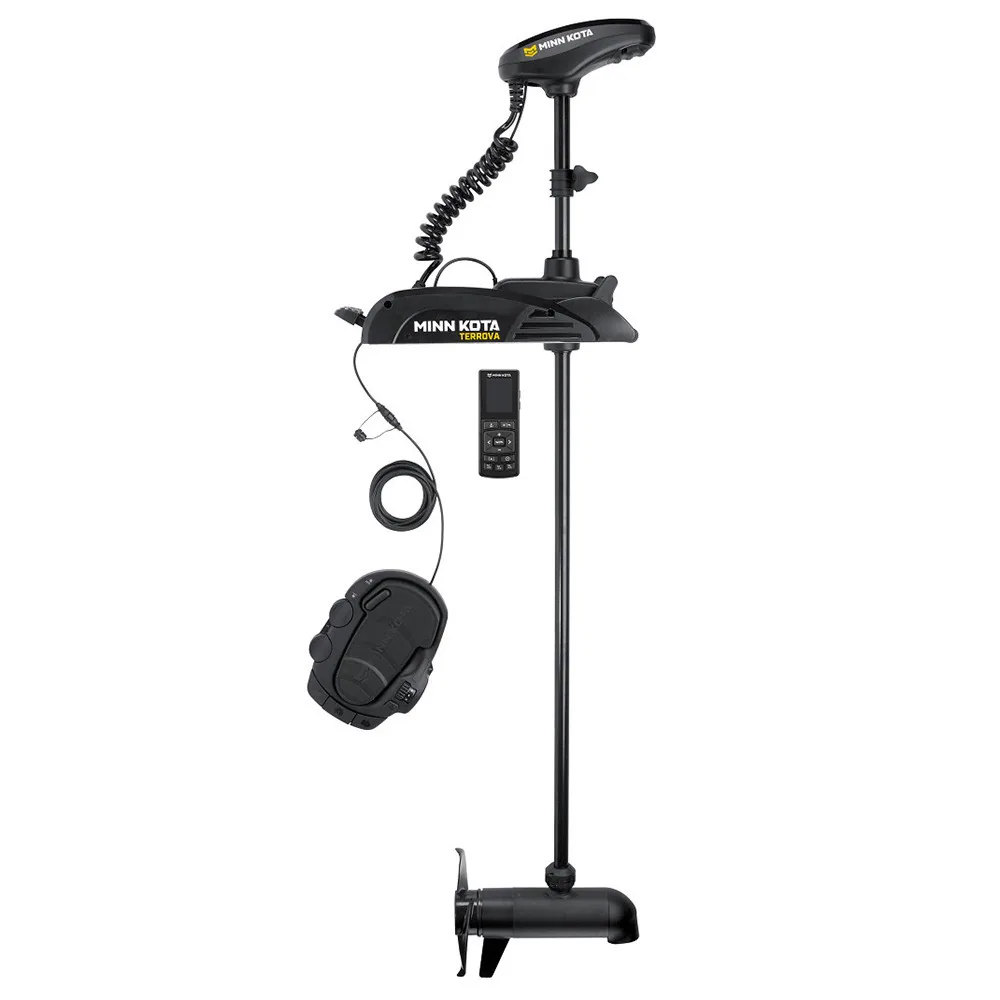

Minn Kota Terrova 80 Trolling Motor

Sustain twenty continuous tournament hours using the Minn Kota Terrova 80 Trolling Motor, engineered with digital power management for multi-species walleye hulls and tournament bass rigs. Supplying 80 lbs of thrust on a clean 24V DC electrical architecture, this 60-inch motor powers forward casting decks through rough reservoir chop without battery drain.

An extruded aluminum scissor mount provides structural rigidity under heavy wave slap, supporting an indestructible composite shaft that flexes upon rock impact rather than shearing. The fully encapsulated lower unit utilizes high-grade copper windings and a digital pulse-width modulation speed control board. Weighing 48 lbs dry, this 24V motor demands a maximum continuous current draw of 56A across a stowed foredeck boundary measuring 72 inches long by 11 inches wide.

Key Features of Minn Kota Terrova 80

Tournament anglers who buy Minn Kota Terrova 80 trolling motor units secure pro-grade boat control for freshwater bass boat rigging. Advanced digital control boards moderate battery energy draw, extending on-water fishing endurance through long championship rounds.

- 80 lbs of peak thrust controls multi-species deep-V hulls against stiff lake currents and sustained 20-knot winds.
- 60-inch indestructible composite shaft flexes upon underwater timber impact to prevent lower unit fractures.
- 24V DC operating system maximizes electrical efficiency while drawing only 56A at wide open throttle.
- Spot-Lock GPS virtual anchor locks vessel positions within feet using real-time satellite position correction.
- Terrova 80 tournament bow mount platform incorporates an i-Pilot wireless remote control with an illuminated screen.
- Digital Maximizer speed modulation delivers variable speed selection while extending battery runtime fivefold.
- Weedless Wedge 2 prop utilizes swept-back blades to chop dense hydrilla and milfoil without motor stall.
- Lift-assist stow mechanism cuts physical deployment force in half using internal nitrogen gas springs.

Thrust Curves Battery Amp Draw

Generating 80 lbs of static thrust at wide open throttle, this motor consumes 56A under maximum load while maintaining thermal stability on internal digital driver boards. Connecting this unit to two 12V 100Ah lithium iron phosphate batteries delivers over 14 hours of continuous fishing operation at 50 percent throttle. The high-torque motor pod slices through dense weed beds without tripping inline breakers, maintaining acoustic sound output below 38 dB(A).

Bow Deck Installation Geometry Clearances

Secure the extruded aluminum base to the forward boat deck using six marine-grade stainless steel machine bolts, allowing 4 inches of forward overhang past the rubrail. Ensure seamless connection to a 60A waterproof manual-reset marine circuit breaker using 6 AWG tinned marine copper wire. The quick-release bracket accepts standard composite mounting pucks.

Deck Usability Rigging Inspection Tasks

Deploying the motor requires pressing the ergonomic master release lever and guiding the composite shaft down into locked position with minimal effort. This 60-inch bow-mount trolling motor is not engineered for deep-draft ocean commercial vessels, high-speed pontoon houseboats, or boats with bow freeboards exceeding 35 inches.

- Inspect the propeller shear pin and clean weed wrap behind the prop drive hub after each outing.
- Rinse the composite shaft, mount hinges, and steering housing with freshwater after each outing.
- Inspect all battery terminal nuts and verify 60A circuit breaker contacts every 50 runtime hours.

Manufacturer Warranty Factory Package Manifest

Minn Kota backs this motor with a 2-Year limited warranty paired with a lifetime composite shaft guarantee. The factory package contains the Minn Kota Terrova 80 core, Weedless Wedge 2 propeller, wireless remote control, heading sensor puck, mounting hardware kit, and quick-start reference guide.
