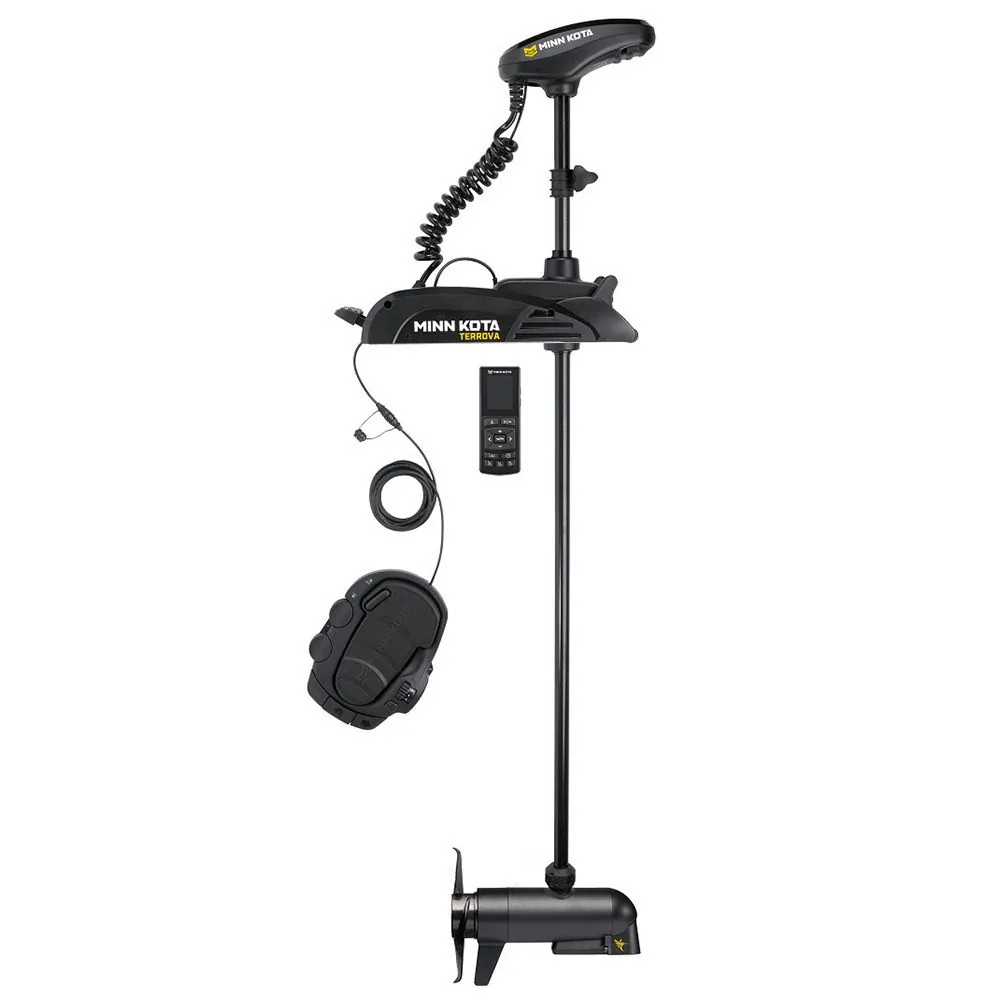

Minn Kota Terrova 112 Trolling Motor

Hold multi-species deep-V hulls on structure with the Minn Kota Terrova 112 Trolling Motor, delivering massive 36V electrical propulsion for professional walleye and bass tournament competitors. Producing 112 lbs of thrust on an extended 72-inch composite shaft, this bow-mount motor locks heavy boats over offshore humps through wind and wave chop without anchor ropes.

An extruded aluminum pivot bracket supports an indestructible composite shaft engineered to flex upon rock reef impacts, springing back straight without structural damage. The lower unit utilizes high-grade copper windings and a digital pulse-width modulation speed control board. Weighing 56 lbs dry, this 36V motor pulls 52A at wide-open throttle, occupying a stowed boundary measuring 82 inches long by 12 inches wide.

Key Features of Minn Kota Terrova 112

Professional anglers who buy Minn Kota Terrova 112 trolling motor units secure pro-grade boat control for freshwater bass boat rigging. Its electric foot pedal features heel-toe steering and a dedicated Spot-Lock button, allowing captains to lock position instantly without taking their eyes off chartplotter screens.

- 112 lbs of thrust provides massive power to maneuver 21-foot fiberglass tournament rigs through wind.
- 72-inch composite shaft keeps the propeller submerged during choppy waves on windy main lake points.
- 36V DC electrical architecture maximizes operating efficiency while keeping full-throttle current under 52A.
- Spot-Lock GPS virtual anchor locks vessel positions within feet using real-time satellite position correction.
- Terrova 112 tournament bow motor platform includes an i-Pilot wireless remote control with an illuminated screen.
- Digital Maximizer speed modulation delivers variable speed selection while extending battery runtime fivefold.
- Weedless Wedge 2 propeller features swept-back blades that push through hydrilla mats without bogging.
- Electric-steer foot pedal provides precise directional control with momentary and continuous power toggles.

Thrust Curves Battery Amp Draw

Producing 112 lbs of static thrust on 36V power, this motor draws 52A at wide-open throttle, delivering unmatched pushing power through thick emergent weed beds. Connected to three 12V 100Ah lithium iron phosphate batteries, it provides over 16 continuous hours of aggressive fishing at mid-range throttle. The motor pod dissipates heat rapidly into surrounding water, emitting under 38 dB(A).

Bow Deck Installation Geometry Clearances

Secure the extruded aluminum base to the forward boat deck using six marine-grade stainless steel machine bolts, allowing 4 inches of forward overhang past the rubrail. Ensure seamless connection to a 60A waterproof manual-reset marine circuit breaker using 6 AWG tinned marine copper wire. The base plate matches standard Terrova quick-release pucks.

Deck Usability Rigging Inspection Tasks

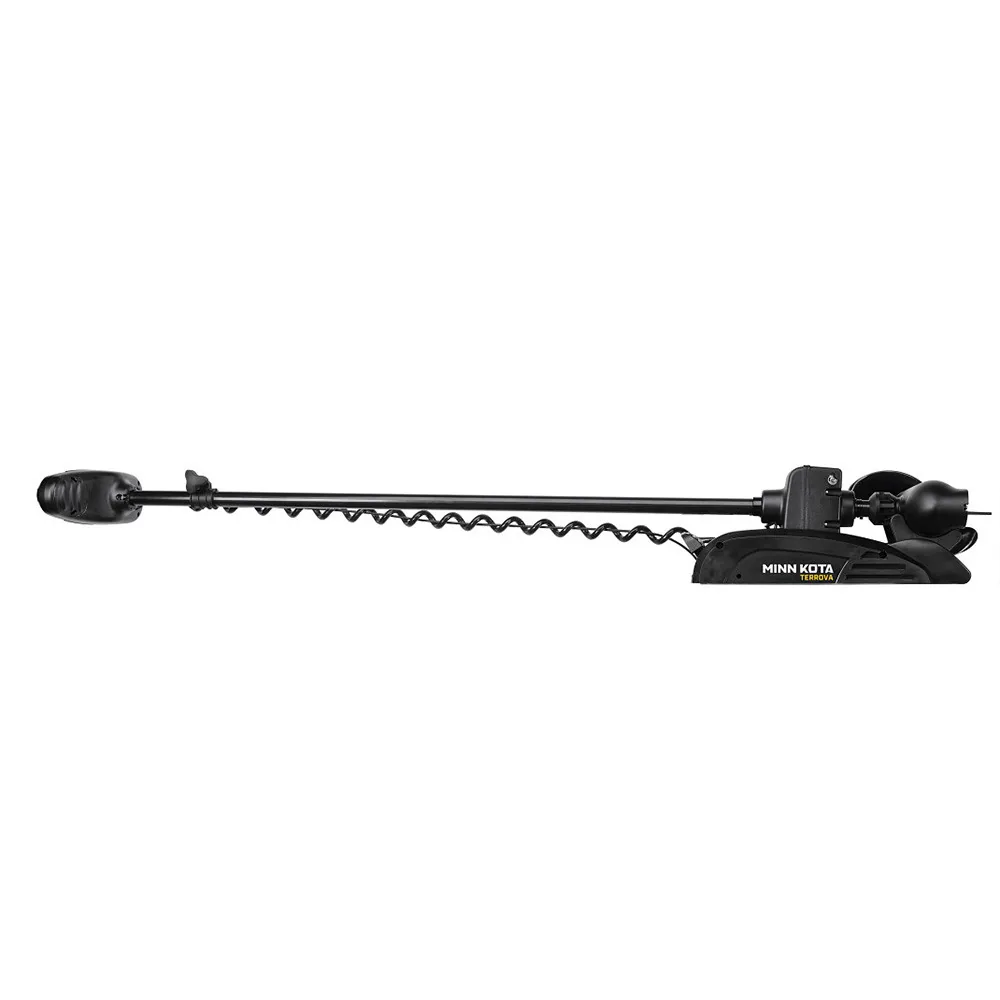

The integrated lift-assist nitrogen cylinder reduces motor stowage and deployment pull force in half, making boat moves effortless. This 72-inch motor is not engineered for low-freeboard bass boats, shallow river canoes, or vessels with bow gunwales lower than 24 inches.

- Inspect the Weedless Wedge 2 prop and clear tangled braided line from the shaft after each outing.
- Wipe road grime and mud from the pivot bracket rails and lift cylinder after each outing.
- Inspect all 36V battery series connections and test circuit breaker function every 50 runtime hours.

Manufacturer Warranty Factory Package Manifest

Minn Kota covers this motor with a 2-Year limited warranty and a lifetime composite shaft guarantee. The factory package contains the Minn Kota Terrova 112 motor, electric foot pedal, wireless remote, heading sensor, Weedless Wedge 2 prop, mounting hardware, and manual.
