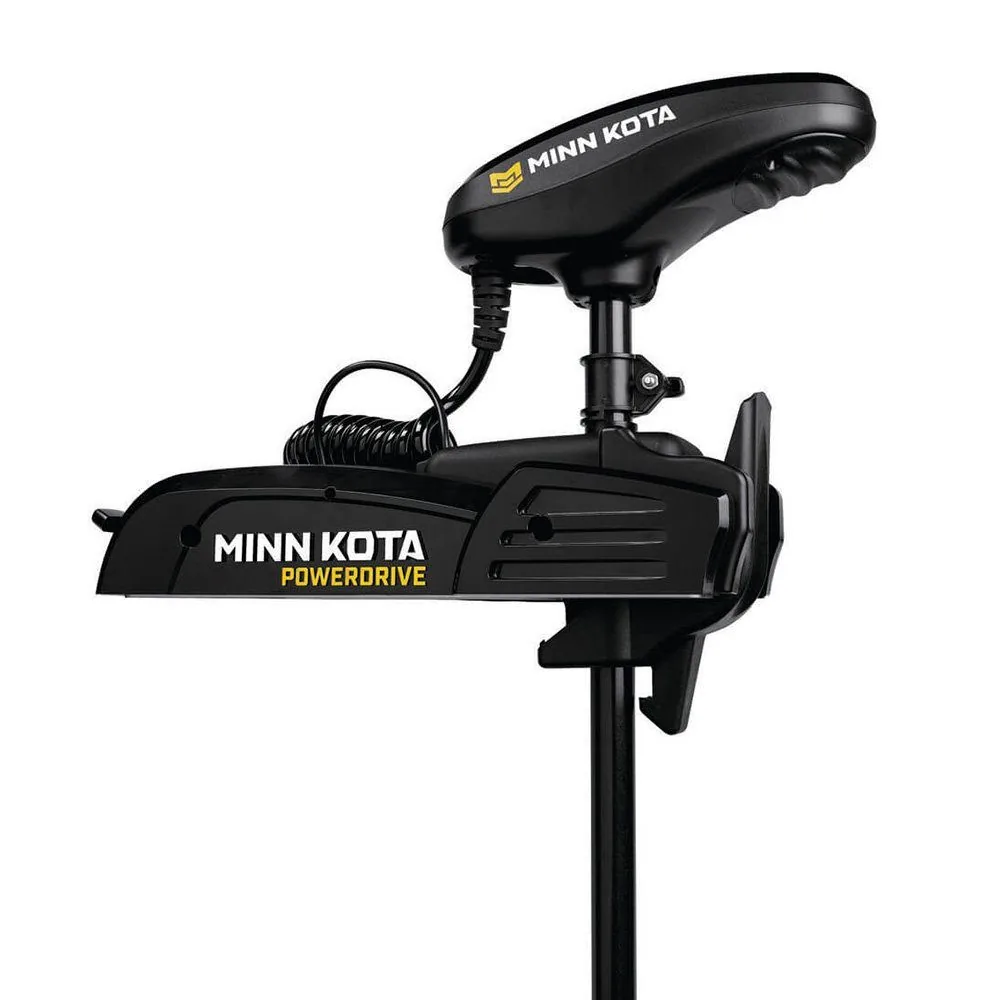

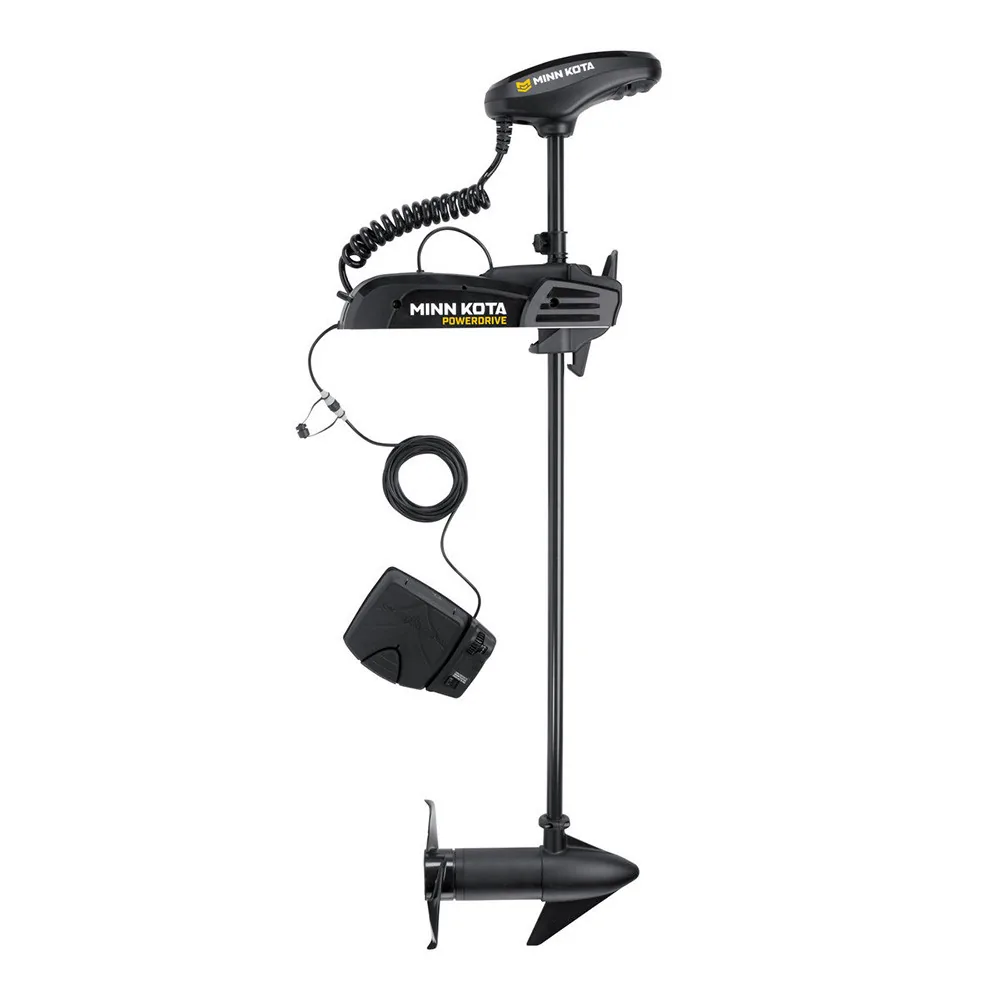

Minn Kota PowerDrive 55 Trolling Motor Pontoon

Control pontoon boat wind drift using the Minn Kota PowerDrive 55 Pontoon Motor, engineered specifically for forward deck installation on aluminum recreational pontoon platforms. Delivering 55 lbs of thrust on an efficient 12V DC electrical system, this 48-inch motor powers wide-deck craft through open-water drift lines with smooth electric foot pedal steering.

An extruded aluminum quick-release pontoon mounting bracket supports an indestructible composite shaft designed to flex upon underwater obstruction impacts. The motor pod uses high-grade copper windings and a digital pulse-width modulation speed control board. Weighing 39 lbs dry, this 12V motor demands a maximum continuous current draw of 50A across a stowed foredeck boundary measuring 58 inches long by 11 inches wide.

Key Features of Minn Kota PowerDrive 55 Pontoon

Pontoon owners who buy Minn Kota PowerDrive 55 pontoon motor hardware acquire dependable electric boat control for pontoon boat rigging. The quick-release bracket allows captains to slide the motor inboard behind safety gates, keeping bow perimeters clear while trailering or docking at marina slips.

- 55 lbs of peak thrust controls high-profile pontoon decks against stiff lake crosswinds and surface current.
- 48-inch composite shaft keeps the lower unit submerged through pontoon nose spray and wave chop.
- 12V DC operating system maximizes battery efficiency while drawing 50A at wide open throttle.
- Extruded aluminum quick-release pontoon mount allows fast motor removal to clear deck gates during transit.
- PowerDrive 55 pontoon electric motor incorporates an 18-foot corded electric foot pedal for flexible helm control.
- Digital Maximizer speed modulation delivers variable speed selection while extending battery runtime fivefold.
- Power Prop propeller design delivers extra push through thick open-water vegetation without motor stall.
- Deploy-Assist lever releases the motor into the water with a simple press of an ergonomic foot lever.

Thrust Output Amp Draw Efficiencies

Generating 55 lbs of static thrust at maximum speed, this 12V motor draws 50A under wide-open throttle, running efficiently on digital PWM circuits. Powered by a single 12V 100Ah deep-cycle marine lithium battery, it sustains over 8 continuous hours of trolling at half throttle. The motor pod operates quietly underwater, generating under 39 dB(A) to avoid alerting panfish and walleye holding beneath pontoon deck shadows.

Bow Deck Installation Geometry Clearances

Mount the aluminum pontoon bracket directly to the forward deck aluminum perimeter frame using four stainless steel through-bolts, allowing 4 inches of clearance past the deck edge. Connect the electrical leads to a 50A waterproof manual-reset marine circuit breaker using 6 AWG tinned marine copper wire. The base plate matches standard pontoon bow door openings.

Deck Usability Rigging Inspection Tasks

Stowing the motor involves depressing the central Deploy-Assist lever and sliding the composite shaft upward into the deck bracket until it locks. This 12V motor is not engineered for heavy fiberglass multi-species rigs over 20 feet, high-freeboard offshore bay boats, or saltwater environments lacking sacrificial zinc anodes.

- Inspect the propeller shear pin and clear wrapped monofilament behind the hub after each outing.
- Wipe grit and dust from the composite shaft and deploy slide collar after each outing.
- Inspect 12V battery terminal wing-nuts and verify circuit breaker connections every 50 runtime hours.

Manufacturer Warranty Factory Package Manifest

Minn Kota covers this motor with a 2-Year limited warranty and a lifetime composite shaft guarantee. The factory shipment includes the Minn Kota PowerDrive 55 Pontoon motor, quick-release pontoon bracket, electric foot pedal, Power Prop, mounting hardware pack, and operating instructions.
