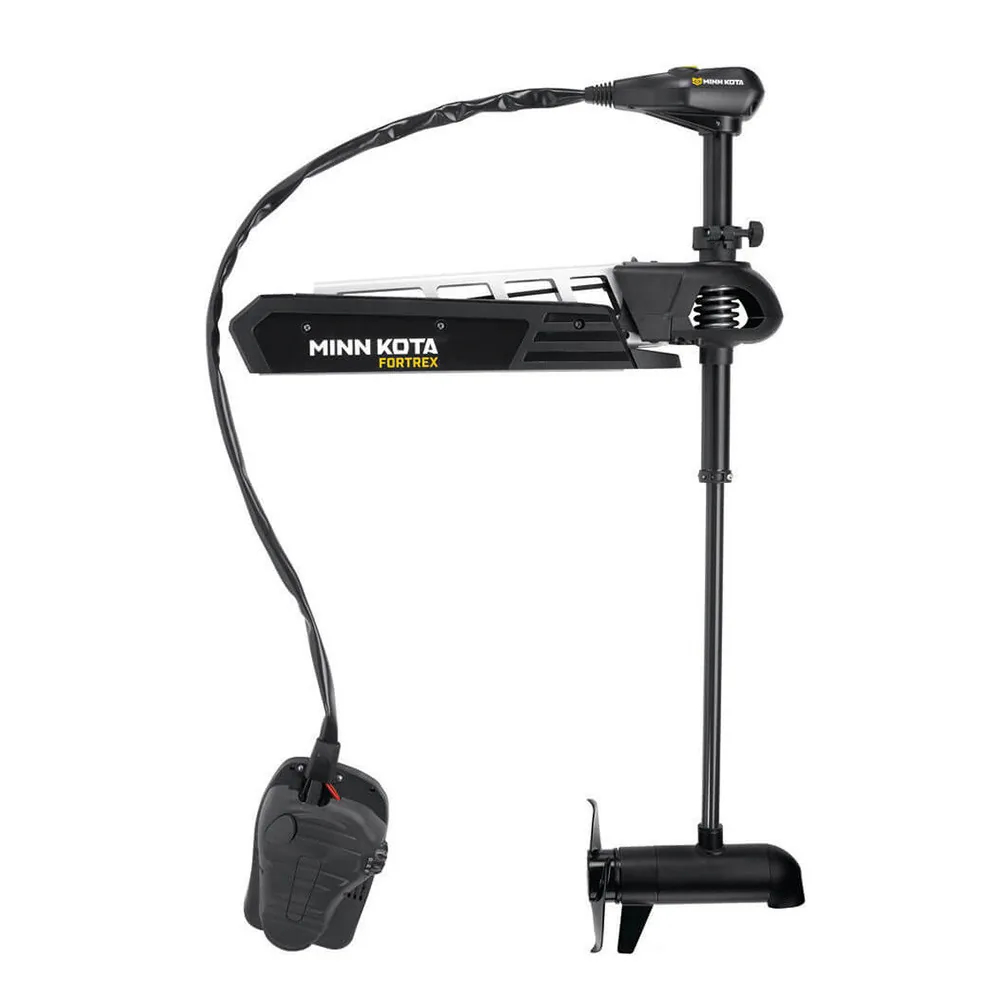

Minn Kota Fortrex 80 Trolling Motor

Extruded aircraft aluminum Mono-Arm brackets reinforce the Minn Kota Fortrex 80 Trolling Motor, delivering rigid cable-steer performance and 80 lbs of thrust for serious tournament anglers. Operating on a clean 24V DC system with a 48-inch composite shaft and integrated Dual Spectrum CHIRP sonar, this motor cuts through heavy weed beds without bracket chatter.

A single-hinge extruded aluminum arm eliminates bracket play and metal noise, providing a silent approach on shallow bass flats. The composite shaft bends on impact with submerged rocks, protecting the lower unit from mechanical fracture. Weighing 51 lbs dry, this 24V motor draws 56A at wide-open throttle, occupying a stowed deck boundary measuring 58 inches long by 14 inches wide.

Key Features of Minn Kota Fortrex 80

Bass anglers who buy Minn Kota Fortrex 80 trolling motor systems gain pro-grade mechanical cable steering for freshwater bass boat rigging. The nitrogen gas lift-assist spring cuts deployment effort in half, allowing anglers to stow the motor and run to new tournament waypoints quickly.

- 80 lbs of peak thrust controls 18-foot to 20-foot tournament bass boats against stiff winds and current.
- 48-inch composite shaft flexes upon underwater log impacts to protect internal lower unit components.
- Built-in Dual Spectrum CHIRP transducer connects directly to Humminbird units to reveal fish holding in cover.
- Mono-Arm bracket architecture uses an extruded aluminum hinge to eradicate rattles and mounting play.
- Fortrex 80 tournament cable steer platform utilizes Counter-Tension springs to eliminate foot pedal steering play.
- Weedless Wedge 2 propeller features swept-back blades that push through hydrilla mats without bogging.
- Digital Maximizer speed modulation draws energy only as needed to conserve 24V battery capacity.

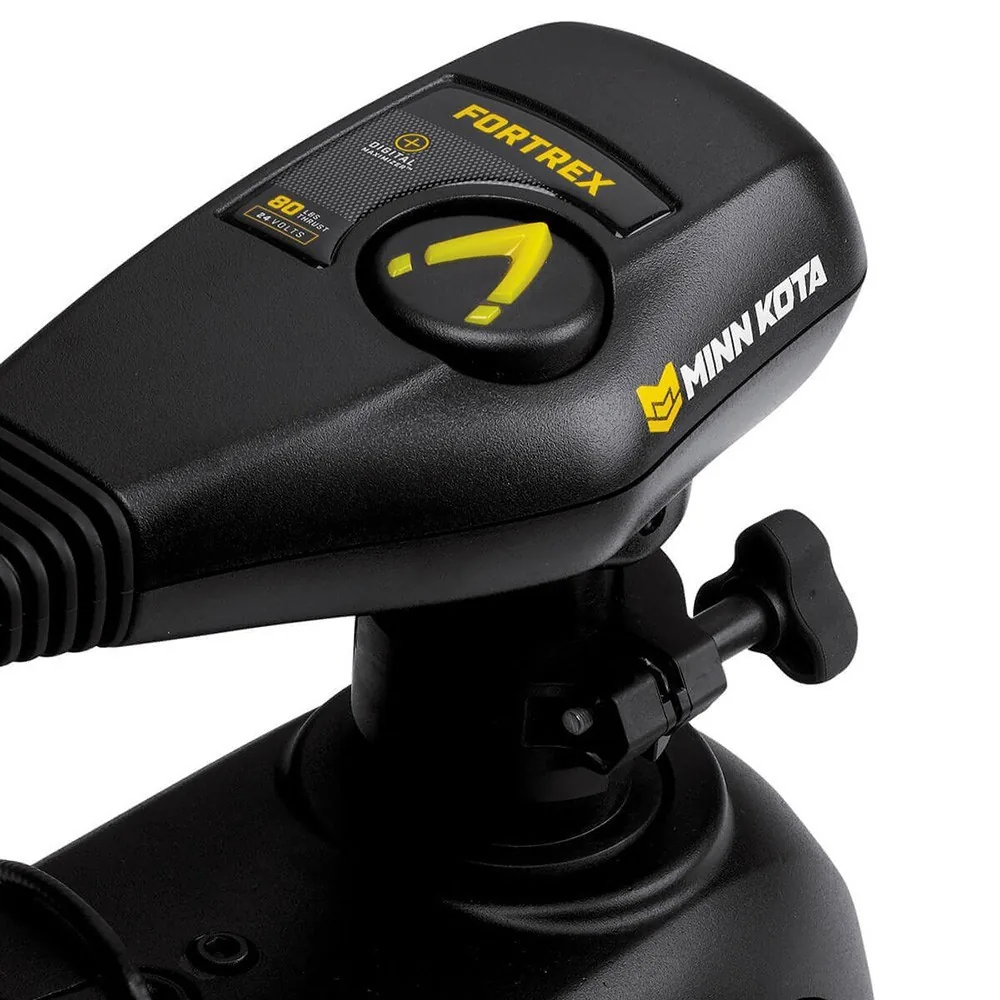

- Lighted directional indicator on the head cap shows prop orientation clearly during dark morning blast-offs.

Thrust Output Amp Draw Efficiencies

Generating 80 lbs of static thrust on 24V DC power, this motor pulls 56A under full load while maintaining cool operating temperatures inside the motor pod. Operating on two 12V 100Ah lithium batteries provides over 14 continuous hours of tournament fishing at 50 percent throttle. The high-torque armature slices through thick vegetation without tripping breakers, holding sound levels under 38 dB(A).

Bow Deck Installation Geometry Clearances

Fasten the Mono-Arm base channel to the bow deck using six stainless steel through-bolts and backing washers, allowing 4 inches of forward overhang beyond the rubrail. Wire the power circuit to a 60A manual-reset marine circuit breaker using 6 AWG tinned copper wire. The base fits standard tournament boat deck hole patterns.

Deck Usability Rigging Inspection Tasks

Deploying the motor requires pressing the upper release latch and guiding the shaft down as the internal nitrogen spring counteracts motor weight. This 24V cable-steer motor is not engineered for saltwater coastal flats, deep ocean center consoles, or small canoes displacing under 800 lbs.

- Inspect the propeller shear pin and remove tangled fishing line behind the prop after each outing.
- Rinse the composite shaft, foot pedal base, and Mono-Arm pivot points with clean water after each outing.
- Check 24V battery terminal nuts and test the circuit breaker reset button every 50 runtime hours.

Manufacturer Warranty Factory Package Manifest

Minn Kota backs this unit with a 3-Year limited warranty and a lifetime composite shaft guarantee. The carton delivers the Minn Kota Fortrex 80 motor, foot pedal, Weedless Wedge 2 prop, bow stabilizer bar, mounting hardware kit, and user guide.
