Miller XMT 350 MIG TIG Stick Welder – P/N 907740

Pipe welding crews relying on the Miller XMT 350 multi process welder (P/N 907740) eliminate manual lead swapping delays through factory-installed polarity reversing technology. Switching between DC positive for structural stick passes and DC negative for pipe TIG roots traditionally requires unbolting heavy copper lugs at the powerhead studs. This 425-amp multi-process machine features an internal motorized polarity switch that reverses welding output polarity with the turn of a front-panel dial.

ArcReach technology pairs with the polarity switch, allowing operators working inside vessel hulls to change process and polarity at an optional remote control box without walking back to the machine. Auto-Line primary power management maintains constant welding current across single-phase or three-phase lines from 208V to 575V. The heavy-gauge steel cabinet features dual lifting handles and rubber corner bumpers, protecting internal electronic components from heavy jobsite impacts.

Core Mechanical Specifications of Miller XMT 350 (P/N 907740)

- Internal Motorized Polarity Reversing Switch: Toggles between DC positive and DC negative output without swapping heavy weld leads.
- ArcReach Remote Parameter Control: Adjusts arc parameters at the feeder across standard weld leads without control cables.
- 5-425A Comprehensive Multi-Process Range: Handles Stick, DC TIG, MIG, Flux-Cored, and Carbon Arc Gouging from one station.
- Auto-Line 208V to 575V Primary Input: Operates on single-phase or three-phase industrial electrical services without manual rewire.
- Rated 350A Output at 60% Duty Cycle: Sustains continuous production welding passes with heavy solid and flux-cored wire.
- Wind Tunnel Component Isolation: Protects internal circuit boards from airborne metal shavings by directing air through a central duct.
- Digital Amperage and Voltage Meters: Displays exact real-time welding parameters for procedure compliance.

Production Efficiency & Reduced Post-Weld Cleanup

This polarity-reversing multi-process inverter accelerates structural pipe fabrication by eliminating non-productive manual lead swaps.

- Front-panel polarity switching cuts changeover time from ten minutes down to three seconds between TIG root passes and stick fill passes.
- ArcReach technology eliminates fragile control cables, stopping the primary cause of jobsite remote control failures.

Material Capacities & Workshop Integration

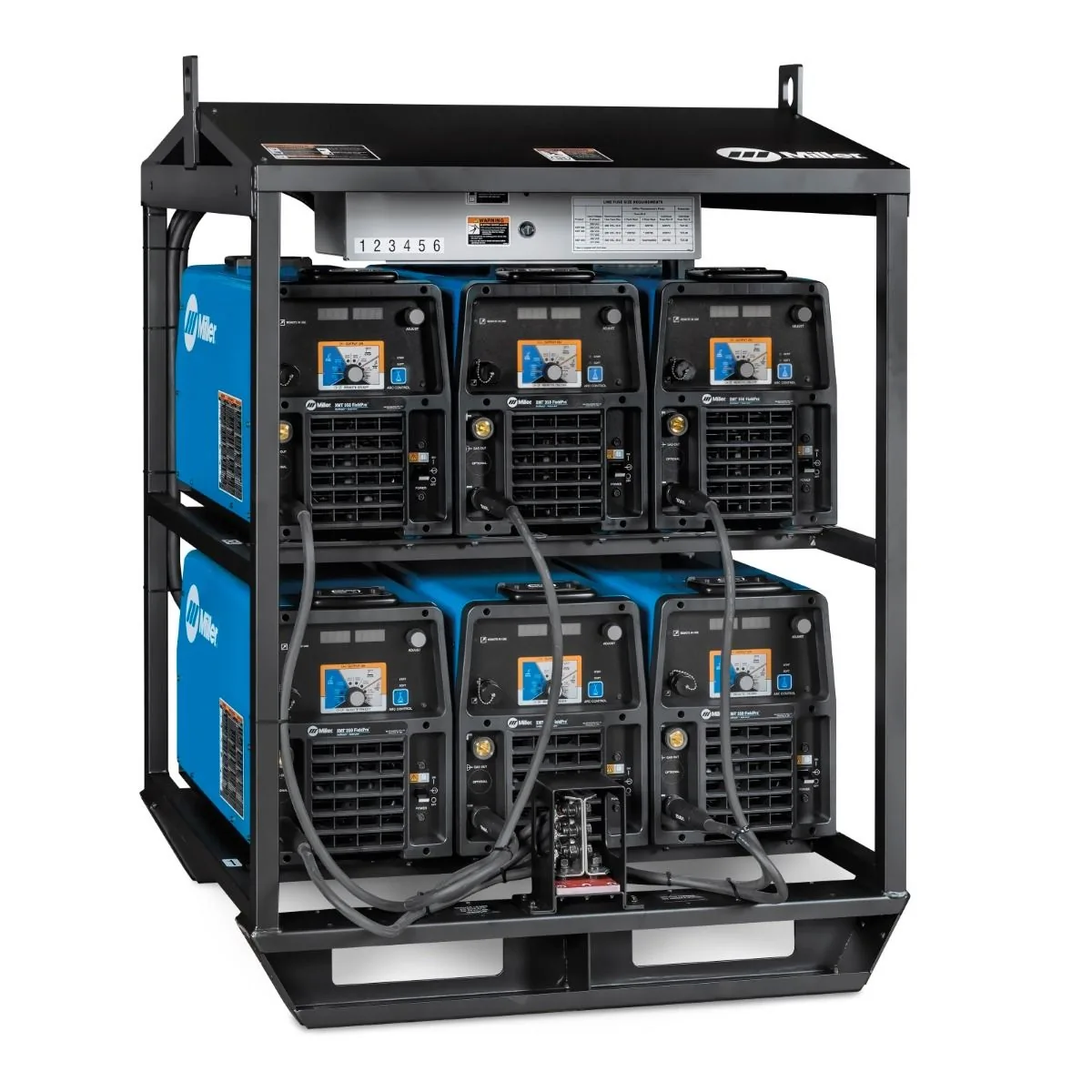

Measuring 24 inches long by 12.5 inches wide and weighing 82 pounds dry, this industrial inverter power source fits on standard shop carts or factory multi-operator racks.

Factory Warranty Terms & Consumable Care

- Miller Electric covers the XMT 350 power source with a 3-Year True Blue warranty against electrical component defects.

Blow dry compressed air through the powerhead cooling tunnels every 100 operating hours, check output cable lugs for heat discoloration, and verify secondary lead connections. Order the Miller XMT 350 multi process welder (P/N 907740) from Mulmotor.com for guaranteed factory-fresh units, complete manufacturer warranty coverage, and dedicated commercial equipment support.
