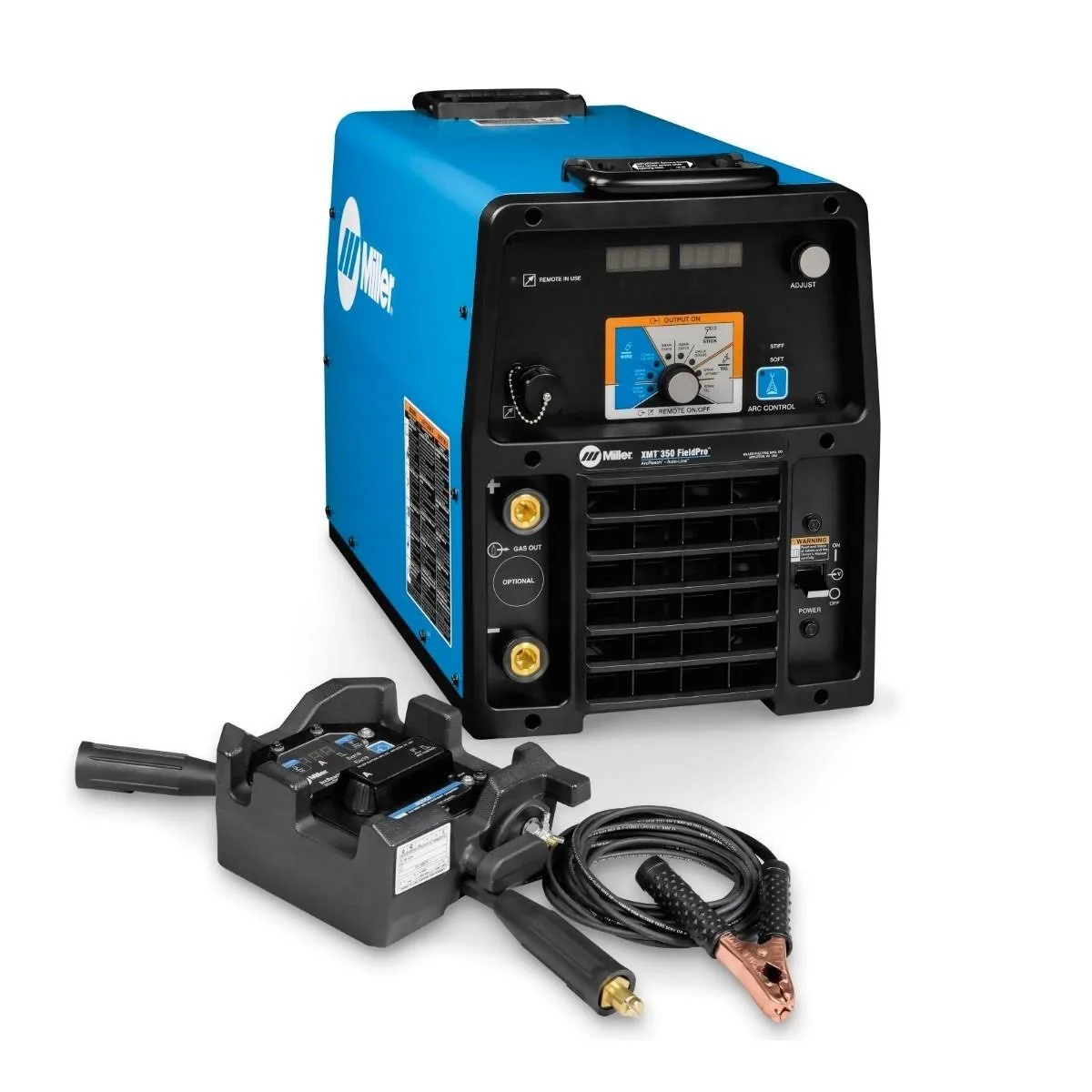

Miller XMT 350 TIG Stick Welder – P/N 951736

During continuous 8-hour pipe rack welding shifts, the complete Miller XMT 350 TIG Stick welder package (P/N 951736) delivers cable-free parameter adjustments at the pipe joint through an ArcReach Stick/TIG remote. Pipefitters lose billable hours climbing off elevated scaffolds to adjust amperage between root, hot, and cap passes on heavy-wall process piping. This complete field package bundles the 425-amp Auto-Line inverter power source with an ArcReach Stick/TIG remote, a high-flex TIG torch, and an electrode stinger lead kit.

The ArcReach Stick/TIG remote plugs in-line with the welding lead, allowing operators to adjust amperage and select process modes at the pipe joint without control cables. Auto-Line technology accepts primary electrical service across single-phase or three-phase lines from 208V to 575V, maintaining arc stability despite generator voltage fluctuations. In TIG mode, Lift-Arc ignition initiates DC TIG arcs cleanly without high-frequency radiation, protecting computerized automated plant equipment from electrical noise.

Technical Specifications of Miller XMT 350 Package (P/N 951736)

- Complete ArcReach Stick/TIG Contractor Package: Bundles XMT 350 FieldPro, ArcReach remote, TIG torch, and stick lead.
- ArcReach Cableless Remote Control: Adjusts amperage and process modes at the weld joint through standard weld leads.
- 5-425A Operating Current Range: Delivers precise low-amperage TIG control from 5 amps up to 425 amps for heavy stick rod.
- Lift-Arc DC TIG Arc Initiation: Starts smooth DC TIG arcs without scratch marks or electrical interference on control electronics.
- Auto-Line 208V to 575V Primary Input: Connects to single-phase or three-phase industrial lines without internal jumper links.
- Rated 350A Output at 60% Duty Cycle: Maintains non-stop high-deposition welding on heavy structural steel and pipe assemblies.

Heavy-Duty Architecture & Low Maintenance

Designed for mechanical pipefitters and structural ironworkers, this cableless remote package maximizes joint completion speed.

- ArcReach remote control eliminates trips back to the power source, saving up to thirty minutes of walking time per operator daily.
- Eliminating fragile 14-pin control cords stops the primary cause of jobsite remote control failures and tripping hazards.
- Lift-Arc technology prevents tungsten inclusions in high-stress stainless steel food-grade piping weldments.

Equipment Integration & Fitment Specs

Weighing 80 pounds dry with an exterior length of 24 inches, this industrial powerhead sits on mobile service carts and operates on clean generator power.

Commercial Coverage & Maintenance Upkeep

- Miller Electric covers the XMT 350 FieldPro powerhead and ArcReach remote with a 3-Year True Blue warranty.

Service this welder by blowing shop dust out of the cooling tunnels every 100 hours, checking cable lugs for tightness, and maintaining sharp tungsten tips. Order the Miller XMT 350 TIG Stick welder package from Mulmotor.com for guaranteed factory-fresh units, complete manufacturer warranty coverage, and dedicated commercial equipment support.
