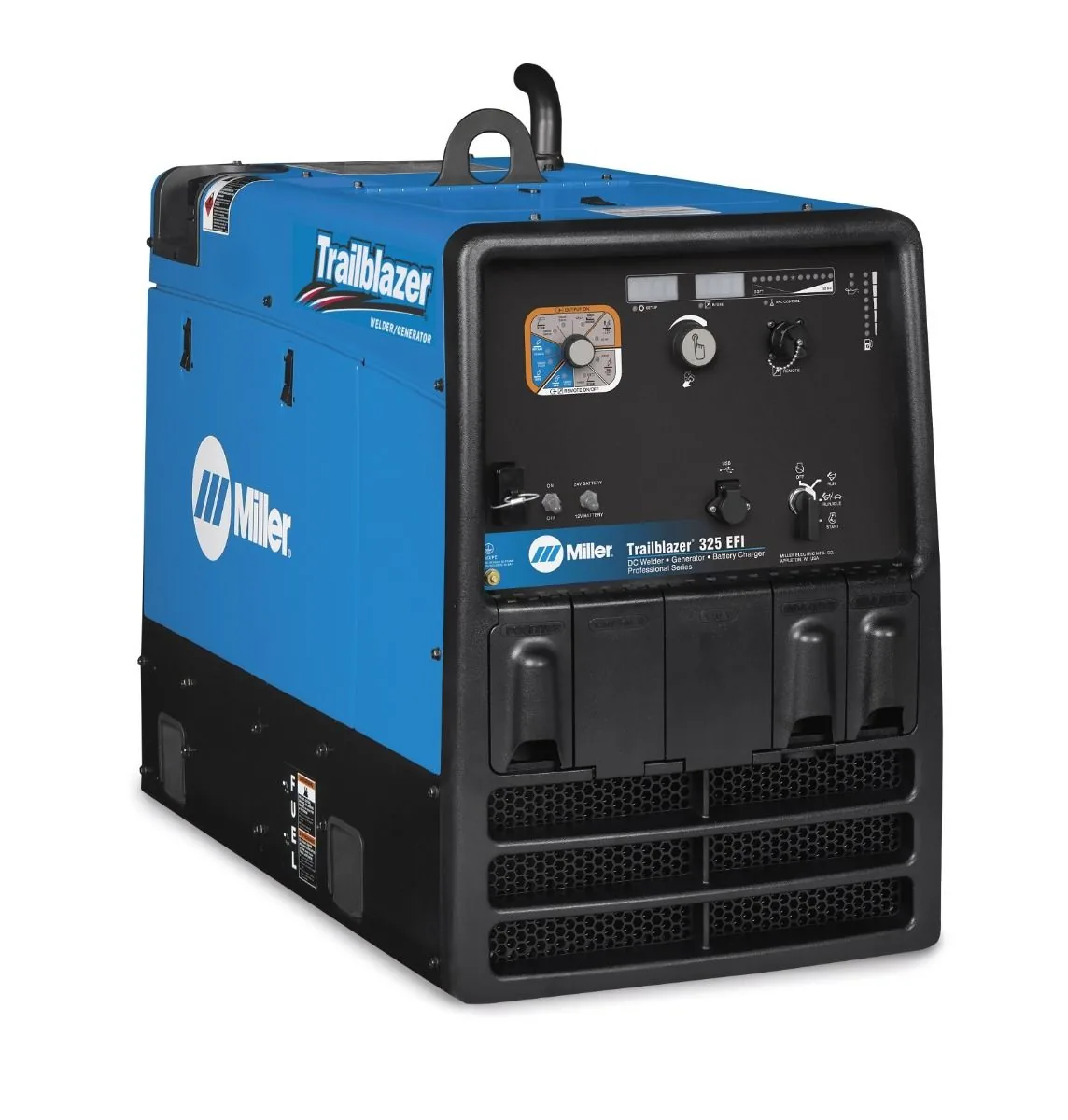

Miller Trailblazer 325 Kohler Engine Driven Welder Generator – P/N 907798004

Equipped with Excel power and Wireless Interface Control, the Miller Trailblazer 325 Kohler engine driven welder generator (P/N 907798004) combines idle auxiliary power with wireless parameter adjustment up to 300 feet away. Mobile rig welders lose billable minutes climbing into truck beds to tweak heat settings or running engines at high RPM for small hand grinders. This fully equipped package features closed-loop electronic fuel injection, Excel power for 120V tool operation at engine idle, and a full-function wireless remote.

The handheld wireless remote displays fuel levels, engine hours, and exact arc amperage, allowing operators to switch between stick welding and wire feeding right from the joint. Excel power outputs 2,400 watts of clean sine wave electricity while the 23.5HP Kohler engine idles at 2,400 RPM, cutting noise and gasoline consumption. When you strike an arc, Auto-Speed governing ramps the engine to exact welding load demand, delivering 325 amps of multi-process power at 100 percent duty cycle.

Engine Architecture of Miller Trailblazer 325 (P/N 907798004)

- Excel Power 120V Idle Generator: Produces 2,400 watts of clean 120V electricity at engine idle speed to slash fuel consumption.
- Wireless Interface Remote Control: Adjusts welding parameters and operates engine start-stop wirelessly from up to 300 feet.
- Kohler Command PRO EFI Engine: Closed-loop electronic fuel injection delivers instant cold starts and lower fuel consumption.
- 325A Output at 100% Duty Cycle: Maintains non-stop high-deposition welding on heavy structural steel and pipe assemblies.
- ArcReach Remote Parameter Technology: Regulates voltage and wire speed through the weld lead without separate 14-pin cords.
- 12,000-Watt Peak AC Generator: Delivers clean electricity with under 5 percent THD to run sensitive digital electronics safely.

Commercial Advantages & Heavy-Duty Build

Engineered for high-volume structural contractors, this fully optioned gas-drive welder delivers unmatched fuel efficiency and remote jobsite control.

- Combining Excel power with wireless start-stop cuts annual fuel expenses by hundreds of gallons across commercial service trucks.
- Complete wireless remote control eliminates tripping hazards and stops expensive remote control cord replacements.

Property Clearance & Trailer Packing

Measuring 40.5 inches long by 20 inches wide and weighing 460 pounds dry, this unit mounts across standard commercial pickup truck beds without blocking rearview window lines.

Warranty Protection & Routine Upkeep

- Miller Electric covers the Trailblazer 325 powerhead and generator stator with a 3-Year True Blue warranty.

Change oil after the initial 20 operating hours, then maintain 100-hour service intervals using 10W-30 oil. Tap clean the air filter element weekly on dusty jobsites, and check the spark plug gap at 0.030 inches. Order the Miller Trailblazer 325 Kohler engine driven welder generator from Mulmotor.com for guaranteed factory-fresh units, complete manufacturer warranty coverage, and dedicated commercial equipment support.
