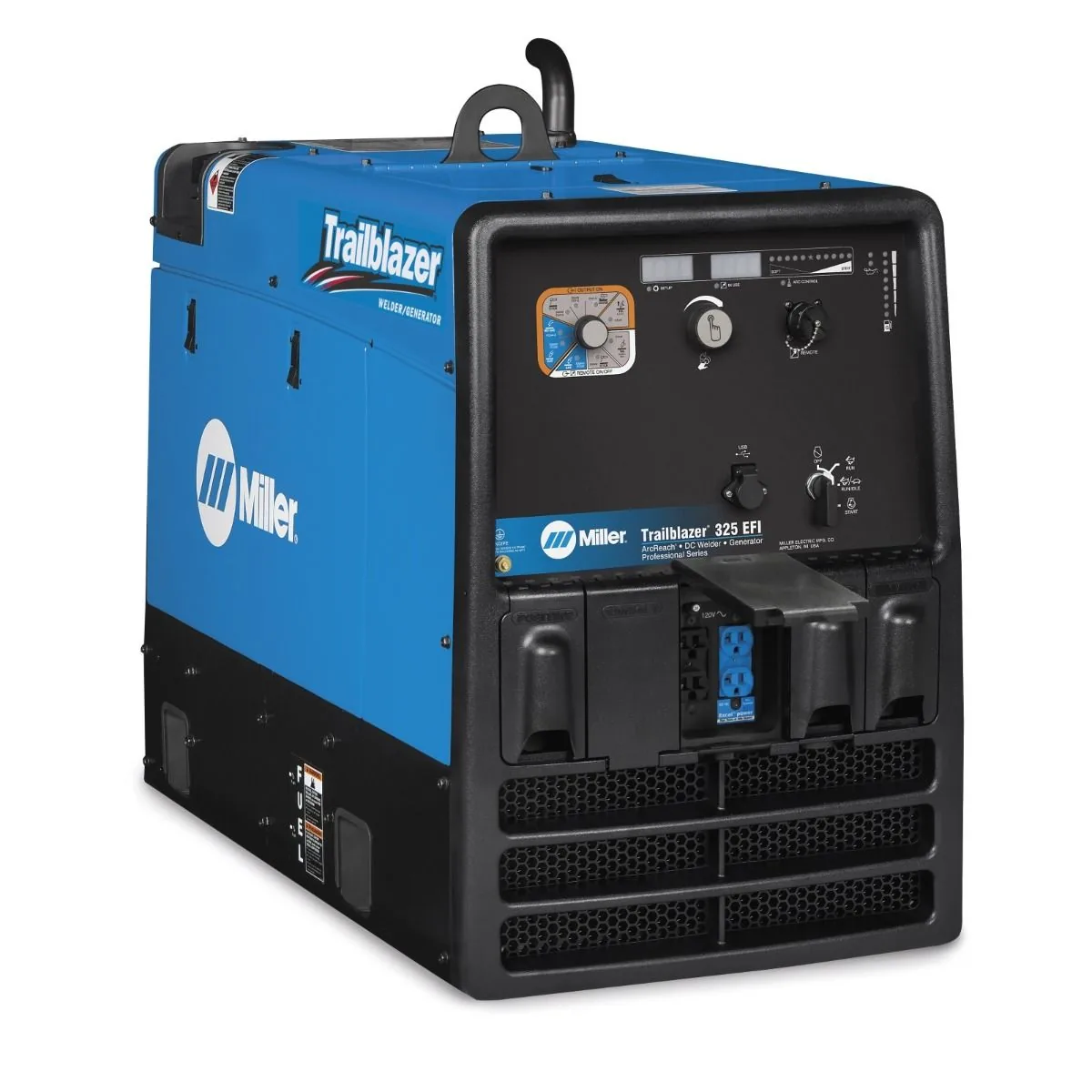

Miller Trailblazer 325 Kohler Engine Driven Welder Generator – P/N 907798002

Mobile mechanical contractors relying on the Miller Trailblazer 325 Kohler engine driven welder generator (P/N 907798002) eliminate fuel waste through integrated Excel power technology and electronic fuel injection. Running high-speed commercial engines at 3,600 RPM just to power small hand tools burns excess gasoline and accelerates engine wear. This advanced EFI unit incorporates Excel power, outputting 2,400 watts of 120V pure sine wave electricity while the Kohler engine idles at 2,400 RPM, cutting jobsite fuel burn and operational noise.

When you strike a welding arc, the engine ramps up to governed speed automatically, delivering 325 amps of multi-process current and 12,000 watts of peak auxiliary power. Independent generator windings isolate the welding arc from tool loads, preventing puddle stutter when grinders start up. The heavy-duty steel cabinet directs cooling airflow across internal heatsinks while keeping jobsite rain and grinding grit away from sensitive electronics.

Core Mechanical Specifications of Miller Trailblazer 325 (P/N 907798002)

- Excel Power 120V Idle Generator: Produces 2,400 watts of clean 120V electricity at engine idle speed to slash fuel consumption.
- Closed-Loop Electronic Fuel Injection Engine: Cuts fuel expenses by up to 42 percent while providing reliable cold-weather starting.
- 325A DC Output at 100% Duty Cycle: Maintains continuous welding current for heavy structural wire and stick passes.
- Auto-Speed Variable Engine Control: Automatically matches engine RPM to welding load, reducing fuel burn and noise.
- ArcReach Remote Parameter Technology: Regulates voltage and wire speed through the weld lead without separate 14-pin cords.
- 12,000-Watt Peak Auxiliary Generator: Delivers clean 1-phase power for heavy jobsite tools and air compressors.
- Reversed Airflow Sound Dampening: Lowers operating sound levels to improve communication on busy jobsites.

Production Efficiency & Reduced Post-Weld Cleanup

This gas-drive machine gives structural steel contractors and mobile mechanics high auxiliary wattage and dependable arc deposition.

- Excel power lets crews run grinders and lights at engine idle speed, cutting fuel consumption and lowering jobsite noise.
- Independent generator windings guarantee that grinder startup surges never cause arc blowouts or puddle defects.

Material Capacities & Workshop Integration

Measuring 40.5 inches long by 20 inches wide and weighing 460 pounds dry, this unit mounts across standard commercial pickup truck beds without blocking rearview window lines.

Factory Warranty Terms & Consumable Care

- Miller Electric covers the Trailblazer 325 powerhead and generator stator with a 3-Year True Blue warranty.
- The Kohler EFI commercial engine receives full 3-Year manufacturer warranty backing through authorized dealer service centers.

Perform engine oil and filter changes every 100 operating hours with 10W-30 oil, inspect air intake screens weekly, and check spark plug gaps at 0.030 inches. Order the Miller Trailblazer 325 Kohler engine driven welder generator from Mulmotor.com for guaranteed factory-fresh units, complete manufacturer warranty coverage, and dedicated commercial equipment support.
