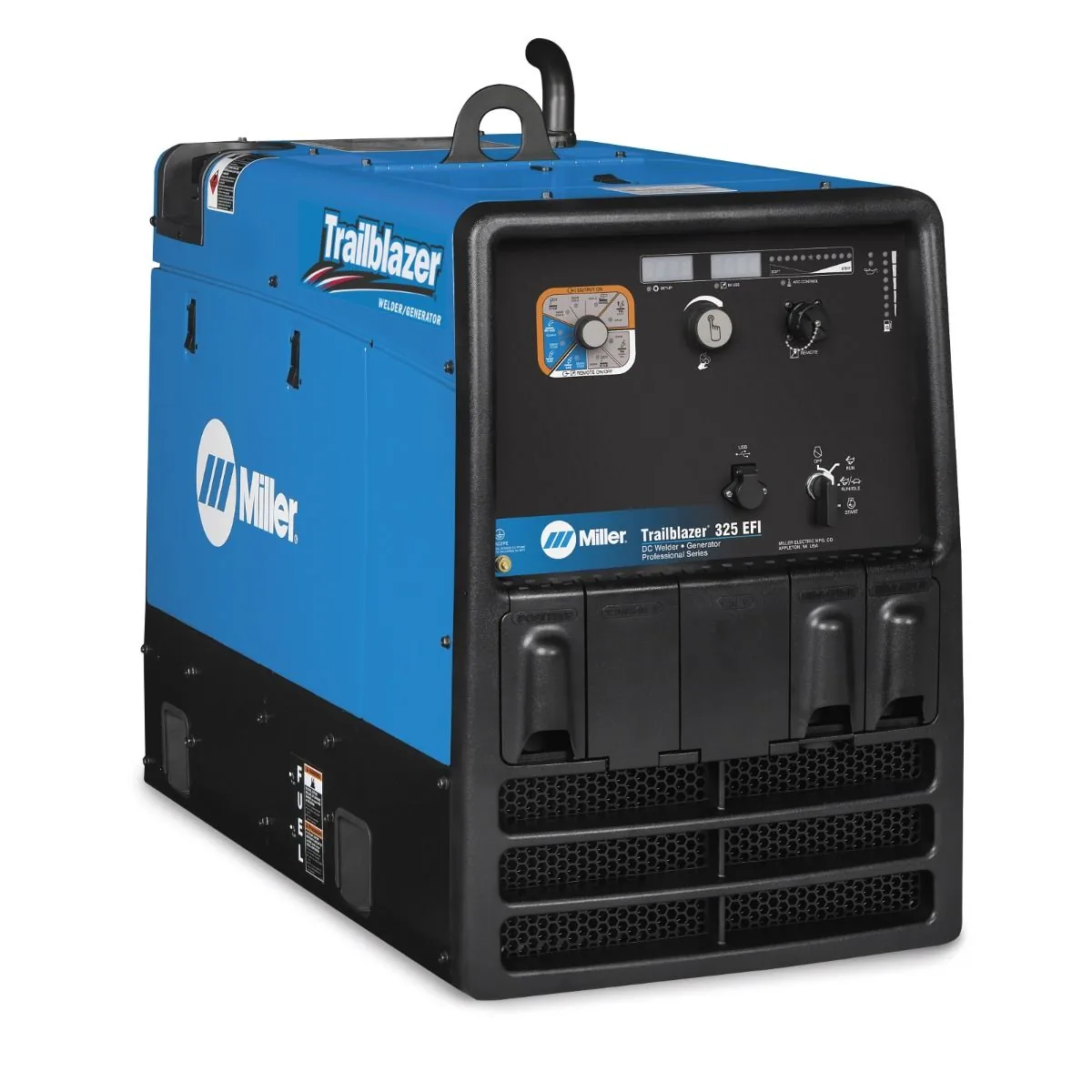

Miller Trailblazer 325 Kohler Engine Driven Welder Generator – P/N 907798

Depositing 325 amps of multi-process arc power, the Miller Trailblazer 325 Kohler engine driven welder generator (P/N 907798) cuts fuel consumption by up to forty-two percent through electronic fuel injection. Service truck operators lose thousands of dollars annually when carbureted engine drives idle at high RPM and foul fuel bowls during seasonal storage. This commercial gas-drive machine pairs a closed-loop electronic fuel injection Kohler engine with Auto-Speed technology and ArcReach cableless digital control.

Electronic fuel injection meters fuel dynamically based on air density and engine load, delivering fast cold-weather starts without choke levers or throttle surging. Auto-Speed technology regulates engine RPM to match actual arc demand, dropping down to 2,400 RPM during light stick passes and ramping up only when high-amperage welding requires full power. The fully enclosed sheet metal case directs cooling air upward, lowering operating noise down to 65 dBA at idle.

Key Engineering Features of Miller Trailblazer 325 (P/N 907798)

- Closed-Loop Electronic Fuel Injection (EFI): Slashes fuel consumption by up to 42 percent while eliminating carburetor gumming.
- Auto-Speed Variable Engine Governing: Automatically matches engine RPM to welding load, reducing fuel burn and noise.
- 325-Amp DC Multi-Process Output: Handles Stick, TIG, MIG, Flux-Cored, and Arc Gouging with carbon rods up to 3/16-inch.
- ArcReach Cableless Digital Control: Regulates voltage and wire feed speed across standard weld cables without control cords.
- 12,000-Watt Peak / 10,500-Watt Continuous AC: Delivers clean electricity with under 5 percent THD to run sensitive digital tools.
- Fully Enclosed Heavy-Duty Enclosure: Protects internal components from weather while lowering sound output down to 65 dBA.

Field Durability & Jobsite Power Delivery

Built for structural steel erectors and mobile service mechanics, this EFI gas-drive rig delivers high deposition rates and low fuel overhead.

- Closed-loop EFI technology eliminates hard cold-morning starts, allowing immediate machine turnover in freezing temperatures.
- ArcReach technology eliminates fragile control cables, stopping the most frequent cause of jobsite wire feeder breakdowns.
- Clean AC power generator runs sensitive diagnostic computers and inverter equipment without voltage harmonic interference.

Plate Thickness Clearance & Field Portability

Weighing 460 pounds dry with an exterior length of 40.5 inches, this compact unit welds 1/2-inch steel plate in one pass and fits crosswise in standard pickup beds.

Warranty Coverage & Field Maintenance

- Miller Electric backs the Trailblazer 325 generator and powerhead with a 3-Year True Blue warranty.
- Kohler covers the commercial EFI engine with a 3-Year commercial warranty through authorized dealers nationwide.

Change engine oil and filter every 100 operating hours with 10W-30 motor oil. Inspect the air filter weekly on dry grading sites, and maintain spark plug gaps at 0.030 inches. Order the Miller Trailblazer 325 Kohler engine driven welder generator from Mulmotor.com for guaranteed factory-fresh units, complete manufacturer warranty coverage, and dedicated commercial equipment support.
