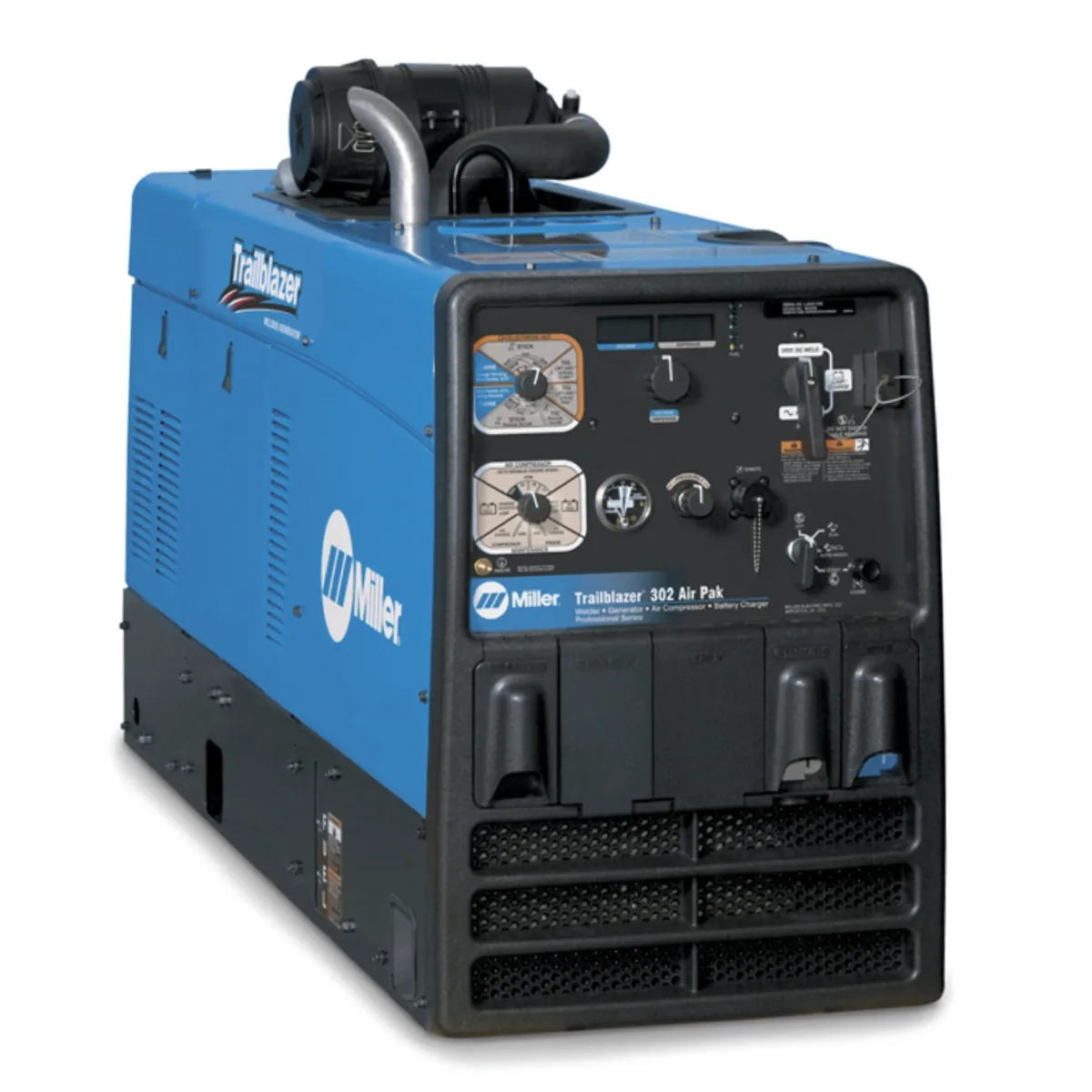

Miller Trailblazer 302 Kohler Engine Driven Welder Generator – P/N 907549003

The Miller Trailblazer 302 Kohler engine driven welder generator (P/N 907549003) solves auxiliary tool fuel waste through integrated Excel power technology that delivers 120V power at engine idle. Running high-speed commercial engines at 3,600 RPM just to power small hand tools burns excess gasoline and accelerates mechanical engine wear. This advanced gas-drive unit incorporates Excel power, outputting 2,400 watts of 120V pure sine wave electricity while the 25HP Kohler engine idles at 2,400 RPM, cutting jobsite fuel burn and noise dramatically.

When you strike a welding arc, the engine ramps up to governed speed automatically, delivering 300 amps of multi-process welding current and 11,000 watts of peak auxiliary power. Independent generator windings isolate the welding arc from tool loads, preventing puddle stutter when grinders start up. The heavy-duty steel cabinet directs cooling airflow across internal heatsinks while keeping jobsite rain and grinding grit away from sensitive electronics.

Engine Architecture of Miller Trailblazer 302 (P/N 907549003)

- Excel Power 120V Idle Generator: Produces 2,400 watts of clean 120V electricity at engine idle speed to slash fuel consumption.
- Four-Pole Independent Generator Windings: Eliminates electrical interference between welding leads and auxiliary power tools.
- 300A DC Multi-Process Output: Fuses structural steel, stainless pipe, and aluminum with Stick, TIG, and MIG processes.
- 11,000-Watt Peak AC Generator: Powers heavy jobsite tools, induction heaters, and high-amp air compressors simultaneously.
- 25HP Kohler Command PRO Engine: Twin-cylinder commercial engine features cast-iron sleeves and automatic low-oil shutdown.
- Digital Maintenance Indicator Screens: Displays real-time engine runtime, fuel percentage, and service countdowns.

Commercial Utility Stamina & Lifespan

Engineered for mobile service rigs and structural contractors, this Excel-equipped engine drive cuts daily operating expenses.

- Excel power lets crews run grinders and lights at engine idle speed, cutting fuel consumption and lowering jobsite noise.
- Independent generator windings guarantee that grinder startup surges never cause arc blowouts or puddle defects.
- A massive 11,000-watt auxiliary alternator eliminates the need to haul secondary gas generators for helper grinding tools.

Chassis Integration & Industrial Fitment

Measuring 40.5 inches long by 20 inches wide and weighing 555 pounds dry, this unit mounts across standard commercial pickup truck beds without blocking rearview window lines.

Commercial Warranty & Field Maintenance

- Miller Electric covers the Trailblazer 302 powerhead and generator stator with a 3-Year True Blue warranty.

Service this engine with fresh 10W-30 motor oil and a new filter every 100 operating hours. Tap clean the heavy-duty air cleaner weekly on dusty routes, and maintain the spark plug electrode gap at 0.030 inches. Order the Miller Trailblazer 302 Kohler engine driven welder generator from Mulmotor.com for guaranteed factory-fresh units, complete manufacturer warranty coverage, and dedicated commercial equipment support.
