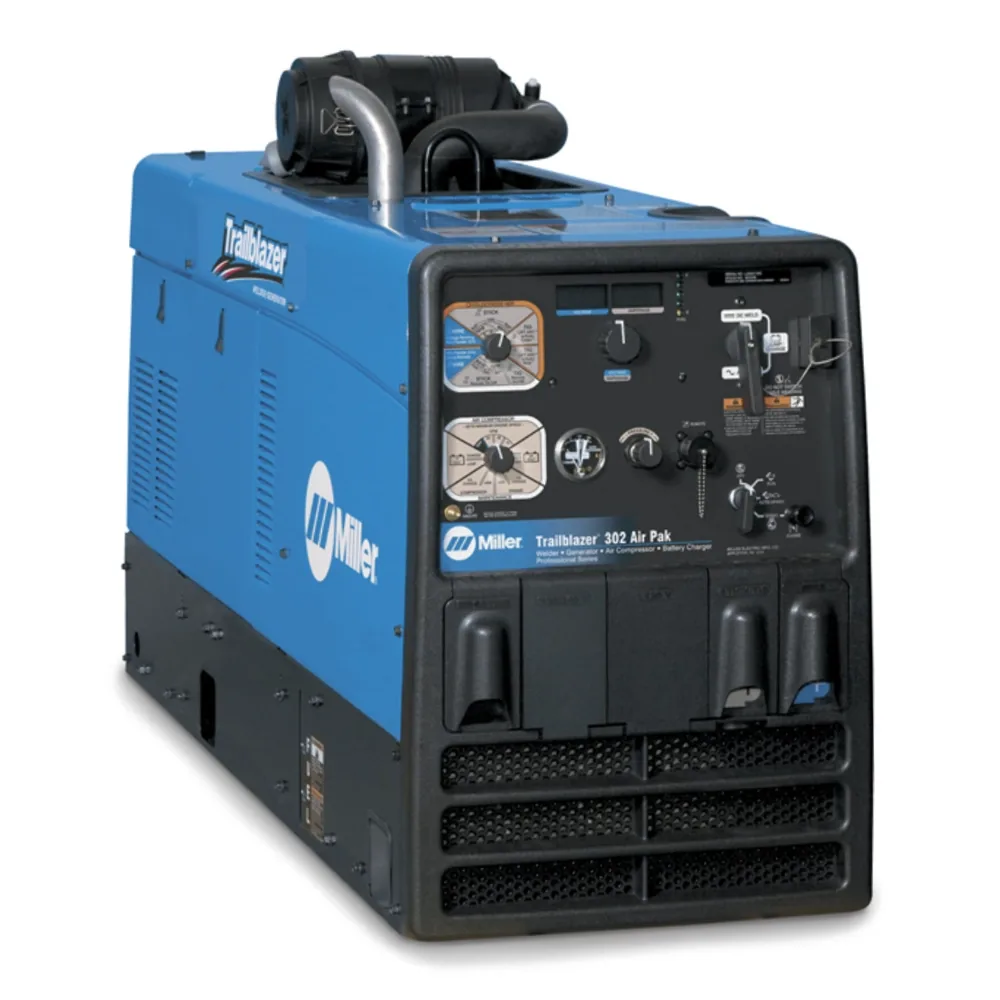

Miller Trailblazer 302 Kohler Engine Driven Welder Generator – P/N 907549

During continuous 8-hour field fabrication shifts, the Miller Trailblazer 302 Kohler engine driven welder generator (P/N 907549) runs heavy welding arcs and 11,000 watts of auxiliary power from separate generator windings. Traditional engine drives suffer arc stutter and voltage drops when helper crews trigger heavy angle grinders while the welder maintains an arc. This commercial machine features a four-pole three-phase generator design that isolates auxiliary generator power from the welding circuit, driven by a 25HP Kohler Command PRO engine.

You run heavy 9-inch grinders, plasma cutters, and chop saws from the 120V and 240V outlets without causing arc flutter at the welder stinger. The multi-process powerhead outputs 300 amps of DC current and 200 amps of AC current, supporting Stick, MIG, Flux-Cored, and TIG welding on structural steel, stainless, and aluminum. A 12-gallon fuel tank supports all-day field service without refueling stops, while the rugged roll-tube frame defends components from falling debris.

Technical Specifications of Miller Trailblazer 302 (P/N 907549)

- Four-Pole Isolated Generator Design: Eliminates arc interaction between welding leads and auxiliary power tools completely.
- 300A DC / 200A AC Multi-Process Output: Fuses structural steel, stainless pipe, and aluminum with Stick, TIG, and MIG processes.
- 11,000-Watt Peak AC Generator: Delivers 9,500 watts of continuous power to run heavy chop saws and hydraulic power packs.
- 25HP Kohler Command PRO Engine: Twin-cylinder overhead valve commercial engine features cast-iron sleeves and low oil shutdown.
- 12-Gallon Fuel Tank Capacity: Keeps field fabrication crews working up to 14 hours on a single tank.

Heavy-Duty Architecture & Low Maintenance

Designed for structural steel erectors and commercial rig welders, this multi-process engine drive provides extreme duty-cycle stamina.

- Independent generator windings guarantee that grinder startup surges never cause arc blowouts or puddle defects.
- Fully enclosed sheet metal cabinet directs cooling air across heatsinks while keeping jobsite rain and road grime away from electronics.
- Cast-iron cylinder sleeves inside the Kohler engine resist bore wear across thousands of commercial operating hours.

Equipment Integration & Fitment Specs

Weighing 555 pounds dry with an exterior length of 40.5 inches, this versatile engine-drive unit mounts on service trucks, flatbed trailers, or construction skids.

Commercial Coverage & Maintenance Upkeep

- Miller Electric backs the Trailblazer 302 generator and powerhead with a 3-Year True Blue warranty.

Service this engine with fresh 10W-30 motor oil and a new filter every 100 operating hours. Tap clean the heavy-duty air cleaner weekly on dusty routes, and maintain the spark plug electrode gap at 0.030 inches. Order the Miller Trailblazer 302 Kohler engine driven welder generator from Mulmotor.com for guaranteed factory-fresh units, complete manufacturer warranty coverage, and dedicated commercial equipment support.
