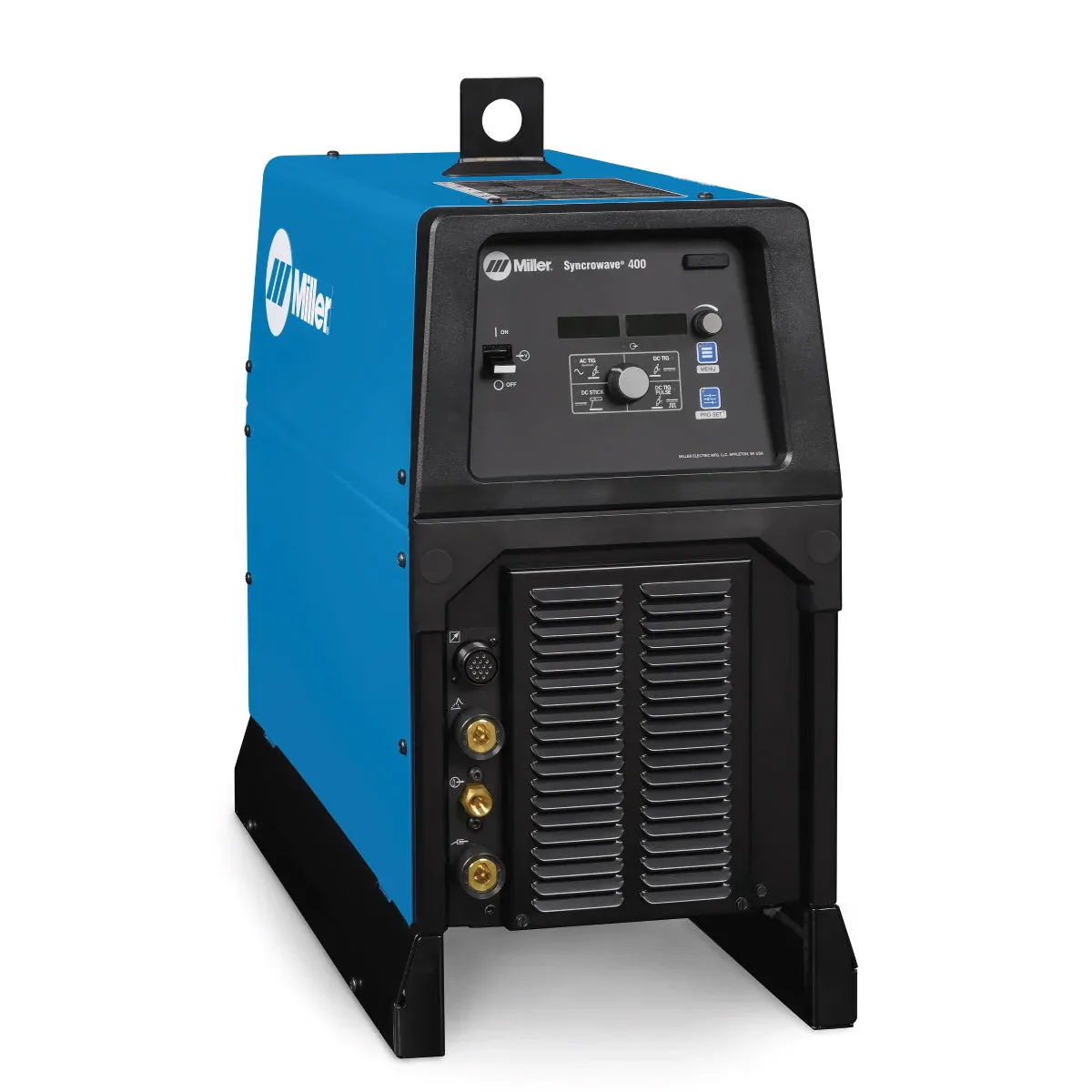

Miller Syncrowave 400 AC/DC TIG and Stick Welder (907783)

Miller Syncrowave 400 AC/DC TIG and Stick Welder (907783) offers single or three phase power and features a 30% duty cycle at 400 amps. This machine comes with Auto-Link technology that automatically links the power source to primary voltage being applied (208/240/480). The AC squarewave welding current of the Syncrowave 400 automatically removes the layer of oxide which is necessary for producing high-quality aluminum welds. The Syncrowave 400 compensates for power fluctuation without changing your welding parameters – line voltage compensation works on fluctuating power +-10 percent. Miller’s fan-on-demand technology operates the power source only when needed, reducing noise and energy use. The Syncrowave 400 comes with an Arc Timer/Cycle Counter that records actual welding time and number of arc starts, which is great for estimating job costs.

MPN: MIL907783

UPC: 715959683685

Processes TIG (GTAW)
Stick (SMAW)
DC pulsed TIG (GTAW-P)

Designed For Manufacturing
Construction and Fabrication
Precision metal fabrication
Maintenance and repair
Light and heavy manufacturing
Shipbuilding
Tube and pipe
Automotive
Vocational

Amperage 5–400 A

Weldable Metals Aluminum
Stainless Steel
Steel

Input Voltage 208 V
220/230/240 V
460/480 V

Input Phase 1- and 3-Phase

Input Hz 50/60 Hz

Input Phase AC / DC

Rated Output 400 A at 26 V, 30% duty cycle
300 A at 22 V, 60% duty cycle

Max Open Circuit Voltage 70 VDC

Weld Output 400 A at 26 V, 30% duty cycle
300 A at 22 V, 60% duty cycle

Weight 131 lb. (59.4 kg)

Warranty 3 Years
Miller’s True Blue Warranty
