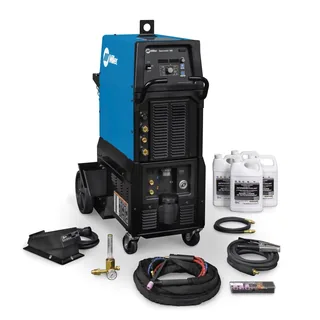

Miller Syncrowave 300 AC/DC TIG Stick Welder – 1-300A Amp Range

Need to fuse thick structural aluminum plate with high-amperage alternating current? The Miller Syncrowave 300 AC/DC TIG Stick welder supplies 300 amps of inverter power across an expansive 1 to 300-amp operating window. Heavy aerospace fabricators and military marine shops face weld porosity when undersized powerheads lack the duty cycle to complete long multi-pass aluminum seams. This 300-amp industrial inverter delivers 250 amps at 40 percent duty cycle and operates continuously at 200 amps at 60 percent duty cycle, fusing heavy alloy sections with ease.

Four distinct AC waveforms allow operators to customize puddle fluidity, including Advanced Square wave for fast travel speeds and Soft Square wave for a traditional buttery arc feel. Auto-Line technology accepts primary electrical service across single-phase or three-phase lines from 208V to 600V, maintaining constant arc voltage during plant power fluctuations. Pro-Set technology eliminates parameter setup confusion by providing factory-optimized presets for AC balance, AC frequency, and pulse parameters with a single button press.

Core Mechanical Specifications of Miller Syncrowave 300

- 1-300A Heavy Industrial Output Range: Fuses delicate 1-amp sensor housings up to 3/8-inch structural aluminum plate.
- Auto-Line Universal 208V to 600V Input: Connects to single-phase or three-phase shop power lines without internal reconnection jumpers.
- Four AC Waveform Profiles: Selects Advanced Square, Soft Square, Sine, or Triangular wave shapes to match weld bead aesthetics.
- Variable AC Frequency 20 to 400 Hz: Tightens arc cone width to penetrate narrow joint bevels with minimal heat input.
- High-Speed Pulse TIG up to 500 Hz: Controls heat input to narrow the heat-affected zone and prevent burn-through on thin alloy sheets.
- Pro-Set Automatic Parameter Configuration: Activates factory-engineered balance and pulse parameters with a single button press.
- Wind Tunnel Technology Cooling: Protects internal circuit boards from airborne metal shavings by directing air through a central duct.

Mechanical Advantages for Commercial Fleets

This industrial AC/DC TIG inverter delivers extreme duty-cycle stamina and aerospace certification compliance in a compact cabinet.

- Auto-Line circuitry maintains constant welding output during severe plant electrical surges or generator voltage fluctuations.
- Four specialized AC waveforms let operators tailor arc cone stiffness and puddle cleaning to specific aluminum alloys.

Acreage Productivity & Deck Clearance

Weighing 134 pounds dry with a cabinet length of 24.75 inches, this industrial power source mounts on custom shop carts or factory multi-operator racks.

Factory Warranty Protection & Service Care

- Lincoln Electric backs the Syncrowave 300 powerhead with a 3-Year True Blue warranty covering internal inverter modules.
- Authorized Miller service centers provide nationwide technical support and genuine replacement parts.

Clean internal cooling passages every 100 hours with dry shop air, verify secondary cable connection tightness, and check primary electrical connections annually. Order the Miller Syncrowave 300 AC/DC TIG Stick welder from Mulmotor.com for guaranteed factory-fresh units, complete manufacturer warranty coverage, and dedicated commercial equipment support.
