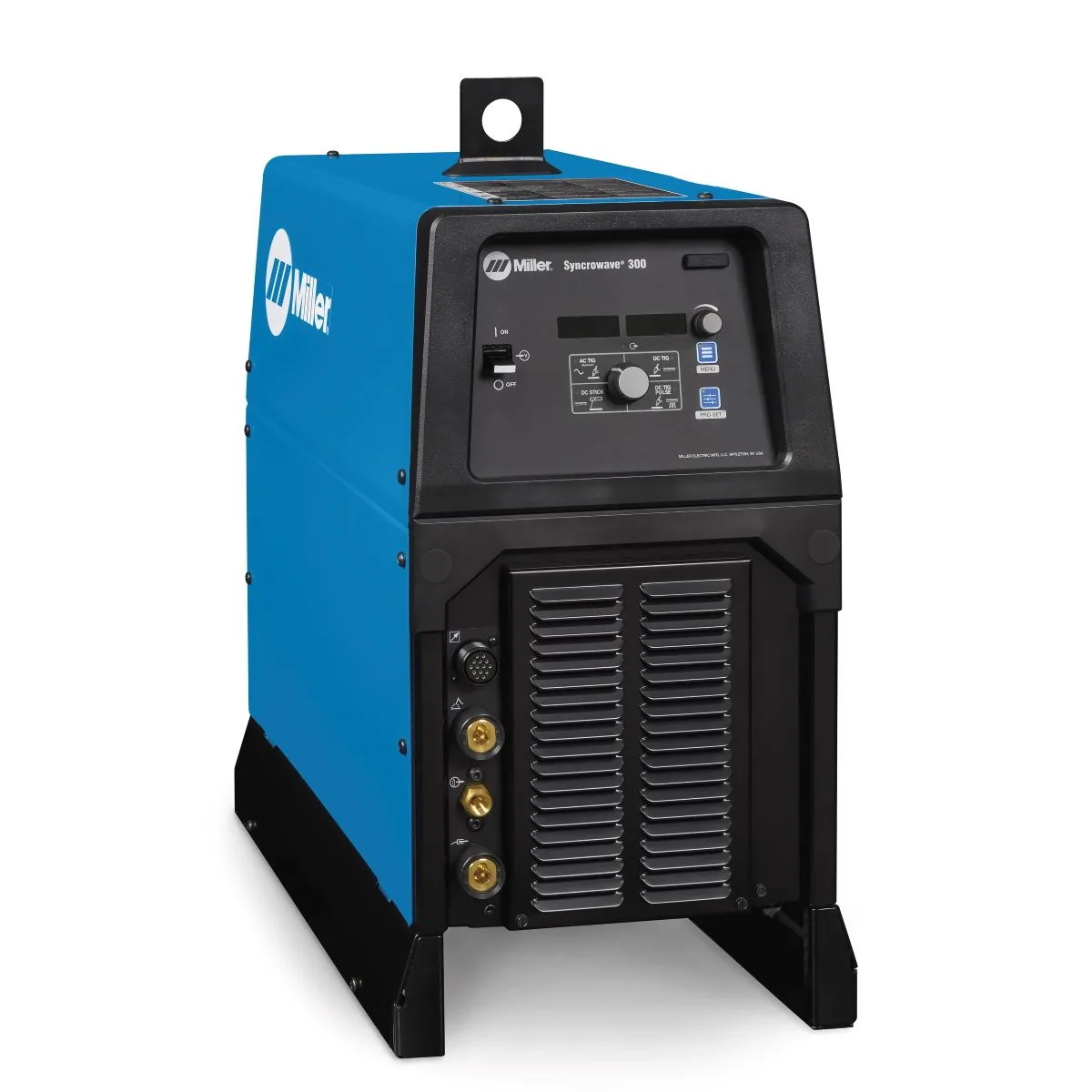

Miller Syncrowave 300 AC/DC TIG Stick Welder – 1-300A Amp Range, P/N 907782

The bare Miller Syncrowave 300 AC/DC TIG Stick welder (P/N 907782) solves industrial manufacturing bottlenecks through multi-voltage Auto-Line power management and complete waveform flexibility. Aluminum boat builders and pressure vessel shops lose productive hours when basic TIG welders lack the duty cycle to complete multi-pass seams without cooling stops. This bare 300-amp industrial inverter power source operates on single-phase or three-phase power from 208V to 600V, delivering laboratory arc stability from 1 amp up to 300 amps on heavy structural sections.

Auto-Line technology accepts primary electrical service across diverse commercial drops, maintaining constant arc voltage during plant power fluctuations. Four specialized AC waveforms allow operators to shape the molten puddle, while independent amplitude control directs extra amperage into the workpiece while lowering current on the tungsten electrode to prevent balling. Wind Tunnel technology routes cooling air across aluminum heatsinks while completely sealing internal circuit boards from conductive grinding grit.

Engine Architecture of Miller Syncrowave 300 (P/N 907782)

- 1-300A Precision AC/DC Output Range: Starts stable arcs down to 1 amp for foil-thin metal and peaks at 300 amps for heavy plate.
- Auto-Line 208V to 600V Power Sensing: Runs on any jobsite power source without changing internal mechanical jumpers.
- Four Specialized AC Waveforms: Tailors arc characteristics with Advanced Square, Soft Square, Sine, and Triangular options.
- Variable AC Frequency 20 to 400 Hz: Pinpoints arc direction in deep root passes, reducing the heat-affected zone on alloy sheets.
- Pro-Set Parameter Setup Feature: Establishes factory-engineered balance and pulse parameters with a single button press.
- Wind Tunnel Technology Cooling: Protects internal circuit boards from airborne metal shavings by directing air through a central duct.

Commercial Utility Stamina & Lifespan

Built for structural manufacturing plants, this bare 300-amp powerhead delivers extreme duty-cycle stamina with low power draw.

- Inverter power conversion draws lower primary current than conventional transformer powerheads, lowering monthly factory utility bills.
- Wind Tunnel isolation prevents conductive iron dust from shorting internal power switches during heavy fabrication shifts.
- Independent AC balance and frequency controls direct heat into the base metal, extending tungsten life and preventing tungsten balling.

Chassis Integration & Industrial Fitment

Measuring 24.75 inches long by 13.75 inches wide and weighing 134 pounds dry, this heavy industrial inverter mounts on factory assembly racks or mobile cylinder carts.

Commercial Warranty & Field Maintenance

- Miller Electric covers the Syncrowave 300 power source with a 3-Year True Blue warranty against electrical component defects.

Blow dry compressed air through the powerhead cooling tunnels every 100 operating hours, check output cable lugs for heat discoloration, and verify secondary lead connections. Order the Miller Syncrowave 300 AC/DC TIG Stick welder from Mulmotor.com for guaranteed factory-fresh units, complete manufacturer warranty coverage, and dedicated commercial equipment support.
