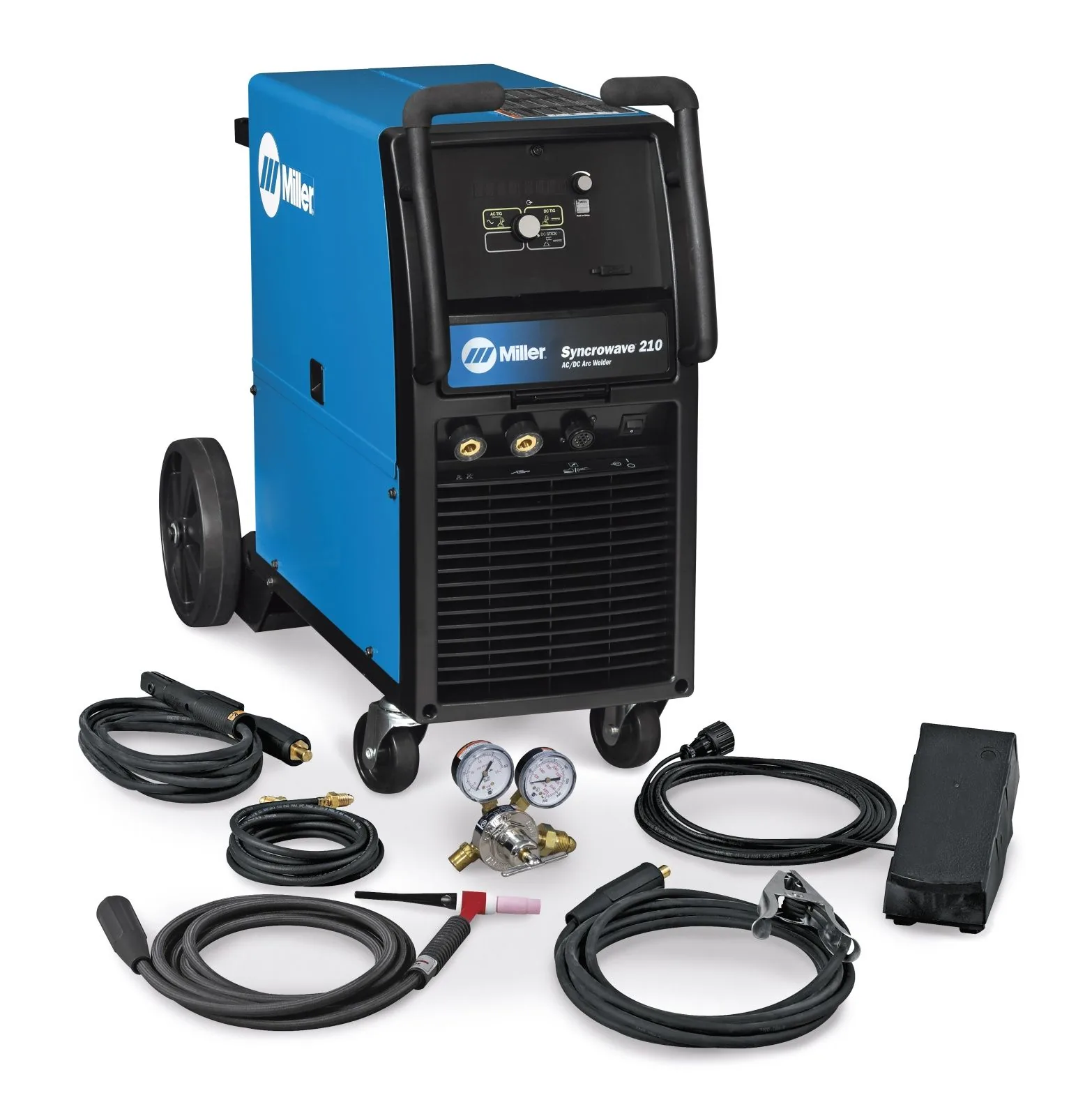

Miller Syncrowave 210 TIG Welder – 5-210A Amp Range, P/N 907596

During continuous 8-hour sheet metal fabrication shifts, the bare Miller Syncrowave 210 TIG welder (P/N 907596) maintains stable AC arc cleaning and root penetration across aluminum and stainless parts. Vocational training shops and maintenance garages face electrical overload trips when running older transformer TIG machines on light utility circuits. This 210-amp AC/DC inverter draws low primary current, utilizing Auto-Line multi-voltage plug technology to operate on 120V or 240V single-phase power lines.

The built-in running gear features large rear wheels and a fold-away front handle, allowing operators to wheel the machine across shop bays with an onboard shielding gas cylinder. High-frequency arc starting ignites the welding arc without tungsten touch contact, keeping weld puddles free of foreign metal inclusions. Pro-Set technology eliminates parameter setup confusion by providing factory-optimized presets for AC balance and pulse parameters with a single button press.

Technical Specifications of Miller Syncrowave 210 (P/N 907596)

- 5-210A Precision AC/DC Output Range: Starts stable arcs down to 5 amps for thin sheet metal up to 1/4-inch plate.
- Auto-Line 120V/240V Power Management: Operates on single-phase electrical lines without manual jumper links.
- High-Frequency Arc Initiation: Ignites the arc without touching tungsten to base metal, preventing weld puddle contamination.
- Pro-Set Automatic Parameter Setup: Activates factory-engineered balance and pulse parameters with a single front button press.
- Built-In Running Gear and Cylinder Tray: Features integrated wheels and storage compartments directly in the base frame.

Heavy-Duty Architecture & Low Maintenance

Built for maintenance garages and vocational training shops, this AC/DC TIG inverter delivers laboratory arc stability with rugged mobility.

- Inverter power conversion draws lower primary current than conventional transformer powerheads, lowering monthly utility bills.
- Built-in running gear frame eliminates aftermarket cart assembly, creating a low-center-of-gravity mobile workstation.
- High-frequency arc starter guarantees clean, inclusion-free weld roots on critical high-pressure stainless piping.

Equipment Integration & Fitment Specs

Weighing 133 pounds dry with an exterior length of 31.5 inches, this mobile TIG machine rolls through standard shop doors and docks neatly along assembly benches.

Commercial Coverage & Maintenance Upkeep

- Miller Electric backs the Syncrowave 210 power source with a 3-Year True Blue warranty covering internal inverter modules.

Maintain peak performance by sharpening 2 percent ceriated or lanthanated tungsten clean, blowing shop dust out of the cabinet every 50 hours, and inspecting gas hose connections. Order the Miller Syncrowave 210 TIG welder from Mulmotor.com for guaranteed factory-fresh units, complete manufacturer warranty coverage, and dedicated commercial equipment support.
