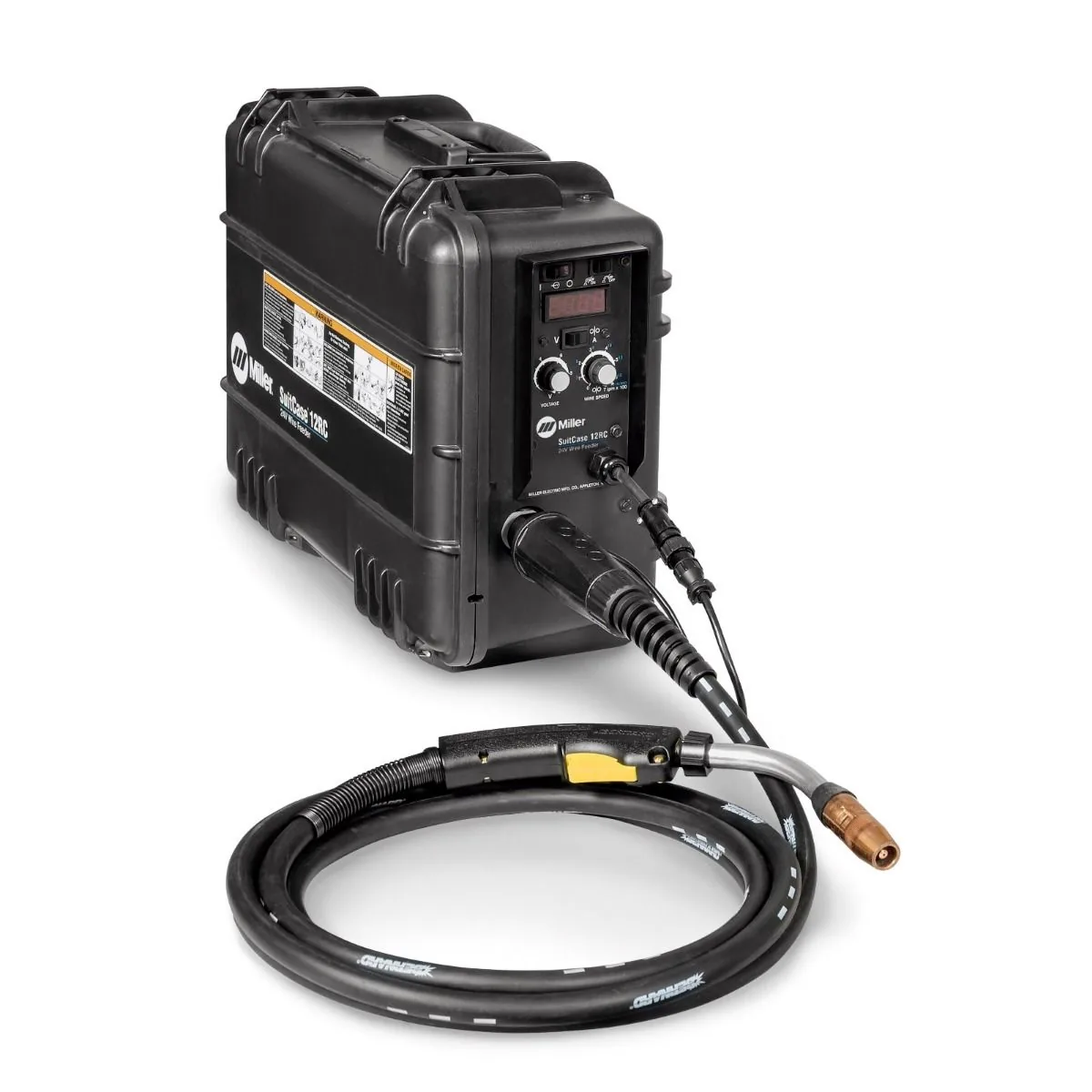

Miller Suitcase 12RC Wire Feeder – P/N 951580

Tackle outdoor structural steel erection with the portable Miller Suitcase 12RC wire feeder (P/N 951580) using a 14-pin control cable connection for remote voltage control. Ironworkers and bridge construction crews face erratic wire feed and gun chatter when operating lightweight suitcase feeders across long cable runs. This heavy-duty suitcase feeder connects to remote-capable power sources through a standard 14-pin control cable, delivering precise voltage and wire feed speed adjustments right at the weld joint.

A heavy-duty four-roll drive mechanism features precision-machined steel gears and dual spring tension arms, feeding 0.035-inch to 5/64-inch solid, cored, and hardfacing wires up to 700 IPM without slippage. A flame-retardant, high-impact polycarbonate case seals out rain, mud, and grinding grit, protecting internal 12-inch wire spools from harsh outdoor jobsite elements. The digital meter displays preset and actual voltage and wire speed, keeping field welds compliant with structural building codes.

Engine Architecture of Miller Suitcase 12RC

- 14-Pin Remote Control Cable Connection: Provides complete remote voltage and wire feed speed regulation at the feeder.
- Heavy-Duty 4-Roll Wire Drive System: Feeds solid and cored wire from 0.035 to 5/64-inch diameter without crushing or slipping.
- High-Impact Weather-Sealed Polycarbonate Case: Protects internal 12-inch 33-pound wire spools from jobsite rain, snow, and mud.
- 50-700 IPM Wire Feed Speed Range: Delivers broad speed regulation to match short-circuit, spray-arc, and flux-cored parameters.
- Internal Gas Purge and Wire Inch Controls: Primes shielding gas lines and threads new wire spools without energizing weld leads.
- Integrated Replaceable Drive Roll Inserts: Permits rapid, tool-free drive roll changes between solid and knurled wire types.

Commercial Advantages & Heavy-Duty Build

Built for structural steel erection and heavy equipment repair, this remote-control suitcase feeder maximizes welder arc-on time.

- Heavy four-roll wire drive maintains uniform feed tension through 15-foot guns, preventing erratic arc stutter and wire burnback.
- Enclosed spool chamber keeps moisture off flux-cored structural wire, preventing hydrogen-induced weld cracking.

Property Clearance & Trailer Packing

Measuring 15.5 inches high by 21 inches long and weighing 35 pounds dry, this portable suitcase feeder fits through standard shipboard manholes and hangs from structural beams.

Warranty Protection & Routine Upkeep

- Miller Electric covers the Suitcase 12RC wire feeder and internal drive assembly with a 3-Year True Blue warranty.

Blow metal dust out of the wire drive compartment weekly, check drive roll alignment pins monthly, and replace internal gun guide tubes when changing wire diameters. Order the Miller Suitcase 12RC wire feeder from Mulmotor.com for guaranteed factory-fresh units, complete manufacturer warranty coverage, and dedicated commercial equipment support.
