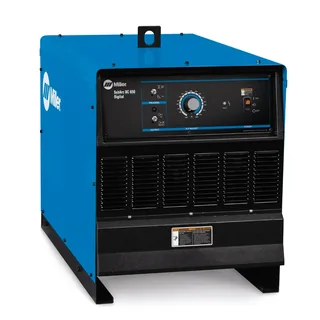

Miller SubArc DC 650 Digital Submerged Arc Welder (907622)

Miller SubArc DC 650 Digital Submerged Arc Welder (907622) are the industry standard for submerged arc welding. Miller offers three different power source options, three interface controls, and a range of wire drive motors and accessories.

Features
• Digital process control technology
• Highly reliable thyristor power regulation
• Digital control improve performance and integration
• Standard Modbus connection
• Thermal overload protection
• Line voltage compensation
• Fan-on demand

Quick Specs
• 3-Phase Only
• Amperage Range: 50-815A in CC mode
• Rated Output: 650A @ 44V, 100% Duty Cycle
• Amperage Draw: 126A @ 230V | 63A @ 460V | 51A @ 575V
• Dimensions: 30″ H x 23″ W x 38″ D
• Weight: 593 lbs

MPN: MIL907622

UPC: 715959600927

Processes Submerged arc (SAW)
Electroslag (ESW)
Air carbon arc cutting
and gouging (CAC-A)

Designed For Shipbuilding
Pipeline
Manufacturing
Railcar
Railcar
Shipbuilding
Heavy fabrication
Pipe manufacturing
Pressure vessel

Amperage 50–815 A
in CC mode

Weldable Metals Stainless Steel
Steel

Input Voltage 220/230/240 V
460/480 V
575 V

Input Phase Requires 3-phase power

Input Hz 60 Hz

Input Phase DC

Rated Output 650 A at 44 V, 100% duty cycle

Max Open Circuit Voltage 650 A at 44 V, 100% duty cycle

Portability Lift Eye (Standard)

Weld Output 650 A at 44 V, 100% duty cycle

Weight 593 lb.
(269 kg)

Warranty True Blue Warranty
