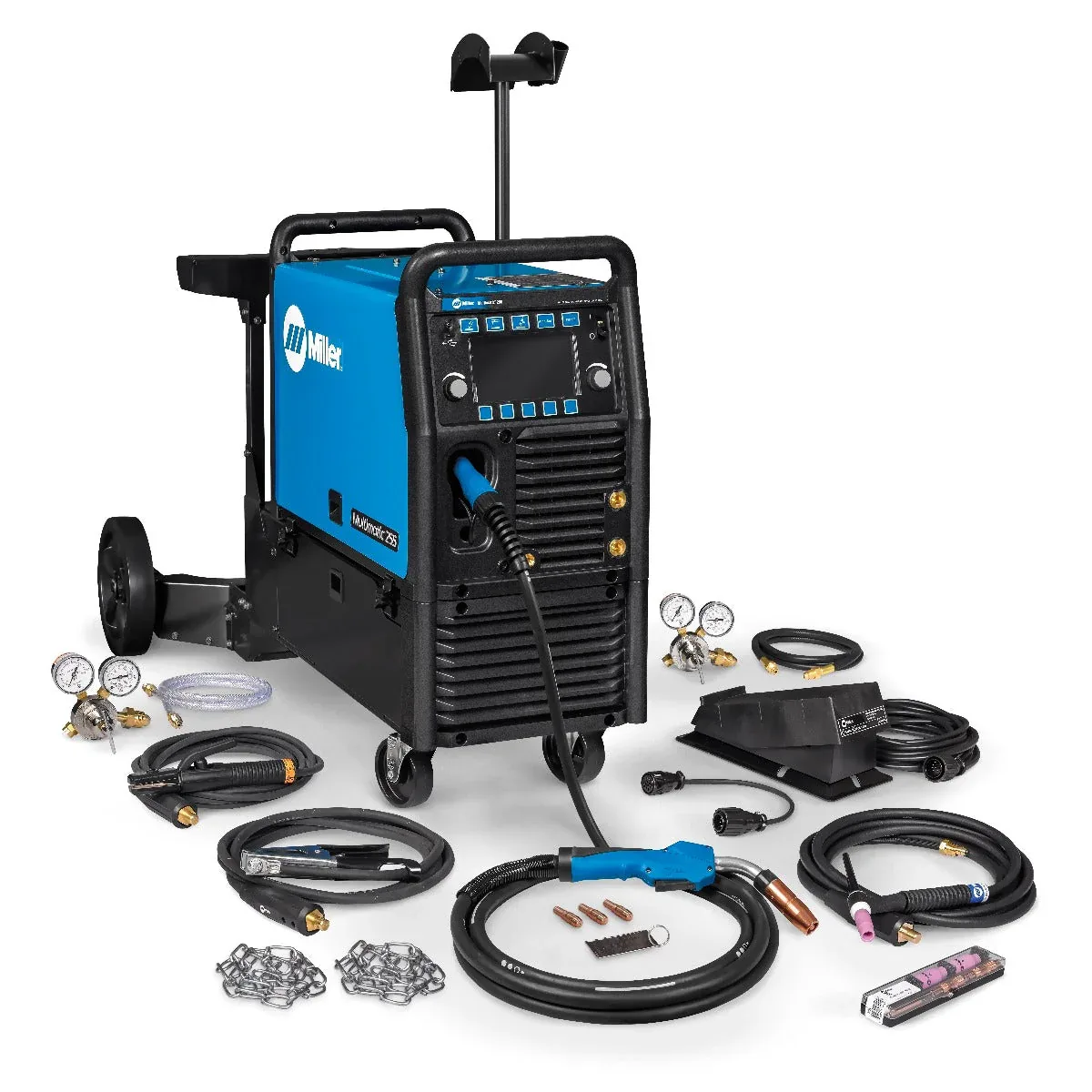

Miller Multimatic 255 Pulsed Multiprocess Welder w/Running Gear and TIG Kit (951768)

Miller Multimatic 255 Pulsed Multiprocess Welder w/Running Gear and TIG Kit (951768) with running gear and TIG kit (951768) is designed for the light manufacturing and fabrication users who want a smaller, versatile workhorse that is easy to setup and easy to use. This 350-amp inverter welder can be integrated on running gear for easy movement around the work area or it can be quickly disconnected from the running gear enabling portability, making it easier to integrate into a work cell or work in confined spaces.

MPN: MIL951768

UPC: 715959671224

Processes Stick (SMAW)TIG DC (GTAW-DC)Flux Cored (FCAW)MIG (GMAW)Multiprocess

Designed For Racing
Farm and Ranch
Auto Repair
Manufacturing
Welding Education and Training
Construction and Fabrication

Amperage 5 A – 350 A

Material Thickness Mild Steel 22 ga. – 1/2 in. (MIG)
Mild Steel 24 ga. – 3/8 in. (TIG)
Mild Steel 16 ga. – 5/16 in. (Stick)
Aluminum 18 ga. – 1/2 in. (MIG)

Weldable Metals Aluminum
Stainless Steel
Steel

Input Voltage 208 V
220/230/240 V
460/480 V
575 V

Input Phase 1-Phase

Input Hz 50/60 Hz

Input Phase DC

Max Open Circuit Voltage 81 VDC

Wire Feed Speed 50–800 ipm
(1.3–20 m/min.)

Portability Handle(s)
Running Gear / Cart

Weld Output CC / CV

Weight 84 lbs

Warranty 3 Years
Miller’s True Blue Warranty
