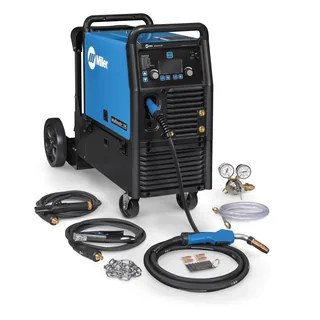

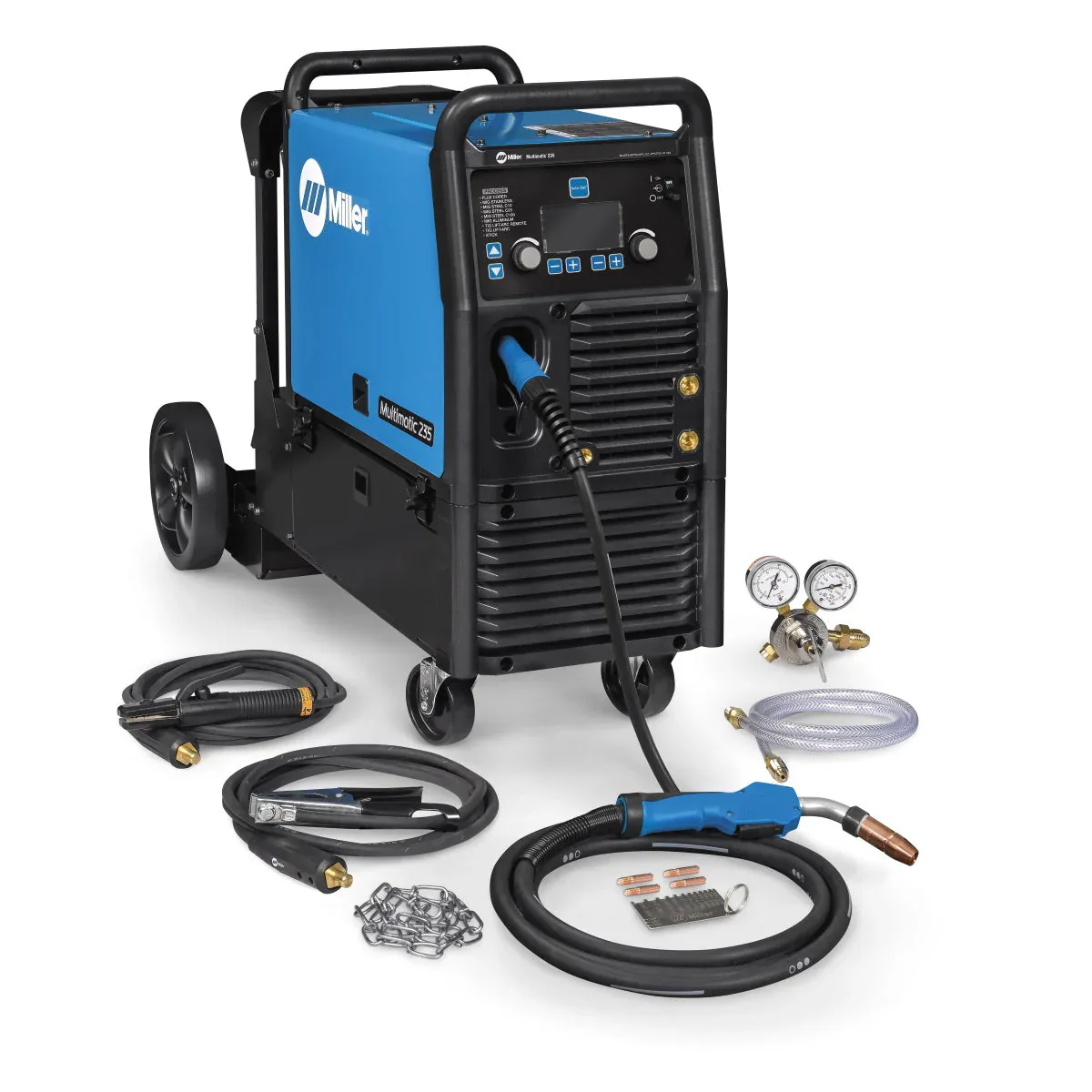

Miller Multimatic 235 Multiprocess Welder w/Running Gear (951846)

Miller Multimatic 235 Multiprocess Welder w/Running Gear (951846) is designed for the light manufacturing and fabrication users who want a smaller, versatile workhorse that is easy to setup and easy to use. This 235-amp inverter welder can be integrated on running gear for easy movement around the work area or it can be quickly disconnected from the running gear enabling portability, making it easier to integrate into a work cell or work in confined spaces.

Easy To Use
• Auto-Set Elite
• 12-Inch Spool Capacity
• Angled Heavy-Duty Aluminum Two Drive-Roll System
• Two Shielding Gas Connections
• 4.3 Inch Color LCD Display

MPN: MIL951846

UPC: 715959684200

Processes Stick (SMAW)TIG DC (GTAW-DC)Flux Cored (FCAW)MIG (GMAW)Multiprocess

Amperage 20 A – 235 A

Material Thickness Mild Steel 24 ga. – 3/8 in. (TIG)
Mild Steel 24 ga. – 3/8 in. (MIG)
Mild Steel 16 ga. – 3/8 in. (Stick)
Aluminum 18 ga. – 3/8 in (MIG)

Weldable Metals Aluminum
Stainless Steel
Steel

Input Voltage 208 V
220/230/240 V

Input Phase 1-Phase

Input Hz 50/60 Hz

Input Phase DC

Rated Output CV: MIG/Flux 170 Amps at 22.5 V, 60% duty cycle
CC: Stick 150 Amps at 26 V, 60% duty cycle
CC: DC TIG 180 Amps at 17.2 V, 60% duty cycle

Max Open Circuit Voltage 54 VDC

Wire Feed Speed 1.5 m/min – 15.2 m/min
60 m/min – 600 m/min

Portability Handle(s)
Running Gear / Cart

Weld Output CC / CV

Weight 63 lbs

Warranty 3 Years
Miller’s True Blue Warranty
