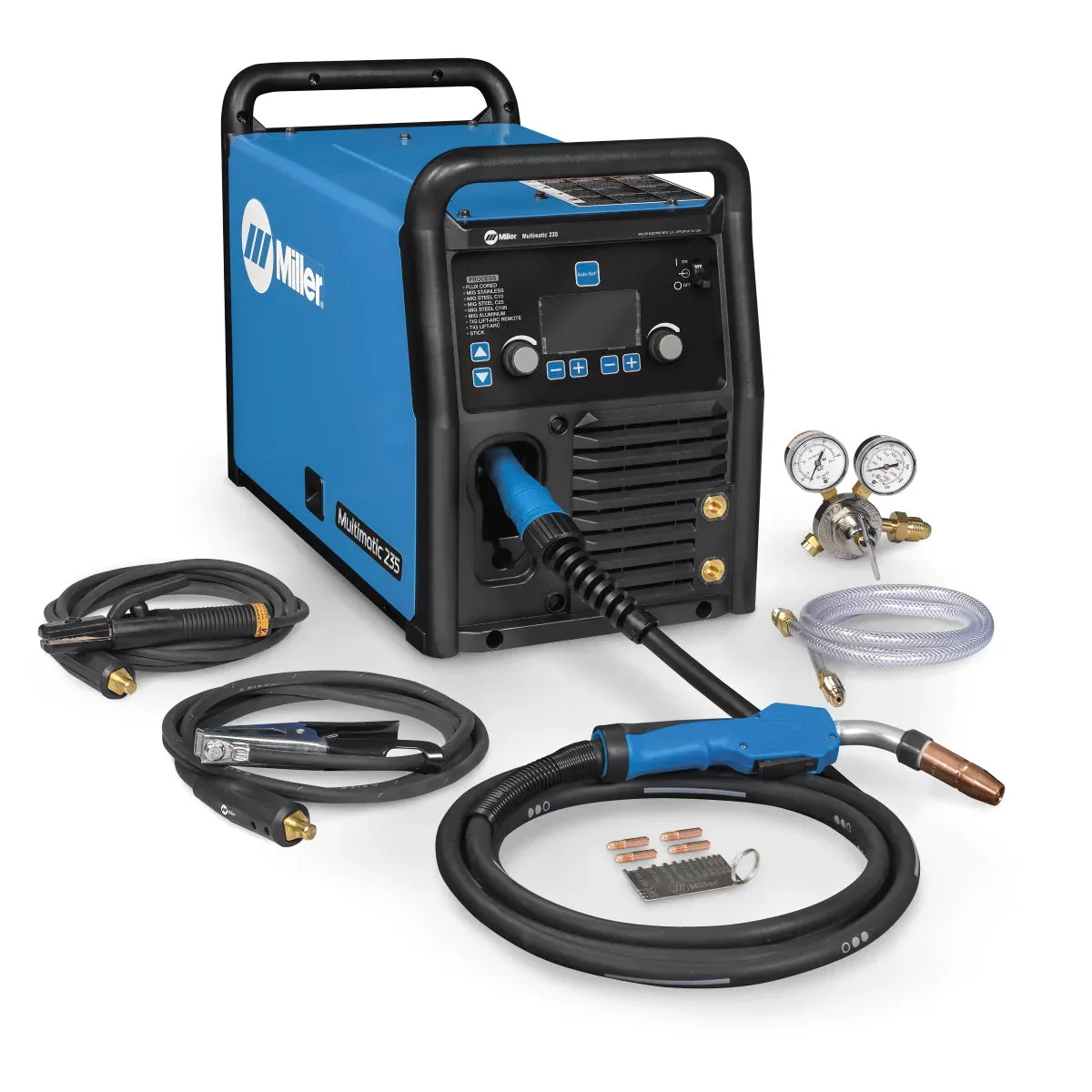

Miller Multimatic 235 Multiprocess Welder (907780)

<p>Miller Multimatic 235 Multiprocess Welder (907780) is designed for the light manufacturing and fabrication users who want a smaller, versatile workhorse that is easy to setup and easy to use. This 235-amp inverter welder can be integrated on running gear for easy movement around the work area or it can be quickly disconnected from the running gear enabling portability, making it easier to integrate into a work cell or work in confined spaces.</p> <p>MPN: MIL907780</p> <p>UPC: 715959684194</p> <p>Processes Stick (SMAW)TIG DC (GTAW-DC)Flux Cored (FCAW)MIG (GMAW)Multiprocess</p> <p>Amperage 20 A – 235 A</p> <p>Material Thickness Mild Steel 24 ga. – 3/8 in. (TIG)<br>Mild Steel 24 ga. – 3/8 in. (MIG)<br>Mild Steel 16 ga. – 3/8 in. (Stick)<br>Aluminum 18 ga. – 3/8 in (MIG)</p> <p>Weldable Metals Aluminum<br>Stainless Steel<br>Steel</p> <p>Input Voltage 208 V<br>220/230/240 V</p> <p>Input Phase 1-Phase</p> <p>Input Hz 50/60 Hz</p> <p>Input Phase DC</p> <p>Rated Output CV: MIG/Flux 170 Amps at 22.5 V, 60% duty cycle<br>CC: Stick 150 Amps at 26 V, 60% duty cycle<br>CC: DC TIG 180 Amps at 17.2 V, 60% duty cycle</p> <p>Max Open Circuit Voltage 54 VDC</p> <p>Wire Feed Speed 1.5 m/min – 15.2 m/min<br>60 m/min – 600 m/min</p> <p>Portability Handle(s)<br>Running Gear / Cart</p> <p>Weld Output CC / CV</p> <p>Weight 63 lbs</p> <p>Warranty 3 Years<br>Miller’s True Blue Warranty</p>
