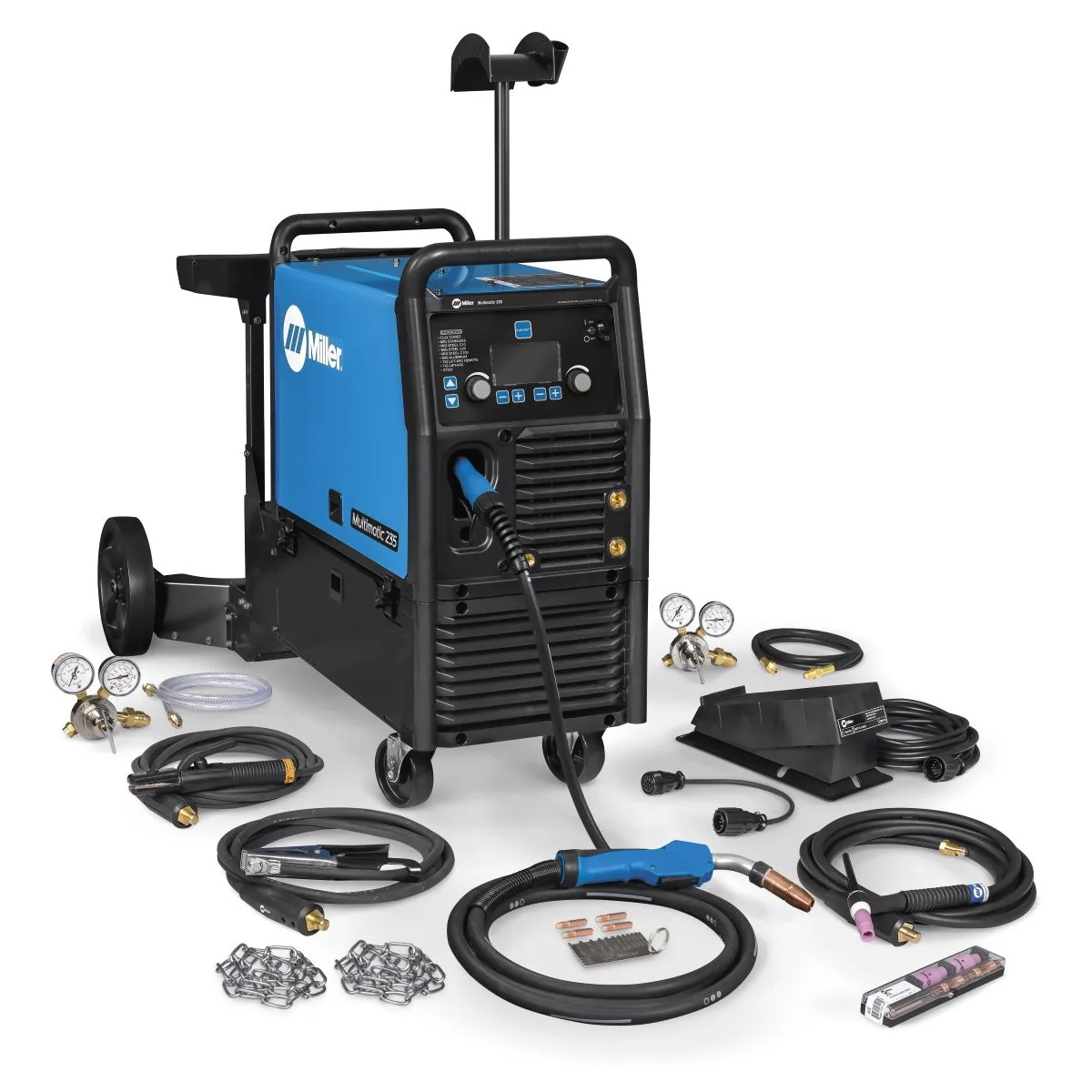

Miller Multimatic 235 Process Welder – 20-235A Amp Range, P/N 951847

Constructed with an EZ-Latch mobile running gear cart, the Miller Multimatic 235 process welder package (P/N 951847) withstands heavy shop transit while feeding full-size 12-inch wire spools. Rolling heavy multi-process machines and high-pressure gas bottles between fabrication bays causes severe operator back strain without dedicated running gear. This complete package bundles the 235-amp multi-process inverter with an EZ-Latch running gear cart, an MDX-250 MIG gun, dual-groove drive rolls, and an industrial gas regulator.

The EZ-Latch running gear unlatches from the powerhead in seconds without tools, allowing crews to separate the cart and lift the 63-pound welder into truck beds for remote field repairs. Auto-Set Elite technology configures optimal arc voltage and wire feed speed across various material thicknesses, while the heavy-duty wire drive feeds 0.030-inch to 0.045-inch wire up to 700 IPM. The heavy-duty cart carries a full-size shielding gas cylinder and features an under-deck storage drawer that holds spare contact tips and nozzles.

Technical Specifications of Miller Multimatic 235 (P/N 951847)

- Complete Mobile EZ-Latch Package: Bundles Multimatic 235, EZ-Latch cart, MDX-250 gun, drive rolls, and gas flowmeter.
- Full-Size 12-Inch Wire Spool Hub: Accepts 33-pound industrial wire spools to lower wire costs and extend production time.
- Tool-Free EZ-Latch Running Gear: Latches and unlatches the powerhead from the cart base in seconds for mobile field transport.
- 20-235A Multi-Process Output Window: Fuses thin sheet metal up to 1/2-inch structural carbon steel plate.
- Auto-Set Elite Setup Programming: Automatically configures parameters based on joint type, wire diameter, and plate thickness.
- Color LCD Control Display: Displays visual parameter charts, setup instructions, and stored welding programs.
- Rated 200A Output at 60% Duty Cycle: Maintains high-deposition spray-arc welding on heavy equipment brackets without overheating.
- All-Metal Four-Roll Drive System: Drives solid steel and flux-cored wire from 50 to 700 IPM without slip.

Operational Reliability in Commercial Service

This mobile multi-process station streamlines operator workflow and lowers power consumption across busy production floors.

- EZ-Latch cart system allows one worker to separate the power source from the cart base, easing truck bed loading without cranes.
- Large 12-inch spool capability cuts wire cost per pound substantially compared to purchasing small 8-inch spools.
- Heavy cast-aluminum drive mechanism feeds solid and tubular wire with consistent tension across full spools.
- Under-deck storage drawer keeps consumables organized, eliminating lost tool time when changing wire diameters.

Machinery Compatibility & Chassis Mounting

The cart base measures 40 inches long by 26 inches wide on its running gear cart, rolling over shop floor grates on large industrial rubber tires.

Warranty Coverage & Preventive Maintenance

- Miller Electric backs the Multimatic 235 power source and EZ-Latch cart with a 3-Year True Blue warranty.
- The MDX-250 MIG gun and gas flowmeter receive 1-Year manufacturer warranty protection.

Execute drive roll groove inspections weekly, blow compressed air through the gun cable liner during wire spool swaps, and replace contact tips when arc stutter appears. Order the Miller Multimatic 235 process welder from Mulmotor.com for guaranteed factory-fresh units, complete manufacturer warranty coverage, and dedicated commercial equipment support.
