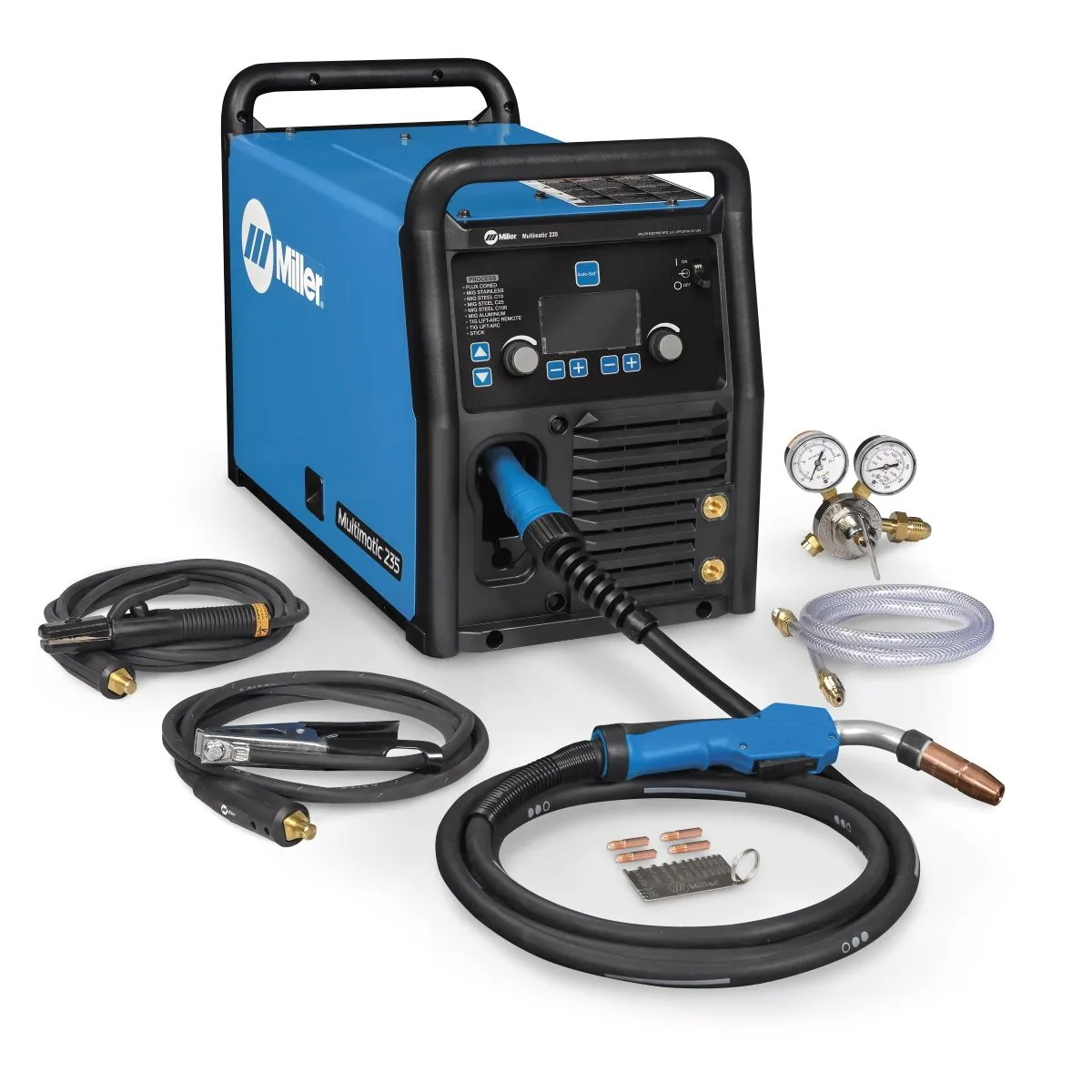

Miller Multimatic 235 Process Welder – 20-235A Amp Range, P/N 907780

The bare Miller Multimatic 235 process welder (P/N 907780) solves workshop multi-metal fabrication bottlenecks through 235 amps of multi-process power and full 12-inch wire spool capacity. Small portable multi-process machines accept only 8-inch spools, forcing production shops to halt work frequently to reload wire. This workshop-class machine accommodates standard 33-pound 12-inch wire spools, delivering 235 amps of MIG, Stick, and DC TIG power at 60 percent duty cycle.

Auto-Set Elite technology configures optimal arc voltage and wire feed speed across various material thicknesses, while manual modes allow fine-tuning of inductance and arc force. The heavy-duty wire drive system pushes 0.030-inch, 0.035-inch, and 0.045-inch solid and flux-cored wires without feed chatter. A color LCD screen guides operators through joint configuration and wire selection, while the heavy steel chassis mounts on existing workshop cylinder carts or assembly benches.

Engine Architecture of Miller Multimatic 235 (P/N 907780)

- 20-235A Workshop Multi-Process Range: Delivers heavy MIG, Flux-Cored, Stick, and DC Lift TIG welding from one cabinet.
- Full-Size 12-Inch Spool Capacity: Accommodates standard 33-pound industrial wire spools to slash wire reloading downtime.
- Rated 200A Output at 60% Duty Cycle: Maintains steady arc deposition on structural steel assemblies without thermal trip cutouts.
- Auto-Set Elite Setup Technology: Automatically configures parameters based on joint type, wire diameter, and plate thickness.
- Color LCD Digital Display: Shows graphic setup guides and parameter readouts for repeat procedure compliance.
- Heavy-Duty All-Metal Wire Drive: Drives solid steel and flux-cored wire from 50 to 700 IPM without slip.

Commercial Utility Stamina & Lifespan

Engineered for high-volume maintenance shops and fabrication facilities, this multi-process inverter provides broad process versatility.

- Large 12-inch spool capability cuts wire cost per pound substantially compared to purchasing small 8-inch spools.
- High duty cycle allows continuous spray-arc deposition on heavy steel weldments without thermal cooling stops.
- All-metal drive system grips flux-cored wire without crushing the tubular sheath, preventing erratic wire feed stutter.

Chassis Integration & Industrial Fitment

Measuring 26.25 inches long by 15.3 inches wide and weighing 63 pounds dry, this workshop-class powerhead mounts on custom shop carts or factory workbenches.

Commercial Warranty & Field Maintenance

- Miller Electric covers the Multimatic 235 power source with a 3-Year True Blue warranty against electrical component defects.

Change drive rolls according to wire size and type, clean the brass gas diffuser monthly, and blow accumulated steel grinding dust from the internal fan tunnels. Order the Miller Multimatic 235 process welder from Mulmotor.com for guaranteed factory-fresh units, complete manufacturer warranty coverage, and dedicated commercial equipment support.
