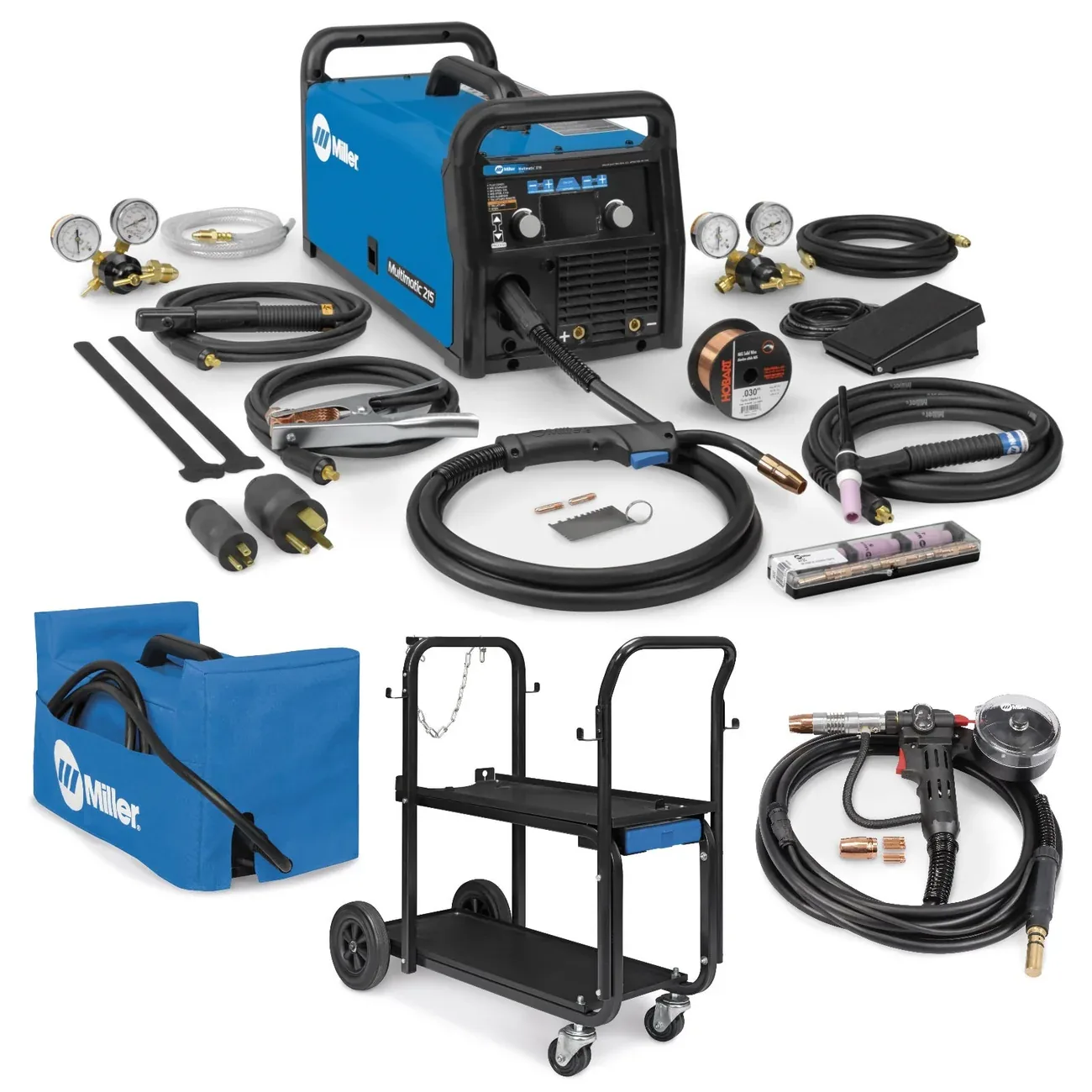

Miller Multimatic 215 Multiprocess Welder Complete Package (907693)

Miller Multimatic 215 Multiprocess Welder Complete Package (907693) has taken the multiprocess welder offering to the next level with the Miller Multimatic 215 Auto-Set Multiprocess Welder with TIG Package (951674). Thanks to the dual solenoid, you can leave your gases for both MIG and TIG hooked up and switching between the two processes is a breeze. You’re going to love the versatility! The Multimatic 215 is based off the same smaller, lightweight footprint of the recent Millermatic machines and will once again return Miller Electric to the dominant position among the multi-process options in the marketplace.

MPN: 907693_301337_301272_301239_301262

UPC: 715959624312

Processes Flux Cored (FCAW)MIG (GMAW)MultiprocessStick (SMAW)TIG DC (GTAW-DC)

Designed For Racing
Farm and Ranch
Welding Education and Training

Amperage 20 A – 230 A

Material Thickness Mild Steel 24 ga. – 3/8 in. (MIG)
Mild Steel 24 ga. -3/16 in. (TIG)
Mild Steel 16 ga. – 3/8 in. (Stick)
Aluminum 18 ga. – 3/8 in (MIG)

Weldable Metals Aluminum
Stainless Steel
Steel

Input Voltage 110/115/120 V
220/230/240 V

Input Phase 1-Phase

Input Hz 50/60 Hz

Input Phase DC

Rated Output (MIG): 110 A at 19.5 V, 60% duty cycle
200 A at 24 V, 20% duty cycle
150 A at 21.5 V, 40% duty cycle

(TIG): 140 A at 15.6 V, 40% duty cycle
190 A at 17.6 V, 20% duty cycle

(STICK): 90 A at 23.6 V, 40% duty cycle
190 A at 27.6 V, 20% duty cycle

Max Open Circuit Voltage 58 VDC

Wire Feed Speed 1.8 m/min – 10.8 m/min
70 IPM – 425 IPM

Wire Diameter Stainless 0.024 in. – 0.035 in.
Stainless 0.6 mm. – 0.9 mm.
Solid Steel 0.6 mm. – 0.9 mm.
Solid Steel 0.024 in. – 0.035 in.
Flux Cored 0.03 in. – 0.045 in.
Flux Cored 0.8 mm. – 1.2 mm.

Spool Size 8 in (203 mm)

Portability Handle(s)
Running Gear / Cart

Weld Output CC / CV

Weight 38 lbs

Warranty 3 Years
Miller’s True Blue Warranty
