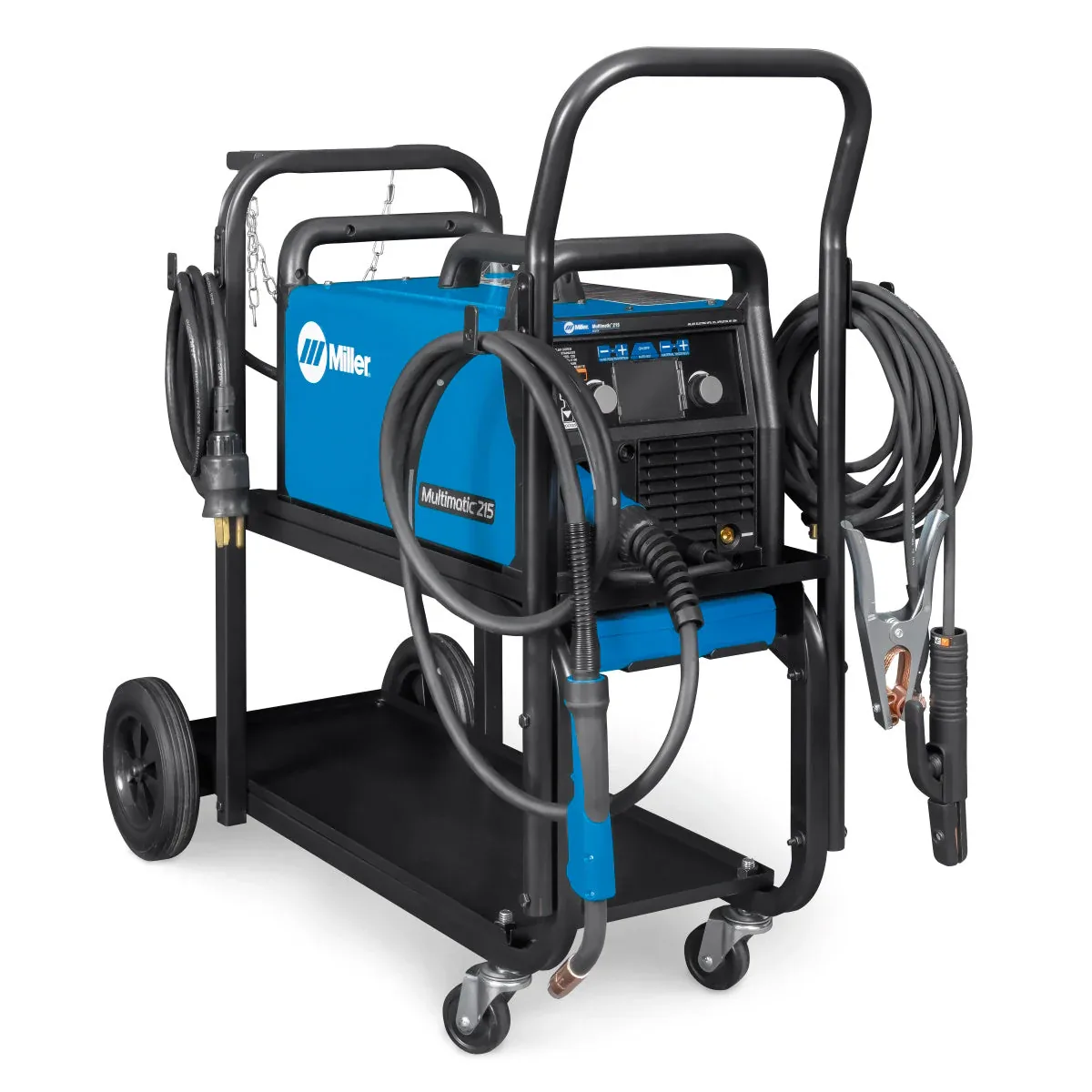

Miller Multimatic 215 Auto-Set Multiprocess Welder w/Cart (951000001)

Miller Multimatic 215 Auto-Set Multiprocess Welder w/Cart (951000001) they don’t just add another toy to the sandbox of options. When Miller Electric comes to market with a new machine, they create a whole new playground! The Miller Multimatic 215 Auto-Set Multiprocess Welder (907693) is the latest offering in Miller’s line of go anywhere, do anything machines. If you’re a fan of Miller machines, you’ll have noticed that they’ve gotten smaller and more powerful in recent years. The Multimatic 215 is based off the same smaller, lightweight inverter-based footprint of the recent Millermatic machines and will once again return Miller Electric to the dominant position among the multi-process options in the marketplace.

MPN: MIL951000001

UPC: 715959702980

Processes Flux Cored (FCAW)MIG (GMAW)MultiprocessStick (SMAW)TIG DC (GTAW-DC)

Designed For Racing
Farm and Ranch
Welding Education and Training

Amperage 20 A – 230 A

Material Thickness Mild Steel 24 ga. – 3/8 in. (MIG)
Mild Steel 24 ga. -3/16 in. (TIG)
Mild Steel 16 ga. – 3/8 in. (Stick)
Aluminum 18 ga. – 3/8 in (MIG)

Weldable Metals Aluminum
Stainless Steel
Steel

Input Voltage 110/115/120 V
220/230/240 V

Input Phase 1-Phase

Input Hz 50/60 Hz

Input Phase DC

Rated Output (MIG): 110 A at 19.5 V, 60% duty cycle
200 A at 24 V, 20% duty cycle
150 A at 21.5 V, 40% duty cycle

(TIG): 140 A at 15.6 V, 40% duty cycle
190 A at 17.6 V, 20% duty cycle

(STICK): 90 A at 23.6 V, 40% duty cycle
190 A at 27.6 V, 20% duty cycle

Max Open Circuit Voltage 58 VDC

Wire Feed Speed 1.8 m/min – 10.8 m/min
70 IPM – 425 IPM

Wire Diameter Stainless 0.024 in. – 0.035 in.
Stainless 0.6 mm. – 0.9 mm.
Solid Steel 0.6 mm. – 0.9 mm.
Solid Steel 0.024 in. – 0.035 in.
Flux Cored 0.03 in. – 0.045 in.
Flux Cored 0.8 mm. – 1.2 mm.

Spool Size 8 in (203 mm)

Portability Handle(s)
Running Gear / Cart

Weld Output CC / CV

Weight 38 lbs

Warranty 3 Years
Miller’s True Blue Warranty
