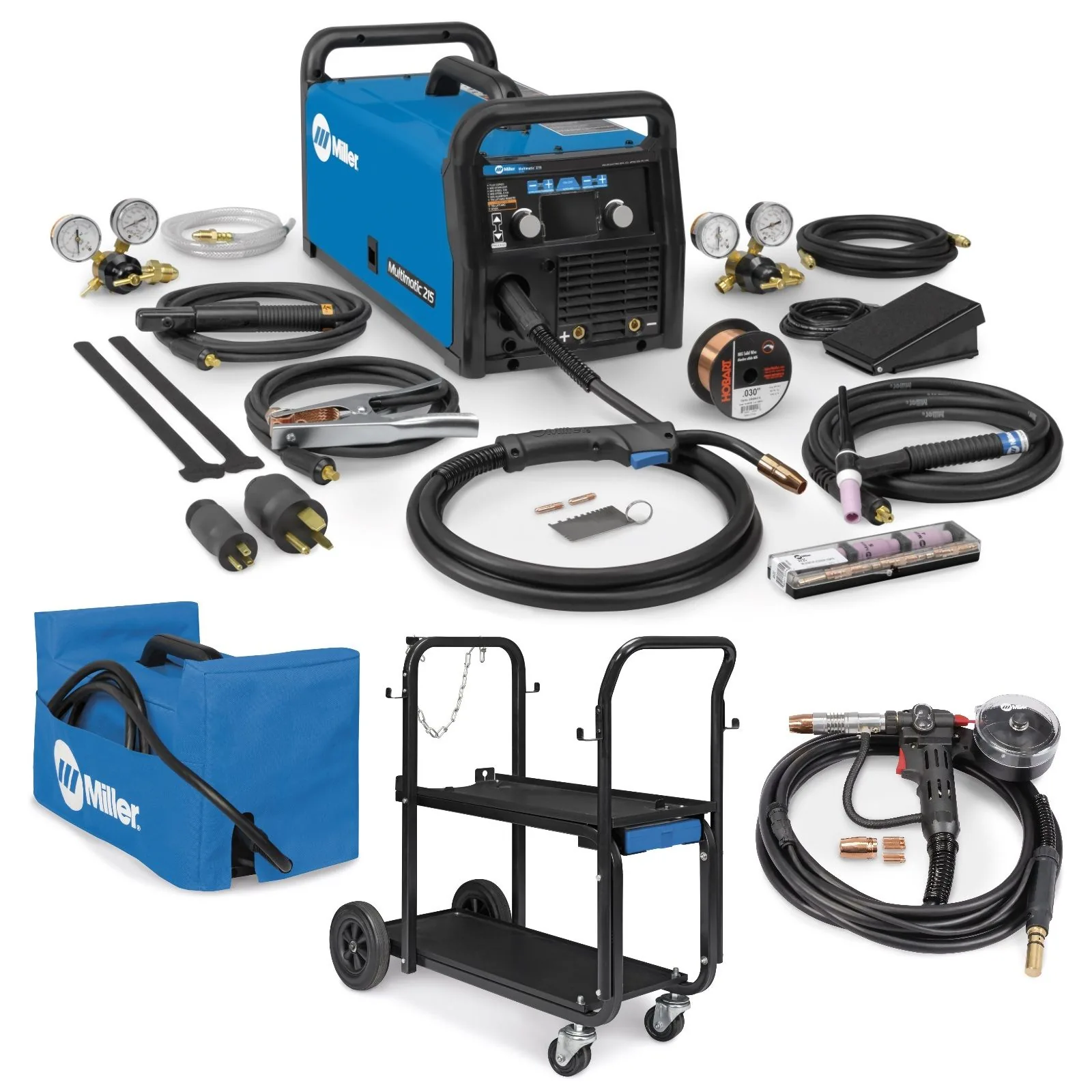

Miller Multimatic 215 Process Welder – 20-230A Amp Range, P/N 907693

Prevent out-of-position weld defects across multi-metal jobs using the Miller Multimatic 215 process welder (P/N 907693) with multi-voltage input and color screen setup. Small mechanical repair shops lose money maintaining separate machines for sheet metal MIG, structural stick, and stainless TIG jobs. This 230-amp multi-process machine incorporates dual-voltage 120V/240V input circuitry, an intuitive color LCD screen, and Auto-Set Elite technology that configures all three welding processes.

Auto-Set Elite technology prompts operators to select metal thickness and electrode diameter, establishing verified parameters for MIG, Stick, and DC TIG in seconds. Dual-voltage MVP plugs allow you to run the machine on 120V household outlets or 240V shop power, outputting up to 230 amps to weld 3/8-inch mild steel. The smooth DC stick arc burns 7018 low-hydrogen electrodes without freezing, while the all-metal wire drive pushes 0.024-inch to 0.035-inch wire without birdnesting.

Key Engineering Features of Miller Multimatic 215 (P/N 907693)

- 20-230A True Multi-Process Output: Handles MIG, Flux-Cored, DC Lift TIG, and Stick welding processes from one compact cabinet.
- Auto-Set Elite Digital Interface: Configures optimal parameters across all three processes based on material thickness input.
- Multi-Voltage Plug (MVP) Versatility: Plugs into standard 120V household lines or 240V industrial drops without tools.
- Color LCD Control Display: Shows graphic setup guides and parameter readouts for repeat procedure compliance.
- All-Metal Dual-Roll Wire Drive: Feeds solid and cored wire from 60 to 600 IPM without slip or wire deformation.
- Rated 200A Output at 20% Duty Cycle: Maintains high deposition rates on heavy equipment repairs and structural assemblies.
- Lightweight 38-Pound Inverter Cabinet: Durable metal housing with side handles allows easy one-man jobsite transport.

Fleet Productivity & Cost of Ownership

Engineered for mobile mechanical contractors and repair shops, this multi-process inverter provides broad process versatility with industrial durability.

- Consolidated 3-in-1 capability eliminates the capital expense and trailer weight of hauling separate welding machines.
- Auto-Set Elite programming speeds up job changeovers, allowing crews to shift from thin sheet metal to heavy plate in seconds.
- Inverter power conversion draws lower primary current than conventional transformer powerheads, lowering monthly utility bills.

Plate Thickness Clearance & Field Portability

Weighing 38 pounds dry with an exterior length of 20.5 inches, this dual-voltage multi-process powerhead fits on maintenance carts and operates on 7,000-watt generators.

Warranty Coverage & Field Maintenance

- Miller Electric covers the Multimatic 215 power source with a 3-Year True Blue warranty against electrical component defects.
- The included MDX-100 MIG gun and stick stinger assembly receive 1-Year manufacturer warranty backing.

Clean cabinet ventilation louvers monthly with dry shop air, inspect drive roll alignment pins, and replace contact tips when arc stability drifts. Order the Miller Multimatic 215 process welder from Mulmotor.com for guaranteed factory-fresh units, complete manufacturer warranty coverage, and dedicated commercial equipment support.
