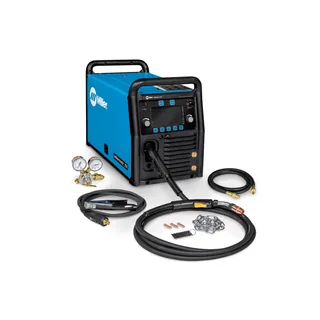

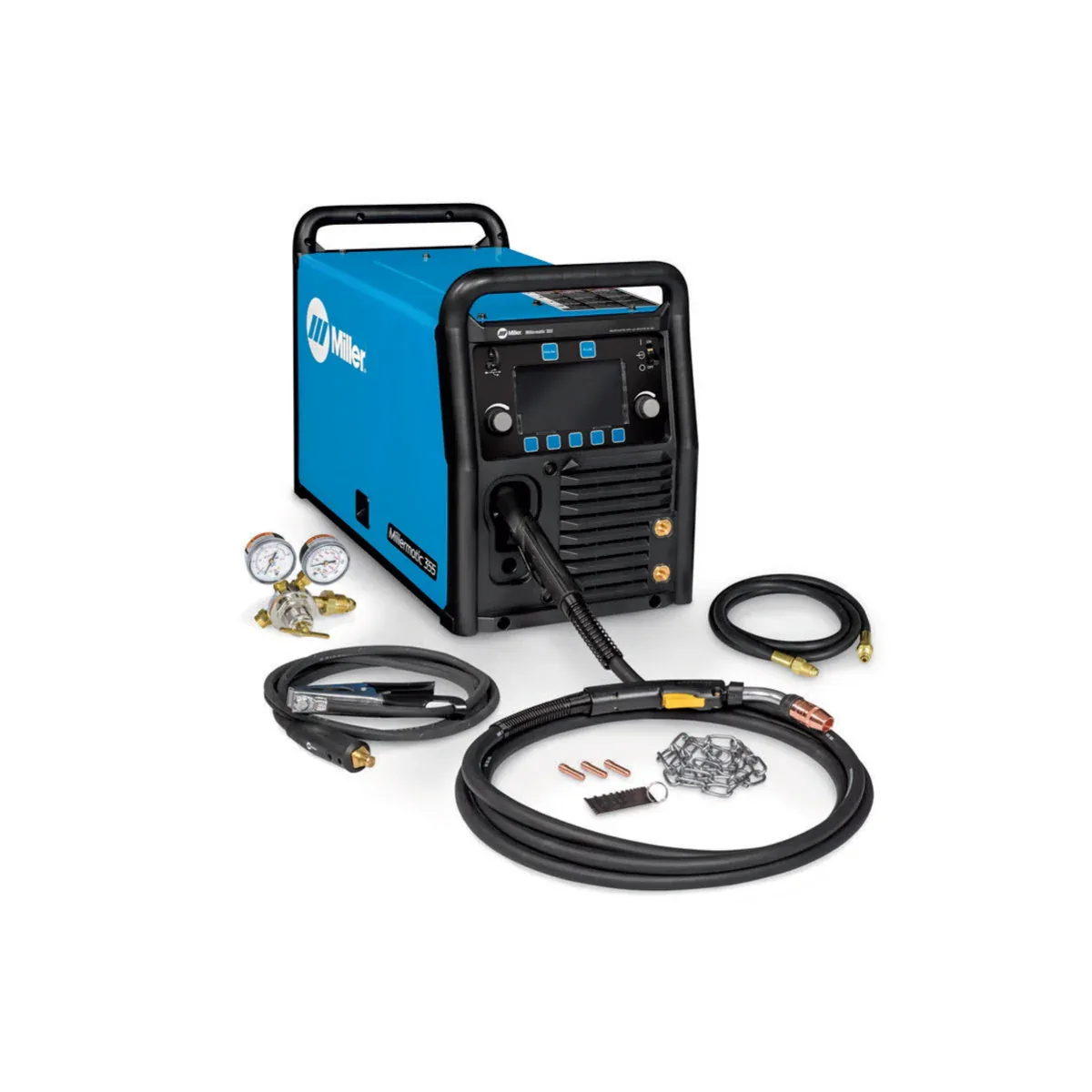

Miller Millermatic 355 Pulsed MIG Welder (907808)

Miller Millermatic 355 Pulsed MIG Welder (907808) is capable of single or three phase power, and carries a 60% duty cycle at 310 amp output. This welder will MIG and pulsed-MIG mild steel, aluminum or stainless from 22 gauge to 1/2 in. thick in a single pass. Advanced features make it easy for welders of any skill level to be productive and get great results.

MPN: MIL907808

UPC: 715959695695

Processes MIG (GMAW)Pulsed MIG (GMAW-P)

Designed For Manufacturing
Welding Education and Training
Construction and Fabrication
Transportation

Amperage 20 A – 400 A

Material Thickness Aluminum 18 ga. (1.2 mm) – 1/2 in. (12.7 mm)
Mild Steel 22 ga. (0.6 mm) – 1/2 in. (12.7 mm)

Weldable Metals Aluminum
Specialty Metals
Stainless Steel
Steel

Input Voltage 208 V
220/230/240 V
460 V
575 V

Input Phase 1- and 3-Phase

Input Hz 60 Hz

Input Phase DC

Rated Output 310 A at 29.5 V, 60% duty cycle

Max Open Circuit Voltage 90 VDC

Wire Feed Speed 1.3 m/min – 20 m/min
50 IPM – 800 IPM

Wire Diameter Aluminum 0.035 in. – 0.047 in.
Aluminum 0.9 mm. – 1.2 mm.
Metal-Core 1.2 mm. – 1.3 mm.
Metal-Core 0.045 in. – 0.052 in.
Stainless 0.023 in. – 0.045 in.
Stainless 0.6 mm. – 1.2 mm.
Solid Steel 0.9 mm. – 1.2 mm.
Solid Steel 0.035 in. – 0.045 in.
Flux Cored 0.035 in. – 0.045 in.
Flux Cored 0.9 mm. – 1.2 mm.
Silicon Bronze 0.030 in. – 0.035 in.
Silicon Bronze 0.8 mm – 0.9 mm.

Spool Size 12 in. (305 mm)

Portability Running Gear / Cart (Standard)

Weld Output CV

Weight 99 lbs

Warranty 3 Year – Miller’s True Blue Warranty
