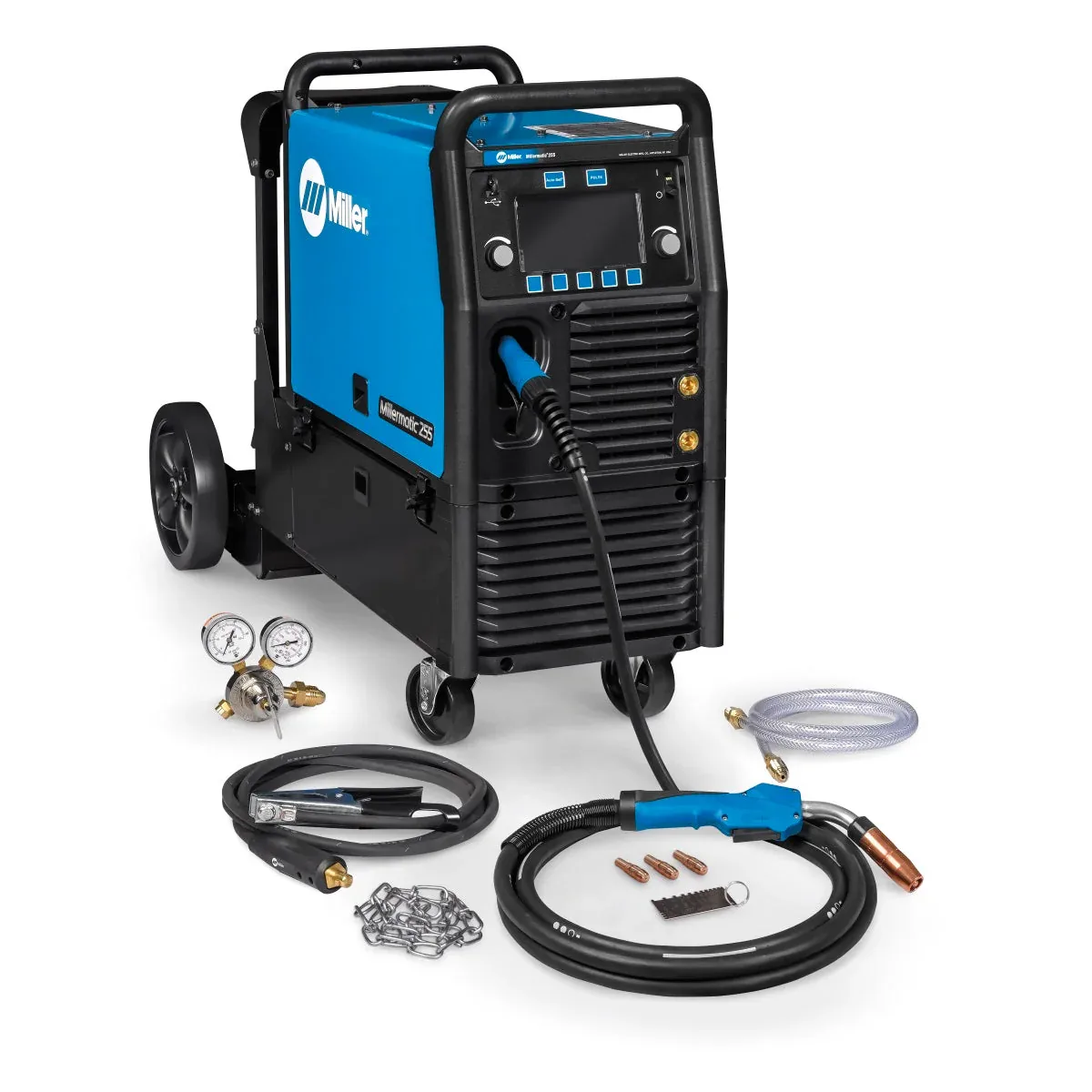

Miller Millermatic 255 MIG/Pulsed MIG Welder- 208/240V with Running Gear (951766)

<p>Miller Millermatic 255 MIG/Pulsed MIG Welder- 208/240V with Running Gear (951766) is designed for the light manufacturing and fabrication users who want a smaller, versatile workhorse that is easy to setup and easy to use. This 250-amp inverter welder can be integrated on running gear for easy movement around the work area or it can be quickly disconnected from the running gear enabling portability, making it easier to integrate into a work cell or work in confined spaces.</p> <p>MPN: MIL951766</p> <p>UPC: 715959668903</p> <p>Processes MIG (GMAW), Pulsed MIG, Flux Cored (FCAW)</p> <p>Designed For Racing<br>Farm and Ranch<br>Auto Repair<br>Manufacturing<br>Welding Education and Training</p> <p>Amperage 20 A – 350 A</p> <p>Material Thickness Aluminum 18 ga. (1.2 mm) – 1/2 in. (12.7 mm)<br>Mild Steel 24 ga. (0.5 mm) – 1/2 in. (12.7 mm)</p> <p>Weldable Metals Aluminum<br>Stainless Steel<br>Steel</p> <p>Input Voltage 208 V<br>220/230/240 V</p> <p>Input Phase 1-Phase</p> <p>Input Hz 50/60 Hz</p> <p>Input Phase DC</p> <p>Rated Output 230 A at 25.5 V, 60% duty cycle</p> <p>Max Open Circuit Voltage 87 VDC</p> <p>Wire Feed Speed 1.3 m/min – 20 m/min<br>50 IPM – 800 IPM</p> <p>Wire Diameter Aluminum 0.035 in. – 0.047 in.<br>Aluminum 0.9 mm. – 1.2 mm.<br>Stainless 0.023 in. – 0.045 in.<br>Stainless 0.6 mm. – 1.2 mm.<br>Solid Steel 0.6 mm. – 1.2 mm.<br>Solid Steel 0.023 in. – 0.045 in.<br>Flux Cored 0.03 in. – 0.045 in.<br>Flux Cored 0.8 mm. – 1.2 mm.<br>Silicon Bronze 0.030 in. – 0.035 in.<br>Silicon Bronze 0.8 mm – 0.9 mm.</p> <p>Spool Size 12 in (305 mm)</p> <p>Portability Handle(s)<br>Running Gear / Cart (Optional)</p> <p>Weld Output CV</p> <p>Weight 84 lbs</p> <p>Warranty 3 Years<br>Miller’s True Blue Warranty</p>
