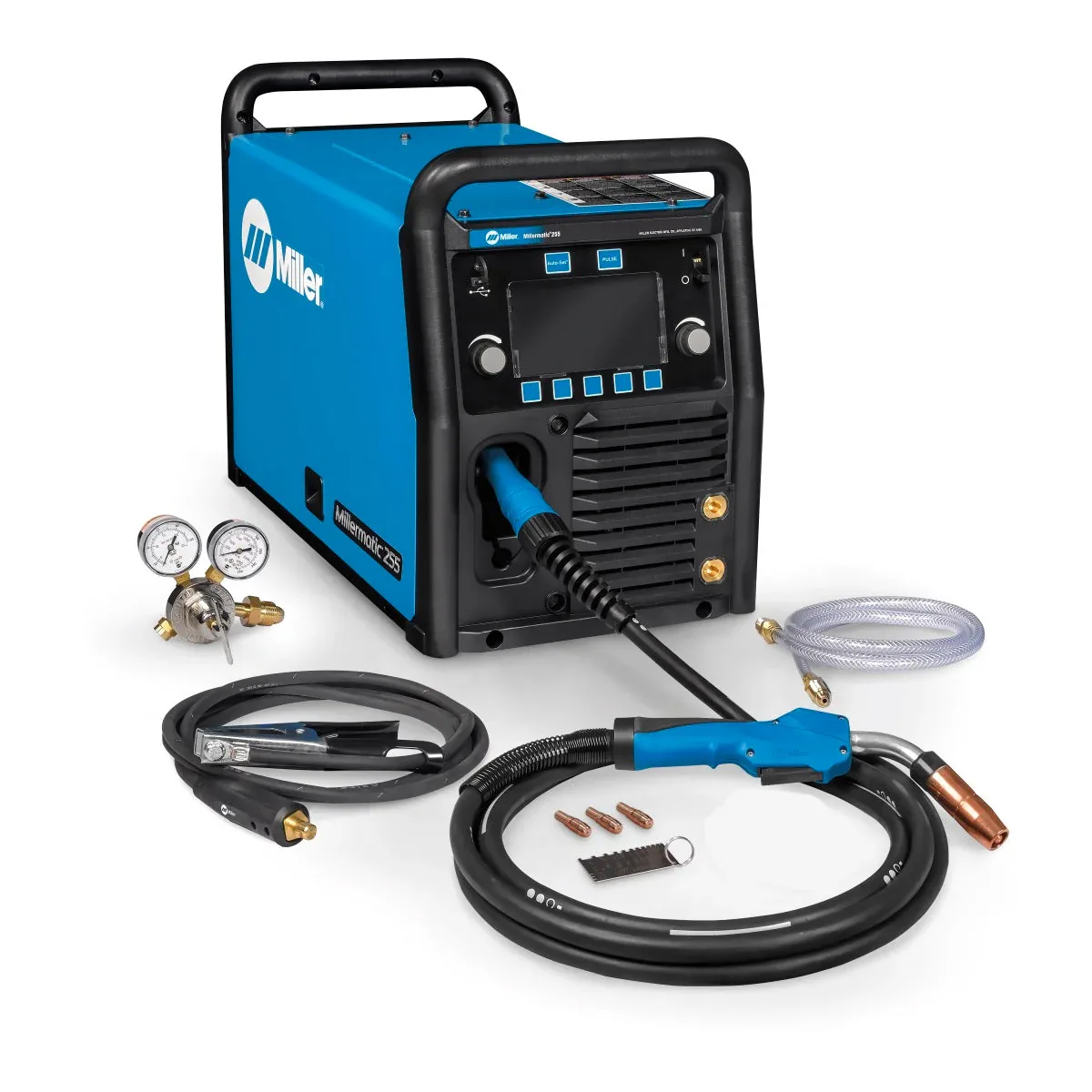

Miller Millermatic 255 MIG/Pulsed MIG Welder- 208/240V (907734)

Miller Millermatic 255 MIG/Pulsed MIG Welder- 208/240V (907734) is designed for the light manufacturing and fabrication users who want a smaller, versatile workhorse that is easy to setup and easy to use. This 250-amp inverter welder can be integrated on running gear for easy movement around the work area or it can be quickly disconnected from the running gear enabling portability, making it easier to integrate into a work cell or work in confined spaces.

MPN: MIL907734

UPC: 715959668873

Processes MIG (GMAW), Pulsed MIG, Flux Cored (FCAW)

Designed For Racing
Farm and Ranch
Auto Repair
Manufacturing
Welding Education and Training

Amperage 20 A – 350 A

Material Thickness Aluminum 18 ga. (1.2 mm) – 1/2 in. (12.7 mm)
Mild Steel 24 ga. (0.5 mm) – 1/2 in. (12.7 mm)

Weldable Metals Aluminum
Stainless Steel
Steel

Input Voltage 208 V
220/230/240 V

Input Phase 1-Phase

Input Hz 50/60 Hz

Input Phase DC

Rated Output 230 A at 25.5 V, 60% duty cycle

Max Open Circuit Voltage 87 VDC

Wire Feed Speed 1.3 m/min – 20 m/min
50 IPM – 800 IPM

Wire Diameter Aluminum 0.035 in. – 0.047 in.
Aluminum 0.9 mm. – 1.2 mm.
Stainless 0.023 in. – 0.045 in.
Stainless 0.6 mm. – 1.2 mm.
Solid Steel 0.6 mm. – 1.2 mm.
Solid Steel 0.023 in. – 0.045 in.
Flux Cored 0.03 in. – 0.045 in.
Flux Cored 0.8 mm. – 1.2 mm.
Silicon Bronze 0.030 in. – 0.035 in.
Silicon Bronze 0.8 mm – 0.9 mm.

Spool Size 12 in (305 mm)

Portability Handle(s)
Running Gear / Cart (Optional)

Weld Output CV

Weight 84 lbs

Warranty 3 Years
Miller’s True Blue Warranty
