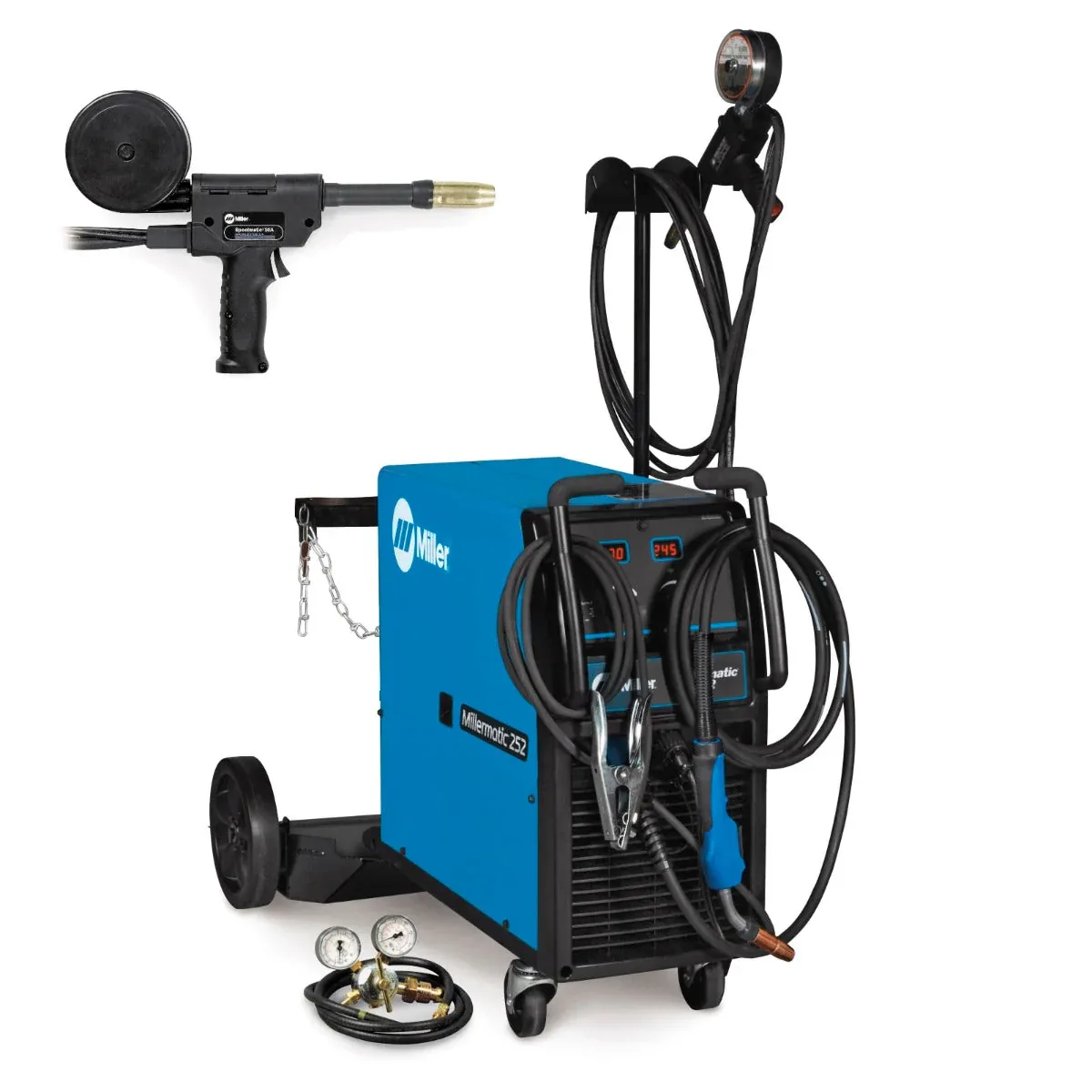

Miller Millermatic 252 MIG Welder With 30A Spool Gun (951960)

Miller Millermatic 252 MIG Welder With 30A Spool Gun (951960) can weld material from 22 gauge to 1/2in thick in a single pass and has the highest output in its class, this package includes a Spoolmatic 30A Gun!

MPN: MIL951960

UPC: 715959696784

Processes Flux-Cored|MIG

Designed For Racing
Farm and Ranch
Manufacturing
Welding Education and Training

Amperage 30 A – 300 A

Material Thickness Aluminum 14 ga. (1.9 mm) – 3/8 in. (9.5 mm)
Mild Steel 22 ga. (0.6 mm) – 1/2 in. (12.7 mm)

Weldable Metals Aluminum
Stainless Steel
Steel

Input Voltage 208 V
220/230/240 V

Input Phase 1-Phase

Input Hz 60 Hz

Input Phase DC

Rated Output 200 Amps at 24 VDC, 60% duty cycle,250 Amps at 26.5 VDC, 40% duty cycle

Max Open Circuit Voltage 38 VDC

Wire Feed Speed 1.3 m/min – 17.8 m/min
50 IPM – 700 IPM

Wire Diameter Stainless 0.023 in. – 0.045 in.
Stainless 0.6 mm. – 1.2 mm.
Solid Steel 0.6 mm. – 1.2 mm.
Solid Steel 0.023 in. – 0.045 in.
Flux Cored 0.03 in. – 0.045 in.
Flux Cored 0.8 mm. – 1.2 mm.

Spool Size 12 in (305 mm)

Portability Running Gear / Cart (Standard)

Weld Output CV

Weight 205 lbs

Warranty 3 Years
Miller’s True Blue Warranty
