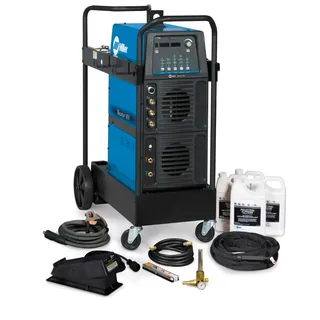

Miller Maxstar 400 DC TIG Welder Complete w/Foot Control (951692)

Miller Maxstar 400 DC TIG Welder Complete w/Foot Control (951692) is a powerful, compact power source capable of welding up to 5/8 inch material. Its high speed pulse control provides maximum productivity and weld quality while conserving energy compared to traditional welding machines.

MPN: MIL951692

UPC: 715959648448

Processes TIG (GTAW)
Pulsed TIG (GTAW-P)
Stick (SMAW)
Air carbon arc (CAC-A)
400: 1/4 in. maximum

Designed For Precision fabrication
Tube mills
Pipe and tube fabrication
Tool and die
Exotic material fabrication
Pressure vessel fabrication
Construction and Fabrication

Amperage 3–400 A

Material Thickness Steel 0.012 in. (0.3 mm) – 5/8 in. (15.9 mm)

Weldable Metals Specialty Metals
Stainless Steel
Steel

Input Voltage 208 V
220/230/240 V
380/400 V
460/480 V
575 V

Input Phase 1- and 3-Phase

Input Hz 50/60 Hz

Input Phase DC

Rated Output 300 A at 32 V, 60% duty cycle

Max Open Circuit Voltage 75 VDC

Portability Lift Eye (Standard)
Running Gear / Cart (Optional)

Weld Output CC

Weight 251 lb.
(114 kg)

Warranty 3 Years
Miller’s True Blue Warranty
