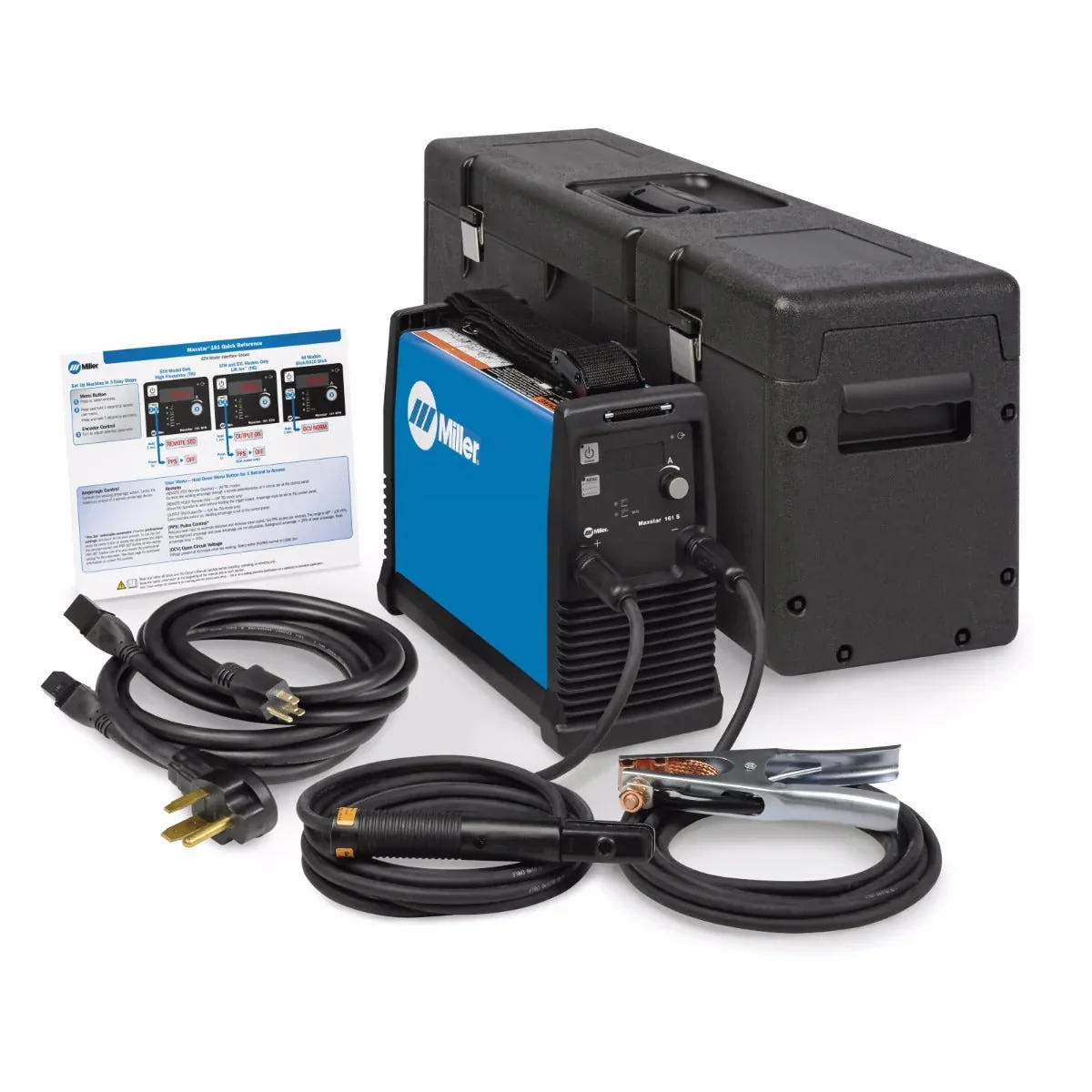

Miller Maxstar 161 S Stick Welder with X-Case (907709001)

<p>Miller Maxstar 161 S Stick Welder with X-Case (907709001) now have a digital interface and feature a greater amperage range than their predecessor Maxstar 150 units. Machine setup is done in 3 easy steps – press the menu button to select your process, then hold the menu button for 1 second to access the user menu. The last step is turning the encoder to adjust your selected parameter.</p> <p>MPN: MIL907709001</p> <p>UPC: 715959645577</p> <p>Processes Stick (SMAW)</p> <p>Designed For Maintenance repair<br>Shipboard installation/repair<br>Farm/ranch<br>Hobbyist</p> <p>Amperage 120 V: 20–90 A (DC)<br>240 V: 20–160 A (DC)</p> <p>Weldable Metals Steel<br>Stainless Steel</p> <p>Input Voltage 110/115/120 V<br>220/230/240 V</p> <p>Input Phase 1-Phase</p> <p>Input Hz 50/60 Hz</p> <p>Input Phase DC</p> <p>Rated Output 60 A at 22.4 VDC, 100% duty cycle<br>90 A at 23.6 VDC, 30% duty cycle<br>110 A at 24.4 VDC, 100% duty cycle<br>160 A at 26.4 VDC, 20% duty cycle</p> <p>Max Open Circuit Voltage 48 VDC</p> <p>Portability Handle(s)<br>Strap</p> <p>Weld Output CC</p> <p>Weight 13 lb. (5.9 kg)</p> <p>Warranty 3 Years<br>Miller’s True Blue Warranty</p>
