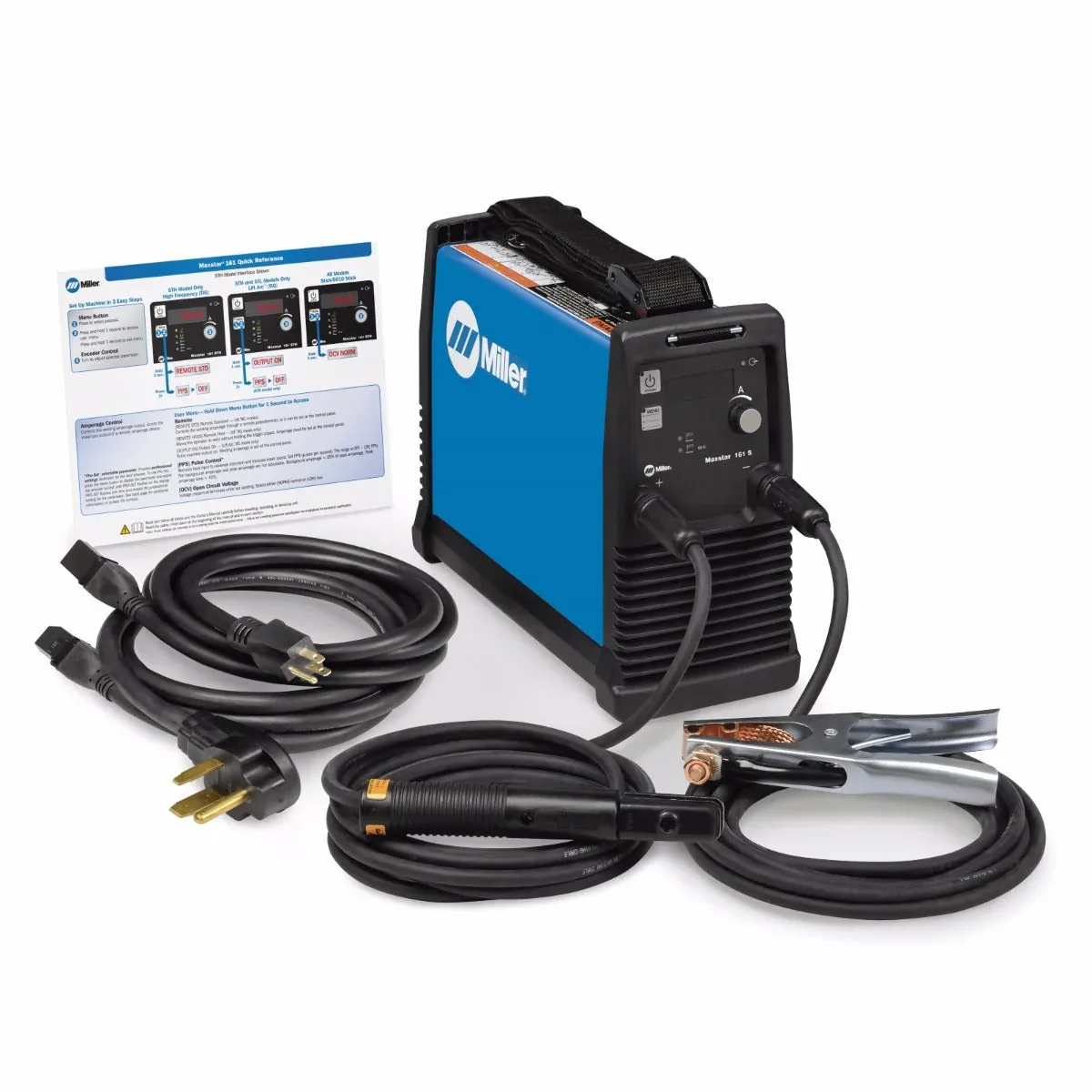

Miller Maxstar 161 S Stick Welder (907709)

Miller Maxstar 161 S Stick Welder (907709) now have a digital interface and feature a greater amperage range than their predecessor Maxstar 150 units. Machine setup is done in 3 easy steps – press the menu button to select your process, then hold the menu button for 1 second to access the user menu. The last step is turning the encoder to adjust your selected parameter.

MPN: MIL907709

UPC: 715959645560

Processes Stick (SMAW)

Designed For Maintenance repair
Shipboard installation/repair
Farm/ranch
Hobbyist

Amperage 120 V: 20–90 A (DC)
240 V: 20–160 A (DC)

Weldable Metals Steel
Stainless Steel

Input Voltage 110/115/120 V
220/230/240 V

Input Phase 1-Phase

Input Hz 50/60 Hz

Input Phase DC

Rated Output 60 A at 22.4 VDC, 100% duty cycle
90 A at 23.6 VDC, 30% duty cycle
110 A at 24.4 VDC, 100% duty cycle
160 A at 26.4 VDC, 20% duty cycle

Max Open Circuit Voltage 48 VDC

Portability Handle(s)
Strap

Weld Output CC

Weight 13 lb. (5.9 kg)

Warranty 3 Years
Miller’s True Blue Warranty
