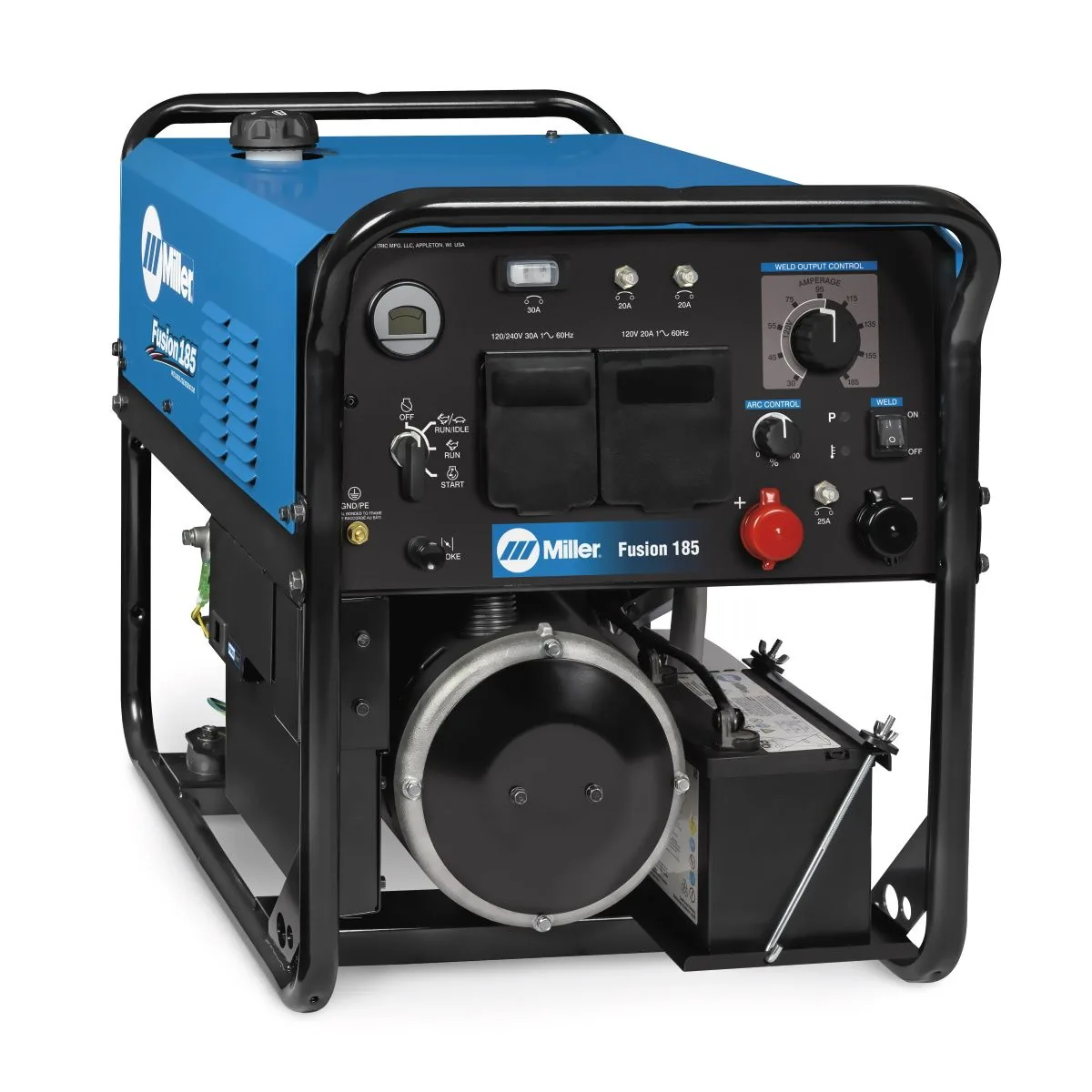

Miller Fusion 185 Kohler Engine Driven Welder Generator – P/N 907781

Tackle remote ranch repairs and equipment field maintenance with the Miller Fusion 185 Kohler engine driven welder generator (P/N 907781) using lightweight inverter PowerShift technology. Mobile service mechanics struggle to load heavy 500-pound engine drives into service trucks without overhead shop hoists. This compact gas-drive unit features PowerShift technology that combines a multi-voltage inverter with an efficient 13.4HP Kohler engine, dropping total dry weight down to an easy-to-handle 222 pounds.

PowerShift technology regulates engine speed automatically based on welding load, running at lower RPM during light stick passes to conserve gasoline and reduce exhaust clatter. The 185-amp DC stick powerhead produces a clean arc that burns 3/32-inch and 1/8-inch 6010, 6011, and 7018 electrodes with deep root penetration. A 6,500-watt peak AC generator outputs clean electricity, running electric power tools, chop saws, and jobsite air compressors without voltage surges.

Engine Architecture of Miller Fusion 185

- Lightweight 222-Pound PowerShift Chassis: Slashes machine weight by over 50 percent compared to traditional gas engine welders.
- 185-Amp Clean DC Stick Output: Burns cellulosic and low-hydrogen electrodes up to 1/8-inch diameter on rusty farm equipment.
- 6,500-Watt Peak / 6,200-Watt Continuous AC: Powers heavy 9-inch grinders and portable air compressors on remote field sites.
- 13.4HP Kohler Command PRO Engine: Reliable single-cylinder powerhead features cast-iron sleeve and automatic low-oil shutdown.
- PowerShift Variable-Speed Engine Control: Adjusts engine RPM automatically to match electrical load, lowering fuel burn.
- Heavy 1-1/4-Inch Steel Tube Roll Cage: Defends engine, fuel tank, and generator components from rough field transit impacts.

Commercial Advantages & Heavy-Duty Build

Built for mobile service mechanics, agricultural maintenance, and ranch repair trucks, this gas-drive welder delivers high portability.

- At only 222 pounds, two workers can lift the machine into pickup beds and utility trailers without truck cranes.
- Pure DC stick welding arc produces deeper penetration and less spatter on painted equipment than alternating current welders.
- PowerShift variable-speed governing cuts gasoline consumption substantially during intermittent welding passes.

Property Clearance & Trailer Packing

Measuring 31.25 inches long by 18.75 inches wide and weighing 222 pounds dry, this compact unit fits crosswise behind pickup truck cabs with room to spare.

Warranty Protection & Routine Upkeep

- Miller Electric backs the Fusion 185 generator and welding powerhead with a 3-Year True Blue warranty.
- Kohler covers the 13.4HP Command PRO engine with a 3-Year commercial engine warranty through authorized dealers.

Change engine oil after the initial 20 run hours, maintain regular 100-hour oil changes with 10W-30 oil, and clean the foam air pre-cleaner monthly on dusty ranch roads. Order the Miller Fusion 185 Kohler engine driven welder generator from Mulmotor.com for guaranteed factory-fresh units, complete manufacturer warranty coverage, and dedicated commercial equipment support.
