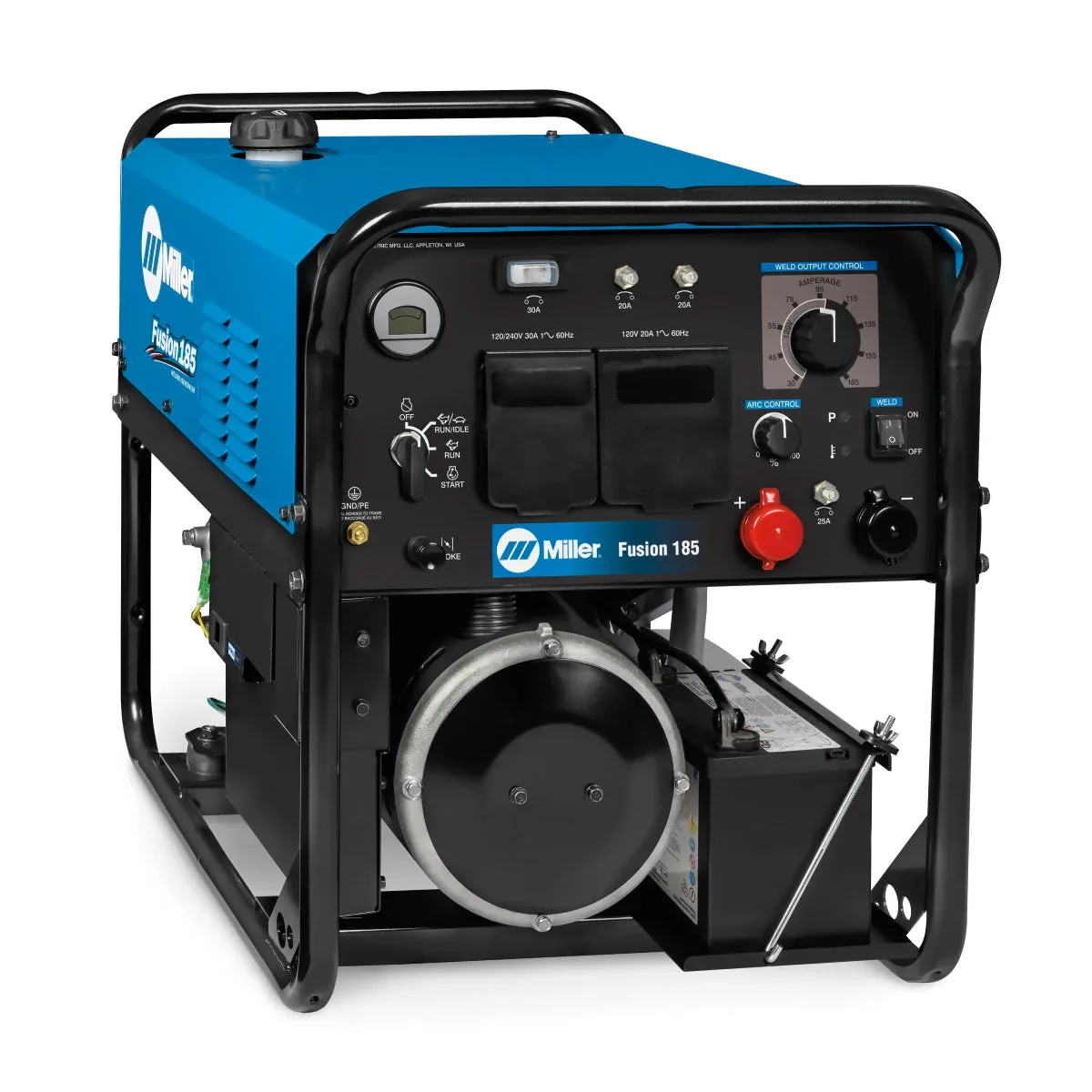

Miller Fusion 185 Welder/Generator w/Electric Start (907781)

Miller Fusion 185 Welder/Generator w/Electric Start (907781) offers the revolutionary “Power Shift” technology whereby the generator can be used on gasoline or 120/240V utility power. Power Shift allows the user to virtually weld anywhere – gasoline powered in the field or switch to outlet power when moving indoors. The MVP (multi-voltage plug) allows the generator to plug into 120V or 240V outlet power.

The Fusion 185 is capable of stick welding and air plasma cutting with the Spectrum 375. This generator features a 6,500 peak watt output, weighs only 222lbs, and electric starting method. This model also includes the recoil start as a backup to the electric start. The Fusion uses inverter technology to deliver a smooth, stable stick arc that’s forgiving of variations in arc length and travel speed.

Features
• Power Shift Technology
• Lightweight (242 lbs)
• 185A DC Output
• Gasoline or 120V/240V Input Power

Quick Specs
• Amperage Range: 30-185A DC
• Duty Cycle: 20% @ 185A, 100% @ 110A
• Engine: Kohler CH440 | 3.4 HP @ 3,600 RPM
• Fuel Capacity: 6.25 Gallons

MPN: MIL907781

UPC: 715959700818

Processes Stick (SMAW)
Air plasma cutting and gouging
with optional Spectrum® models

Designed For Farm and Ranch
Construction and Fabrication
Construction
Maintenance and repair
Farm/ranch applications
Service trucks

Amperage 30 A – 185 A

Weldable Metals Steel

Input Voltage 110/115/120 V
220/230/240 V

Input Phase Peak: 6,500 watts
Continuous: 6,200 watts
120/240 VAC, 40/26 A

Input Phase DC

Rated Output 185 A at 26.4 V, 20% duty cycle 110 A at 24.4 V, 100% duty cycle

Max Open Circuit Voltage 185 A at 26.4 V, 20% duty cycle
110 A at 24.4 V, 100% duty cycle

Portability Lift Eye (Optional)
Running Gear / Cart (Optional)

Weld Output CC

Weight 242 lb. (110 kg)

Warranty 3 Years
Miller’s True Blue Warranty
