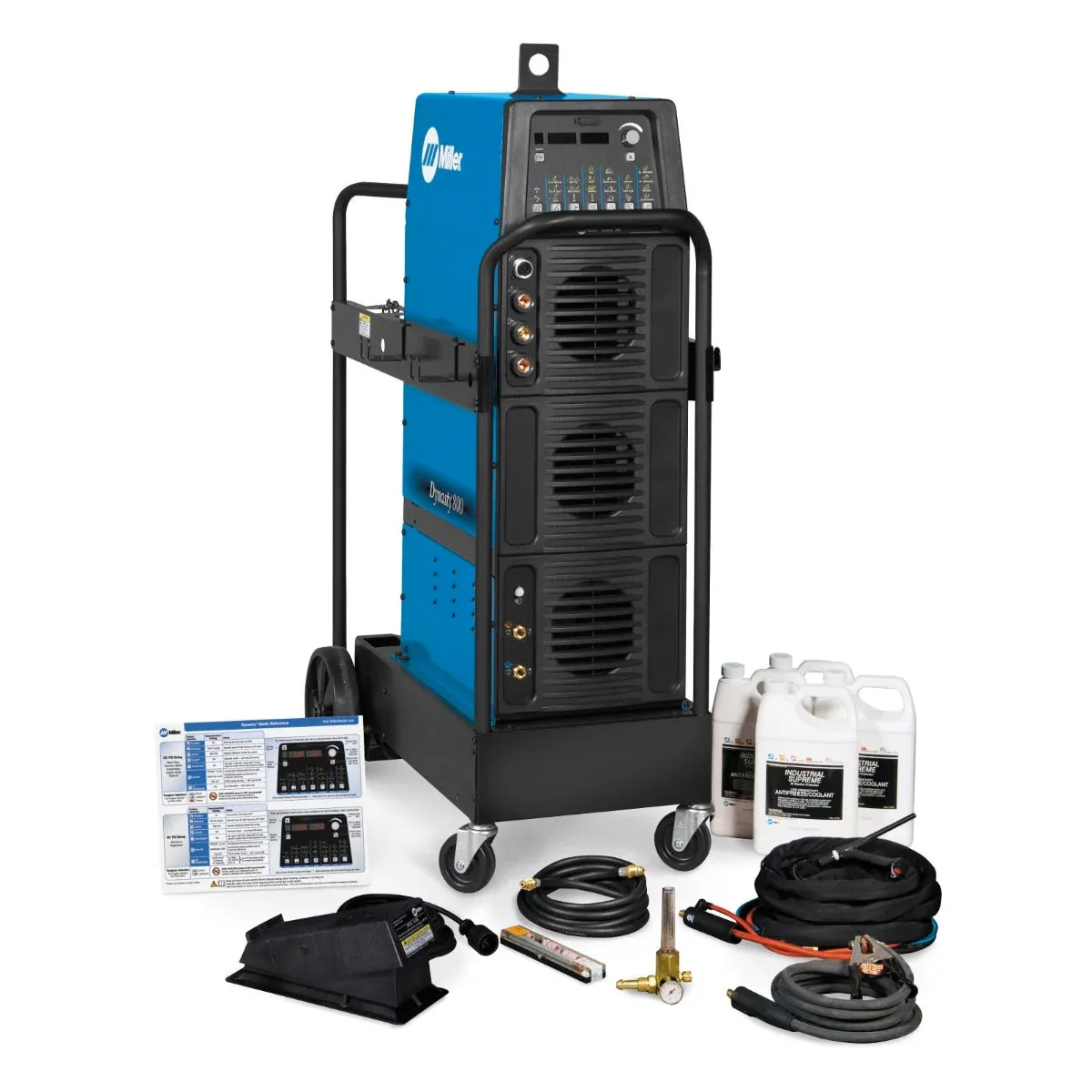

Miller Dynasty 800 TIG Welder and Water-Cooled Package with Foot Control (951696)

<p>Miller Dynasty 800 TIG Welder and Water-Cooled Package with Foot Control (951696) is a powerful, compact power source capable of welding up to 1” aluminum. Total arc control provides maximum productivity and weld quality while conserving energy compared to traditional welding machines.</p> <p>MPN: MIL951696</p> <p>UPC: 715959654210</p> <p>Processes TIG (GTAW)<br>Pulsed TIG (GTAW-P)<br>Stick (SMAW)<br>Air carbon arc (CAC-A): 3/8 in. maximum</p> <p>Designed For Precision fabrication<br>Heavy fabrication<br>Pipe and tube fabrication<br>Aerospace<br>Aluminum ship repair<br>Anodized aluminum fabrication</p> <p>Amperage 5–800 A</p> <p>Material Thickness Aluminum 0.015 in. (0.4 mm) – 5/8 in. (15.9 mm)<br>Steel 0.012 in. (0.3 mm) – 5/8 in. (15.9 mm)</p> <p>Weldable Metals Aluminum<br>Specialty Metals<br>Stainless Steel<br>Steel</p> <p>Input Voltage 208 V<br>220/230/240 V<br>380/400 V<br>460/480 V<br>575 V</p> <p>Input Phase 1- and 3-Phase</p> <p>Input Hz 50/60 Hz</p> <p>Input Phase AC / DC</p> <p>Rated Output 600 A at 44 V, 60% duty cycle</p> <p>Max Open Circuit Voltage 75 VDC</p> <p>Weld Output CC</p> <p>Weight 198 lb. (90 kg)</p> <p>Warranty 3yr Miller’s True Blue Warranty</p>
