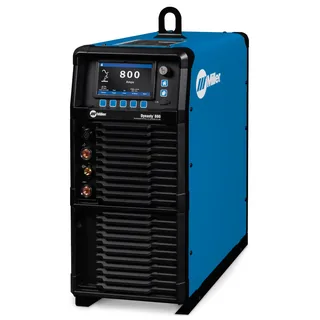

Miller Dynasty 800 TIG Welder (907859)

Miller Dynasty 800 TIG Welder (907859) is a powerful, compact power source capable of welding up to 1” aluminum. Total arc control provides maximum productivity and weld quality while conserving energy compared to traditional welding machines.

MPN: MIL907859

UPC: 715959708388

Processes TIG (GTAW)
Pulsed TIG (GTAW-P)
Stick (SMAW)
Air carbon arc (CAC-A): 3/8 in. maximum

Designed For Precision fabrication
Heavy fabrication
Pipe and tube fabrication
Aerospace
Aluminum ship repair
Anodized aluminum fabrication

Amperage 5–800 A

Material Thickness Aluminum 0.015 in. (0.4 mm) – 5/8 in. (15.9 mm)
Steel 0.012 in. (0.3 mm) – 5/8 in. (15.9 mm)

Weldable Metals Aluminum
Specialty Metals
Stainless Steel
Steel

Input Voltage 208 V
220/230/240 V
380/400 V
460/480 V
575 V

Input Phase 1- and 3-Phase

Input Hz 50/60 Hz

Input Phase AC / DC

Rated Output 600 A at 44 V, 60% duty cycle

Max Open Circuit Voltage 75 VDC

Weld Output CC

Weight 198 lb. (90 kg)

Warranty 3yr Miller’s True Blue Warranty
