Miller Dynasty 800 TIG Welder – 5-800A Amp Range, P/N 951875

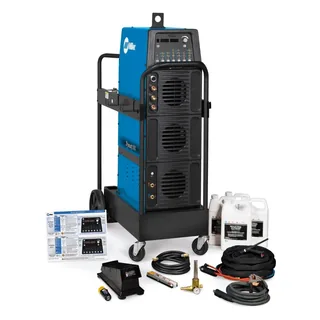

Displacing 800 amps through wireless remote control circuitry, the Miller Dynasty 800 TIG welder package (P/N 951875) eliminates foot pedal cable clutter across sprawling aerospace fabrication cells. Traditional wired foot pedals get crushed under heavy rolling carts and create tripping hazards around large aluminum rocket structures. This flagship industrial package equips your facility with the 800-amp Auto-Line inverter, a wireless foot control pedal, a Coolmate 3.5 water cooler, a water-cooled torch kit, and a heavy four-wheel running gear cart.

The wireless foot control operates up to ninety feet away from the power source without signal delay, giving welders complete amperage adjustment freedom inside large tanks and vessel hulls. The 800-amp powerhead burns continuously at 100 percent duty cycle, allowing non-stop structural TIG passes and carbon arc gouging with 1/2-inch carbon rods. Auto-Line technology senses three-phase voltage automatically, preventing arc fluctuations when adjacent plant machinery draws heavy power.

Technical Specifications of Miller Dynasty 800 (P/N 951875)

- Complete Wireless Water-Cooled Package: Bundles Dynasty 800, wireless foot pedal, Coolmate 3.5 cooler, water torch kit, and cart.
- Wireless Foot Pedal Remote Control: Delivers stepless amperage control up to 90 feet away without fragile floor cords.
- 5-800A Precision Industrial Output: Produces stable low-amperage arcs down to 5 amps for thin sheet metal up to 1-inch plate.
- Coolmate 3.5 Industrial Water Cooler: Circulates coolant through torch leads to eliminate torch handle heat rise during long shifts.
- Rated 800A Output at 100% Duty Cycle: Maintains non-stop high-deposition spray-arc welding on heavy aluminum plate.
- Auto-Line 208V to 575V Power Sensing: Runs on any jobsite power source without changing internal mechanical jumpers.
- Pro-Set Automatic Parameter Configuration: Activates factory-engineered balance and pulse parameters with a single button press.

Fabrication Stamina & Inverter Reliability

Engineered for high-precision aerospace, motorsport, and heavy naval manufacturing, this wireless TIG package maximizes welder comfort and puddle control.

- Wireless foot pedal eliminates cord tripping hazards and stops expensive pedal cable replacements caused by rolling shop carts.
- Auto-Line universal voltage sensing eliminates factory rewiring costs, allowing immediate plug-in on any electrical service.
- High-capacity Coolmate 3.5 water cooler keeps torch handle temperatures cold, extending consumable life during continuous full-shift welding.

Equipment Integration & Fitment Specs

Weighing 260 pounds complete with water cooler and running gear, this mobile industrial station rolls over shop floor grates on large rubber tires.

Commercial Coverage & Maintenance Upkeep

- Miller Electric backs the Dynasty 800 powerhead and Coolmate 3.5 water cooler with a 3-Year True Blue warranty.
- The wireless foot pedal remote assembly and water-cooled torch receive 1-Year manufacturer warranty protection.

Execute tungsten sharpening on dedicated diamond grinding wheels, blow compressed air through the powerhead cooling tunnels every 100 hours, and replace wireless foot pedal batteries annually. Order the Miller Dynasty 800 TIG welder (P/N 951875) from Mulmotor.com for guaranteed factory-fresh units, complete manufacturer warranty coverage, and dedicated commercial equipment support.
