Miller Dynasty 800 TIG Welder – 5-800A Amp Range, P/N 951696

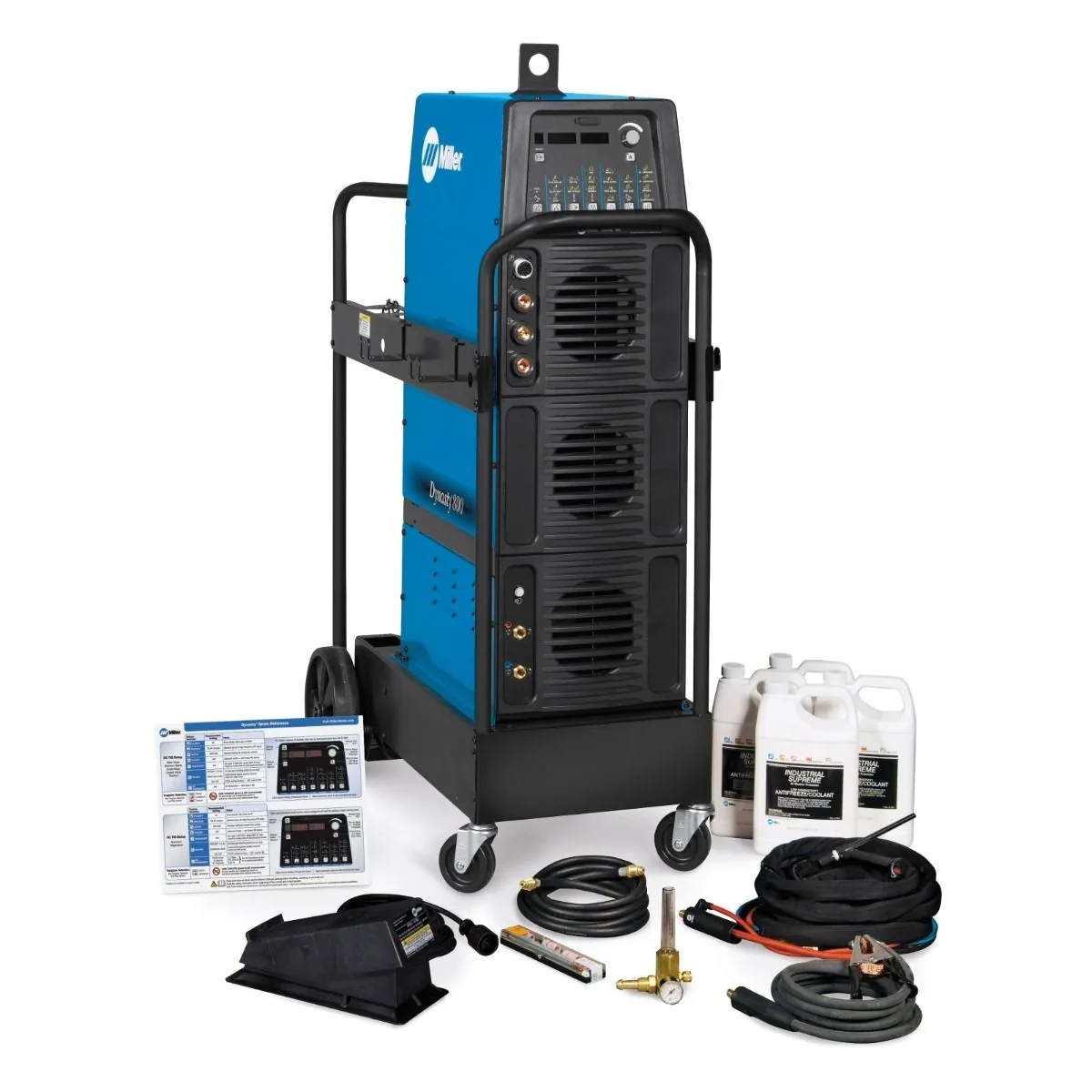

Shipyard fabrication crews relying on the Miller Dynasty 800 TIG welder Runner package (P/N 951696) eliminate torch overheating and mobile transport delays during heavy aluminum welding shifts. Manual TIG welding at 400 to 600 amps generates intense heat that melts air-cooled torches and boils standard water coolers within minutes. This complete Runner package bundles the 800-amp Auto-Line inverter power source with a high-capacity Coolmate 3.5 water cooler, a heavy-duty four-wheel running gear cart, and a cylinder rack.

The Coolmate 3.5 closed-loop water circulator pumps high-flow coolant through torch lines, keeping torch heads cool during continuous multi-pass structural weldments. Auto-Line technology accepts three-phase power from 208V to 575V, holding stable arc voltage across long cable runs. The heavy four-wheel cart accommodates large shielding gas cylinders, allowing fabrication crews to wheel the entire 800-amp welding station across factory floors with ease.

Core Mechanical Specifications of Miller Dynasty 800 Runner

- Complete Water-Cooled Runner Package: Bundles Dynasty 800, Coolmate 3.5 cooler, 4-wheel cart, and gas cylinder rack.
- Coolmate 3.5 High-Capacity Water Cooler: Features a 3.5-gallon reservoir and high-efficiency radiator to dissipate intense torch heat.
- 800A Output at 100% Duty Cycle: Maintains non-stop high-deposition welding on heavy structural aluminum and stainless assemblies.
- Auto-Line 208V to 575V Universal Input: Connects to three-phase industrial electrical drops across manufacturing plants.
- Four Specialized AC Waveforms: Tailors arc characteristics with Advanced Square, Soft Square, Sine, and Triangular options.
- High-Speed Pulse TIG up to 500 Hz: Controls heat input to narrow the heat-affected zone and prevent burn-through on thin alloy sheets.
- Industrial Four-Wheel Cart Platform: Transports the complete welding station and two full-size shielding gas cylinders easily.

Production Efficiency & Reduced Post-Weld Cleanup

This water-cooled TIG station gives industrial production shops continuous high-amperage arc operation without thermal handling limits.

- Water cooling keeps torch neck parts cool, extending copper collet and gas lens consumable life under high duty cycles.
- Integrated cart platform carries all cables, hoses, and gas cylinders, eliminating tangled leads around welding tables.
- Dual high-speed cooling fans protect internal inverter modules from heat breakdown during full-shift production runs.

Material Capacities & Workshop Integration

The cart base measures 48 inches long by 32 inches wide, creating a mobile workstation that positions the digital controls at natural operator height for fast adjustments.

Factory Warranty Terms & Consumable Care

- Miller Electric backs the Dynasty 800 powerhead and Coolmate 3.5 water cooler with a 3-Year True Blue warranty.

Check water cooler reservoir levels weekly with approved low-conductivity coolant, flush cooling channels annually, and clean wire drive rolls with a nylon brush. Order the Miller Dynasty 800 TIG welder (P/N 951696) from Mulmotor.com for guaranteed factory-fresh units, complete manufacturer warranty coverage, and dedicated commercial equipment support.
