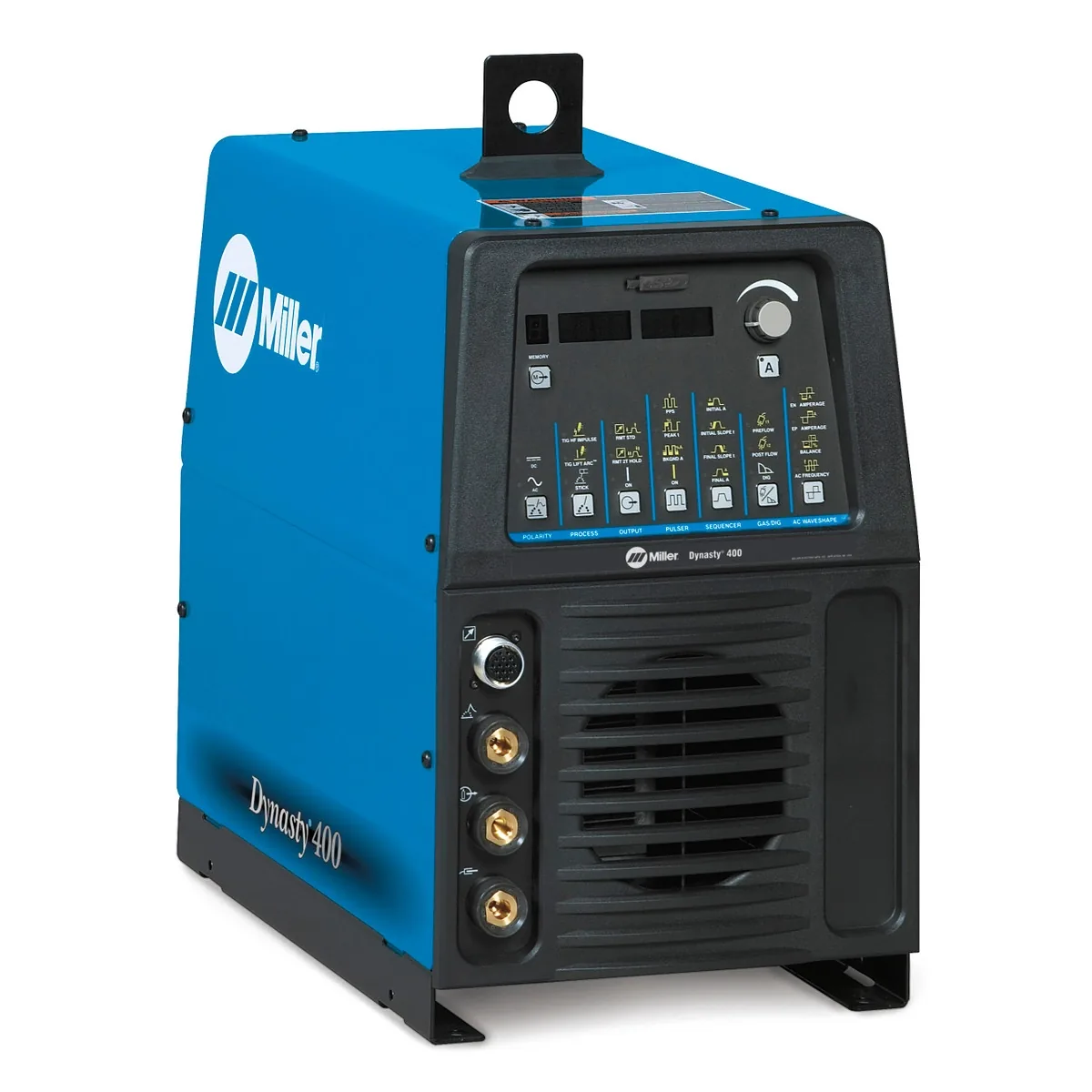

Miller Dynasty 400 TIG Welder – 3-400A Amp Range, P/N 907717

The bare Miller Dynasty 400 TIG welder (P/N 907717) solves heavy industrial aluminum fabrication bottlenecks through massive 400-amp power output at 100 percent duty cycle on three-phase lines. Heavy aerospace structures and military armor plating require non-stop high-amperage TIG welding that burns out smaller 200-amp and 300-amp powerheads. This 400-amp industrial inverter operates on single-phase or three-phase power from 208V to 575V, delivering laboratory arc stability from 3 amps up to 400 amps on heavy structural sections.

Auto-Line technology accepts primary electrical service across diverse commercial drops, maintaining constant arc voltage during plant power fluctuations. Four specialized AC waveforms allow operators to shape the molten puddle, while independent amplitude control directs extra amperage into the workpiece while lowering current on the tungsten electrode to prevent balling. Wind Tunnel technology routes cooling air across aluminum heatsinks while completely sealing internal circuit boards from conductive grinding grit.

Engine Architecture of Miller Dynasty 400 (P/N 907717)

- 3-400A Heavy Industrial Output Range: Fuses delicate 3-amp aerospace sensors up to 5/8-inch structural aluminum plate.
- Heavy Industrial 100% Duty Cycle at 400A: Delivers non-stop welding current on heavy aluminum fabrications without cooling stops.
- Auto-Line Universal 208V to 575V Input: Connects to single-phase or three-phase shop power lines without internal reconnection jumpers.
- Independent AC Amplitude Controls: Adjusts electrode negative and electrode positive amperage independently for deep penetration.
- Variable AC Frequency 20 to 400 Hz: Pinpoints arc direction in deep root passes, reducing the heat-affected zone on alloy sheets.
- Four Tailored Waveform Options: Selects Advanced Square, Soft Square, Sine, or Triangular waves to match specific metallurgical demands.

Commercial Utility Stamina & Lifespan

Built for structural manufacturing plants, this bare 400-amp powerhead delivers extreme duty-cycle stamina with low power draw.

- Massive 400A output at 100 percent duty cycle burns continuously, slashing fabrication hours on heavy naval superstructures.
- Inverter power conversion draws lower primary current than conventional transformer powerheads, lowering monthly factory utility bills.
- Wind Tunnel isolation prevents conductive iron dust from shorting internal power switches during heavy fabrication shifts.

Chassis Integration & Industrial Fitment

Measuring 24.75 inches long by 13.75 inches wide and weighing 134 pounds dry, this heavy industrial inverter mounts on factory assembly racks or mobile cylinder carts.

Commercial Warranty & Field Maintenance

- Miller Electric covers the Dynasty 400 power source with a 3-Year True Blue warranty against electrical component defects.

Clean internal cooling passages every 100 hours with dry shop air, verify secondary cable connection tightness, and check primary electrical connections annually. Order the Miller Dynasty 400 TIG welder from Mulmotor.com for guaranteed factory-fresh units, complete manufacturer warranty coverage, and dedicated commercial equipment support.
